GCS-3

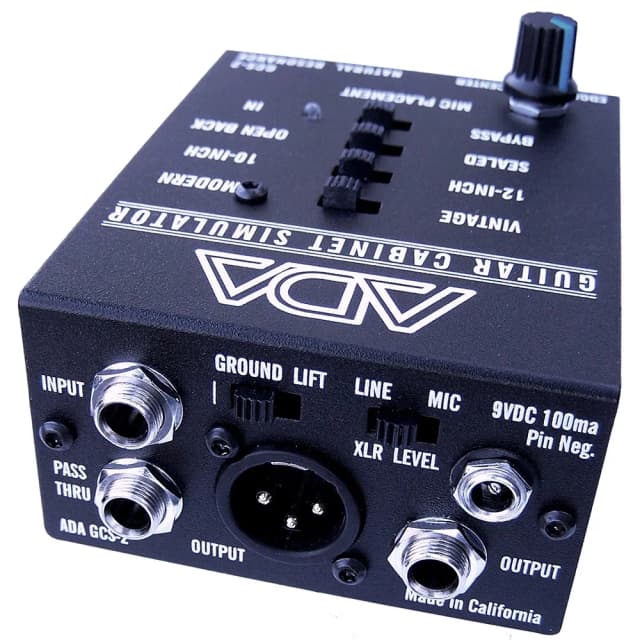

GCS-2

The A/DA GCS-2 is a guitar cabinet simulator and DI box designed for guitar players and sound engineers seeking high-quality analog solutions for live sound reinforcement systems, stage monitors, and recording electric guitar. It replicates the low-frequency natural resonance of a guitar speaker cabinet at loud volumes, particularly noticeable in the sealed cabinet configuration. Key Specifications: \- Selectable 10” or 12” Speaker Size \- Selectable VINTAGE (Alnico) or MODERN (Ceramic) Speaker Character \- Selectable OPEN BACK or SEALED Cabinet Type \- Variable MICROPHONE PLACEMENT Control for deep or bright frequency response \- ¼” phone jack INPUT with a direct, un-buffered PASS THROUGH ¼” phone jack \- XLR Balanced Output with selectable LINE or MIC LEVEL Output and GROUND LIFT for Pin 1 \- Pure Analog Circuit Design using thru-hole, low-noise components \- Rugged all-steel chassis with durable powder coat finish \- Powered by a single industry standard 9VDC AC Adapter, running internally at 18 volts for higher headroom and lower noise \- Dimensions: Width: 3.35″ Length: 4.2″ Depth: 1.8″ \- Designed and manufactured in California The GCS-2 is ideally suited for live performance and studio applications, offering a solution to eliminate bleed through or crosstalk from other instruments or amplifiers in live situations. It can split the output of the APP-1 guitar pedal preamp for sending the signal to a guitar amplifier and a mixing console for recording, house sound systems, and stage monitor systems. The product is designed and manufactured in California, featuring a rugged all-steel chassis with a durable powder coat finish. It is powered by a single industry standard 9VDC AC Adapter, running internally at 18 volts for higher headroom and lower noise.

GCS-3

PBF Flanger

The A/DA PBF Flanger is an all-analog flanger pedal designed with a compact "Pedal Board Friendly" (PBF) enclosure. It is based on the classic design of the original ADA Flangers from the late 1970s. The pedal features the following specifications and features: \- Dimensions: 4.5” x 2.5” x 1.5” (LxWxH) \- Weight: 1 lb \- Housing: All-steel industry standard-sized enclosure \- Power Requirement: 9 to 12 volts DC pedal board power supply or AC adapter (sold separately) at 100mA to 150mA \- Features: BASS voicing switch, Output LEVEL control, True bypass, LED status indicator \- Functionality: Capable of a wide range of subtle to extreme modulation effects, including self-oscillation, chorusing, vibratos, and more \- Additional Control: VOLTAGE CONTROL jack for use with an expression pedal or voltage to control the MANUAL function remotely The A/DA PBF Flanger is known for its unique and powerful tone and depth, offering a rich and warm sound. It is capable of producing auto whammy, chorus, vibrato, and de-tune modulations. The pedal is designed to work with ADA CONTROL PEDALs and most other expression pedals, or the SWEEP can be controlled with an external voltage. The PBF Flanger is made in California and is designed to deliver a wide range of modulation effects while maintaining a compact and pedalboard-friendly form factor.

APP-1 Pedal Preamp

The A/DA APP-1 Pedal Preamp is a 2-channel analog preamp featuring D-Torsion Core Technology, designed by David Tarnowski. It offers a range of features including independent passive tone stacks, independent pre-distortion voicing for clean, OD, and distortion, adjustable level dual-buffered effects loop, foot-switched boost up to +16dB, true bypass, tuner out, and an all-steel industrial-grade enclosure. The pedal preamp is hand-made in California and provides a no-compromise, low-noise, all-analog preamp solution.

Final Phase

The A/DA Final Phase is a versatile phase shifter capable of producing a broad range of sound colorations, enhancing the effect of any amplified musical instrument, voice, or percussive instrument. It features electronic phasing, generating 5 notches that can be moved across the sound spectrum to produce the classic rotating speaker effect. The 2009 Reissue A/DA Final Phase is designed by the original designers of the late 1970s A/DA Final Phases using very similar parts and exactly the same parts in the all-analog signal path. The differences between the Reissue and the original A/DA Final Phases include true "hardwire" bypass, re-voiced overdrive for a more modern sounding distortion, and a different PCB layout with all through-hole design. Technical Information: \- Controls: SWEEP RATE, SWEEP MODULATION, RANGE CONTROL, INTENSITY, OVERDRIVE \- Foot Switches: IN/OUT, OVERDRIVE \- Size: 6.75" wide x 5.75" deep x 3" tall The Final Phase Reissue features controls for sweep modulation, rate, range control, intensity, and overdrive.

APP-1 Pedal Preamp

The A/DA APP-1 Pedal Preamp is a 2-channel analog preamp featuring D-Torsion Core Technology, designed by David Tarnowski. It offers a range of features including independent passive tone stacks, independent pre-distortion voicing for clean, OD, and distortion, adjustable level dual-buffered effects loop, foot-switched boost up to +16dB, true bypass, tuner out, and an all-steel industrial-grade enclosure. The pedal preamp is hand-made in California and provides a no-compromise, low-noise, all-analog preamp solution.
