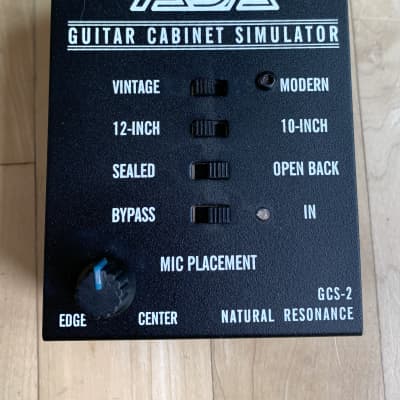

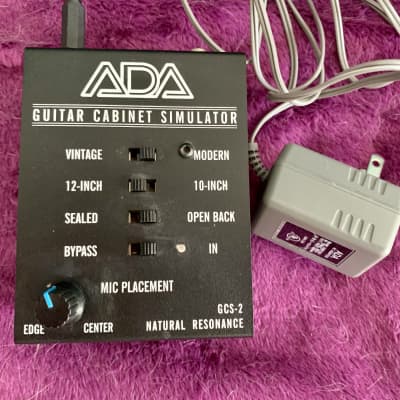

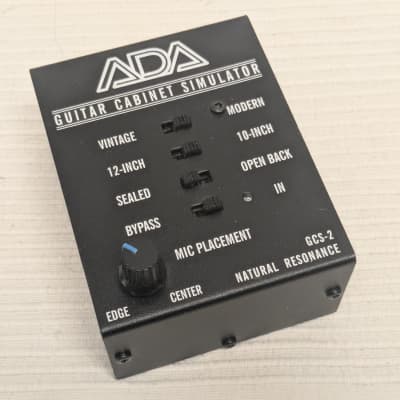

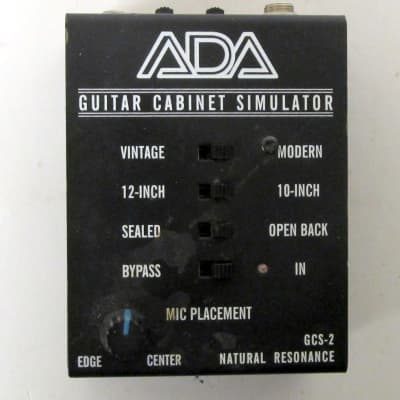

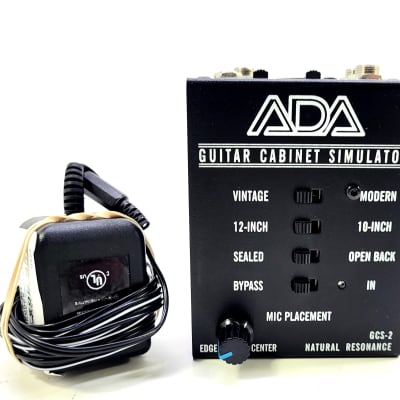

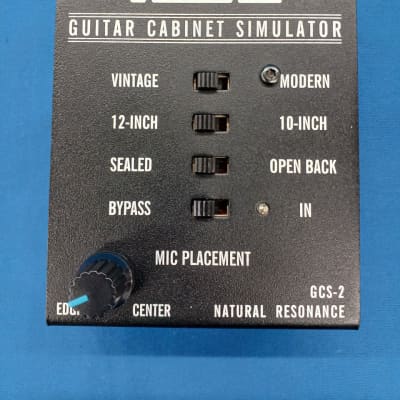

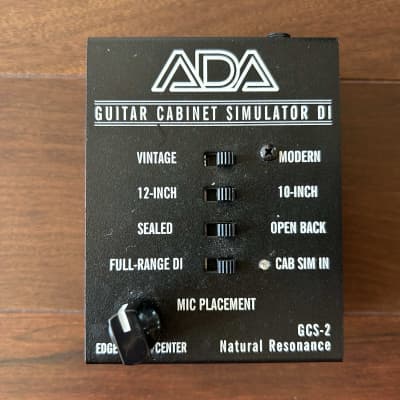

GCS-2

The A/DA GCS-2 is a guitar cabinet simulator and DI box designed for guitar players and sound engineers seeking high-quality analog solutions for live sound reinforcement systems, stage monitors, and recording electric guitar. It replicates the low-frequency natural resonance of a guitar speaker cabinet at loud volumes, particularly noticeable in the sealed cabinet configuration.

Key Specifications:
- Selectable 10” or 12” Speaker Size
- Selectable VINTAGE (Alnico) or MODERN (Ceramic) Speaker Character
- Selectable OPEN BACK or SEALED Cabinet Type
- Variable MICROPHONE PLACEMENT Control for deep or bright frequency response
- ¼” phone jack INPUT with a direct, un-buffered PASS THROUGH ¼” phone jack
- XLR Balanced Output with selectable LINE or MIC LEVEL Output and GROUND LIFT for Pin 1
- Pure Analog Circuit Design using thru-hole, low-noise components
- Rugged all-steel chassis with durable powder coat finish
- Powered by a single industry standard 9VDC AC Adapter, running internally at 18 volts for higher headroom and lower noise
- Dimensions: Width: 3.35″ Length: 4.2″ Depth: 1.8″
- Designed and manufactured in California

The GCS-2 is ideally suited for live performance and studio applications, offering a solution to eliminate bleed through or crosstalk from other instruments or amplifiers in live situations. It can split the output of the APP-1 guitar pedal preamp for sending the signal to a guitar amplifier and a mixing console for recording, house sound systems, and stage monitor systems.

The product is designed and manufactured in California, featuring a rugged all-steel chassis with a durable powder coat finish. It is powered by a single industry standard 9VDC AC Adapter, running internally at 18 volts for higher headroom and lower noise.
