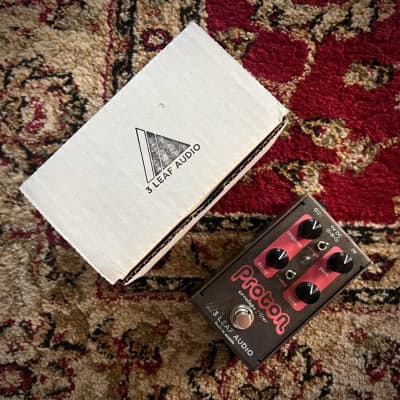

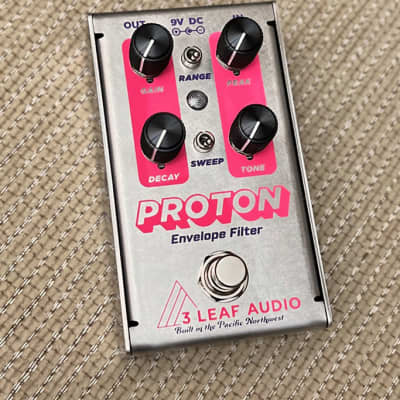

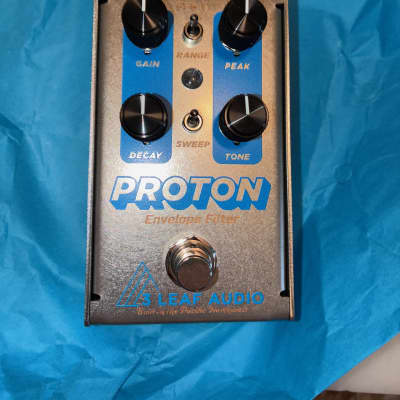

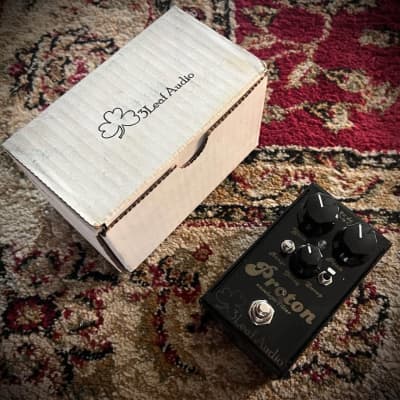

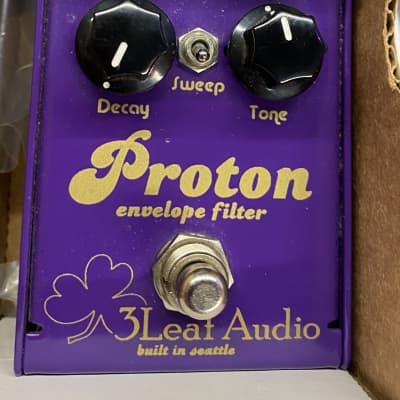

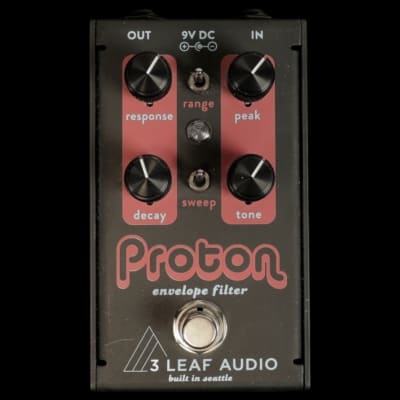

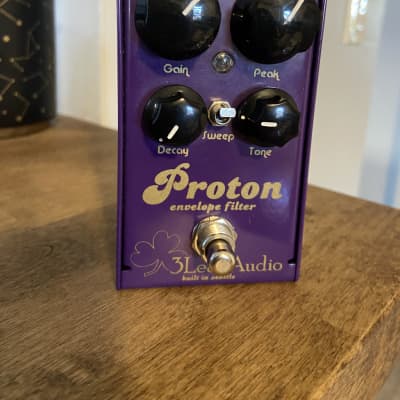

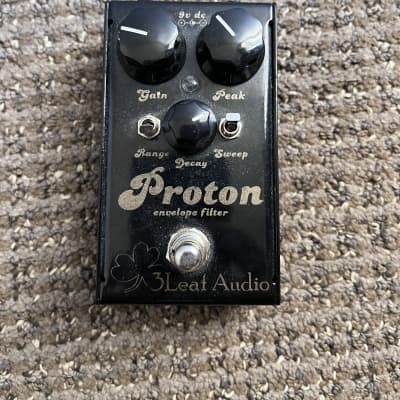

Proton Envelope Filter

The Proton Envelope Filter by 3Leaf Audio is a modern homage to the classic Mutron III envelope filter. It features a wide frequency response that works well with various instruments. The version 3 of the Proton has increased input sensitivity to better accommodate low-output instruments. Additionally, it includes a tone knob for variable control over the filter cutoff frequency.

Technical Specifications:
- Power: 9V DC, 25mA minimum
- Power Connector: 2.1mm center-negative (Boss-style) plug
- Warranty: Guaranteed against defects for one year, covering normal use
- Bypass: Relay-based silent true bypass that automatically switches to bypass mode if power is lost

Key Features and Controls:
- Decay: Controls the time it takes for the filter to sweep
- Tone: Adjusts the maximum cutoff frequency of the filter
- Sweep: Determines the direction of the filter's sweep
- Peak: Controls the "wetness" of the filter sound
- Gain: Adjusts the response of the filter to playing dynamics

The Proton Envelope Filter offers a redesigned circuit for better tone and a more musical response, making it a versatile and dynamic tool for creating funky envelope filter effects.
