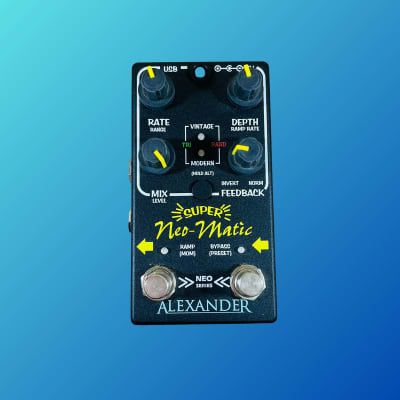

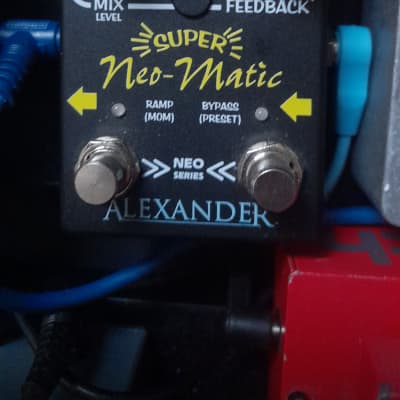

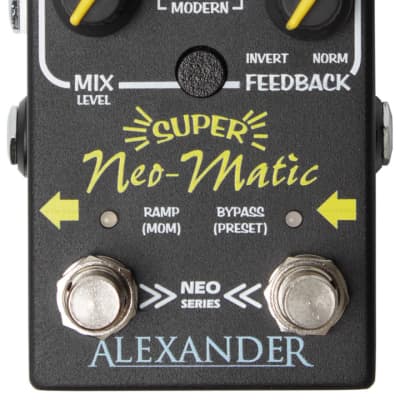

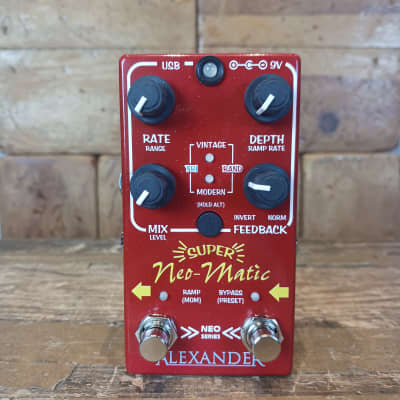

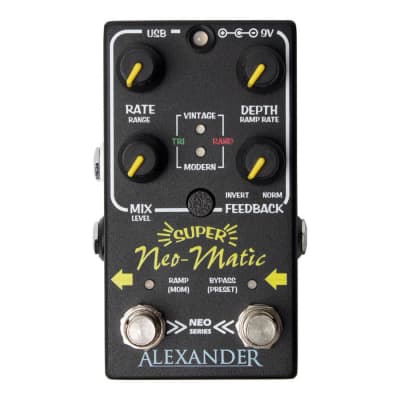

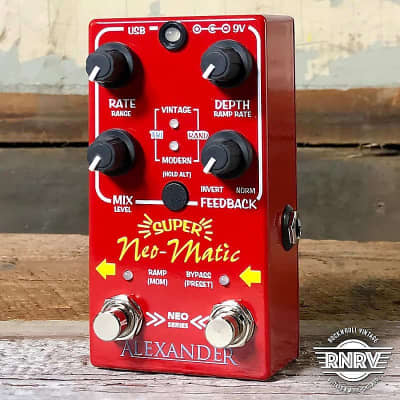

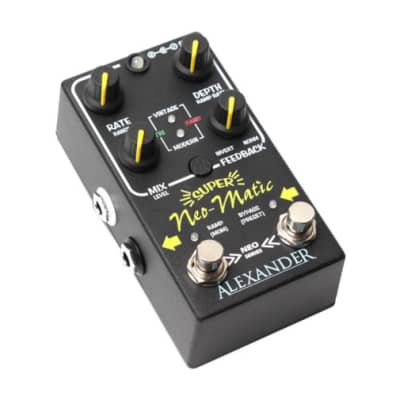

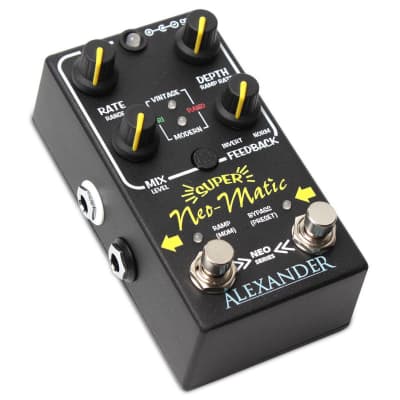

Super Neo-Matic

The Super Neo-Matic by Alexander Pedals offers a range of features and technical specifications:

- Two modulation types: Triangle and Random
- Two sound modes: Vintage and Modern
- Triangle mode: Controls time delay with a wide-ranging triangle wave oscillator for traditional chorus, vibrato, and flanging textures
- Random mode: Controls time delay matrix using a randomly-changing voltage, shifting the signal between various tones unpredictably
- Both modulation types available in two sound variations: Vintage uses 8-bit sampling, while Modern runs a full 24-bit audio path
- Ability to "park" the modulation and use the pedal as an audio delay
- Four presets, expandable to 16 with a MIDI controller
- MultiJack for expression pedal, foot switch, or MIDI input
- Neo Morph feature allows controlling all knobs from expression or MIDI
- Ramp footswitch triggers Neo Morph settings
- USB port for firmware updates and USB MIDI
- Mono input
- Dual output (mix signal on tip, dry signal on ring)
- Input Impedance: 1M ohms
- Output Impedance: 560 ohms
- DC 9V only, 100mA or greater
- Requires isolated DC power supply
- Dimensions: 4.7” x 2.6” x 1.5” H x W x D not including knobs

These specifications showcase the Super Neo-Matic's advanced functionality and versatile design for creating unique modulation effects.
