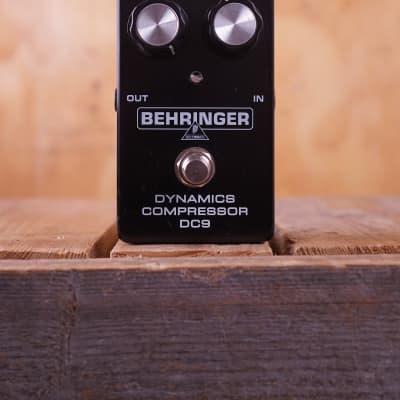

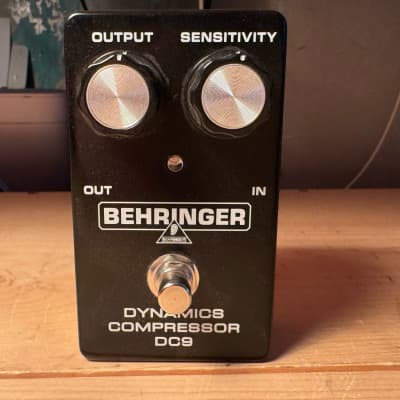

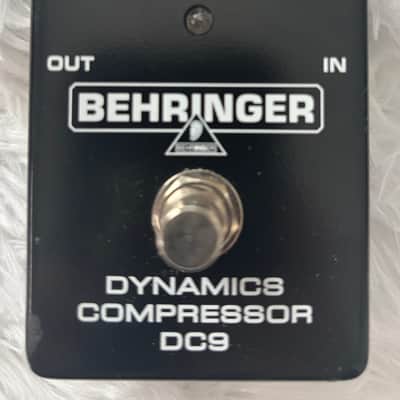

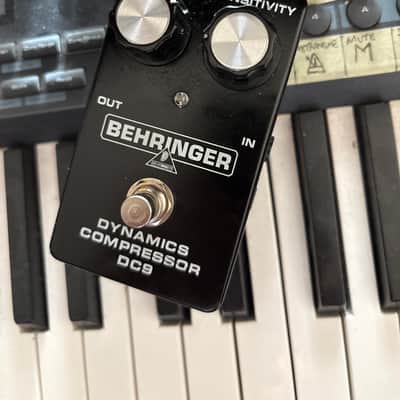

DC9 Dynamics Compressor

The Behringer DC9 Dynamics Compressor is a compact guitar effects pedal designed to provide stable dynamics and endless sustain to your guitar by evening out the signal without degrading the original sound. It can also be used to boost the overall volume of your instrument for solo parts. The compressor limits the dynamic range of a signal by attenuating signal peaks exceeding a certain threshold level, with the amount of gain reduction determined by the compression ratio. The result of compression is an attenuation of the difference between the loudest and softest playing, achieving a more powerful and punchy tone.

Key features and controls include:
1. Sensitivity control: Determines the compression ratio, intensifying compression as the sensitivity value is increased.
2. Output control: Adjusts the output level to compensate for gain reduction resulting from compression or to boost the instrument's output level.
3. LED indicator: Illuminates when the effect is activated and serves as a battery level indicator.
4. Footswitch: Depress to activate/deactivate the effect.
5. Input and output connectors: 1/4" TS connectors for instrument cable and amp connection.

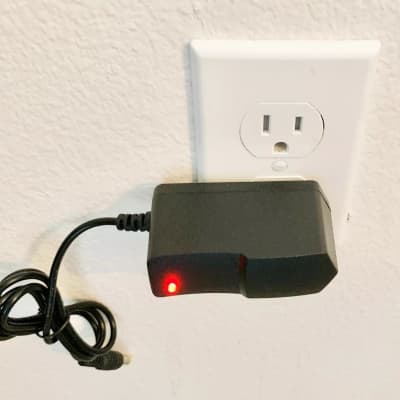

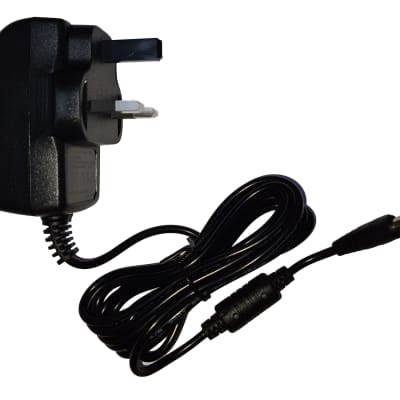

6. Power supply: 9V power supply (not included) or 9V battery.

Technical specifications:
- Input impedance: 1 MΩ
- Output impedance: 1 kΩ
- Power supply: 9V, 100 mA regulated
- Power consumption: 9 mA
- Dimensions: Approximately 2 1/5 x 4 2/5 x 2 2/3" (H x W x D)
- Weight: Approximately 0.53 lbs / 0.24 kg
