VP1 Vintage Phaser

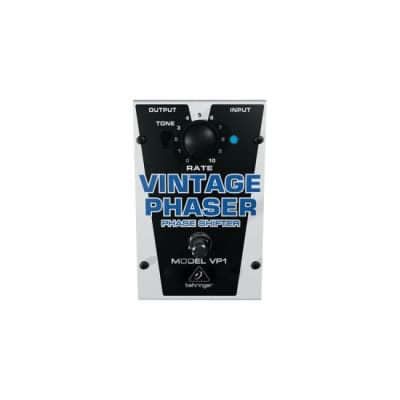

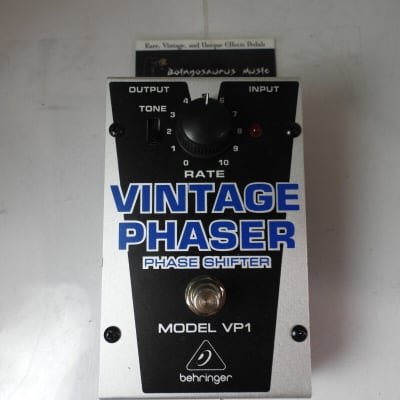

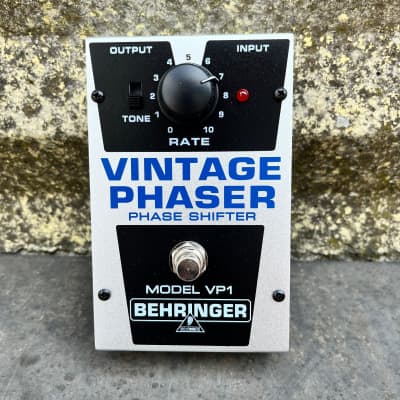

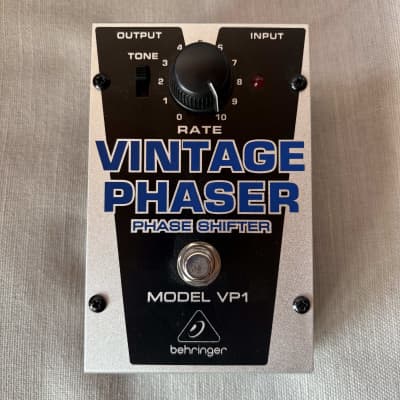

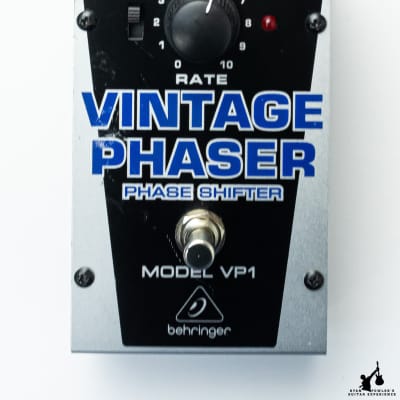

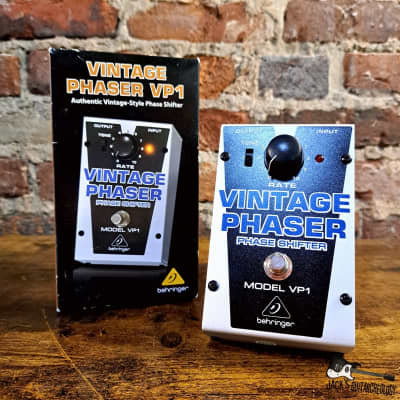

The Behringer VP1 Vintage Phaser is a high-quality effect pedal designed to provide authentic and classic three-dimensional phase shifting, ranging from rapid rotary speaker to impressive jet plane effects. The pedal features the following controls and connectors:

1. RATE control: Determines the speed of the phase shifting effect.
2. TONE switch: Allows selection between negative feedback (lower position) or positive feedback (upper position) phaser modes.
3. STATUS LED: Illuminates when the effect is activated.

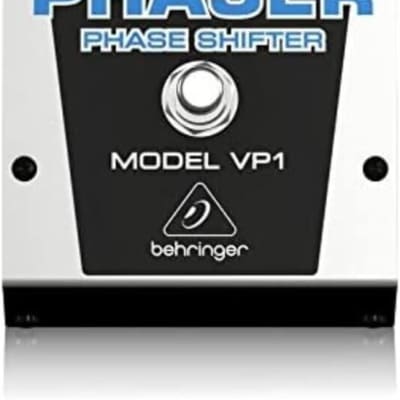

4. Footswitch: Activates/deactivates the effect.
5. ¼" TS INPUT connector: Used to plug in the instrument cable.
6. ¼" TS OUTPUT connector: Sends the signal to the amplifier.

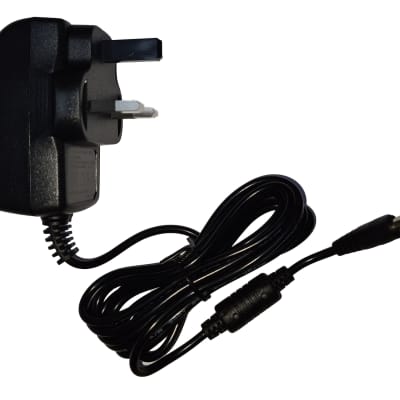

7. DC IN connection: Used to plug in a 9V power supply (not included).
8. BATTERY COMPARTMENT: Located on the bottom for installing or replacing the 9V battery.

Technical Specifications:
- Input Impedance: 100 kΩ
- Output Impedance: 15 kΩ
- Power Supply: 9V, 100 mA DC regulated
- Power Consumption: 30 mA
- Dimensions: Approximately 2.9 x 3.3 x 5.6" (H x W x D)
- Weight: Approximately 0.86 lbs / 0.39 kg

The VP1 does not have an on/off switch and begins running as soon as the jack is inserted into the in connector. When not in use, it is recommended to remove the jack from the in connector to extend the battery life.
