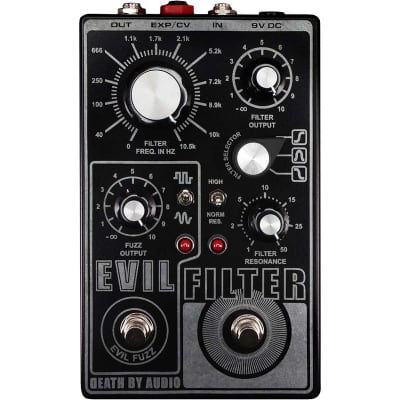

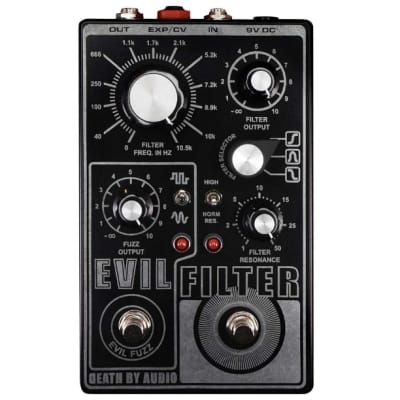

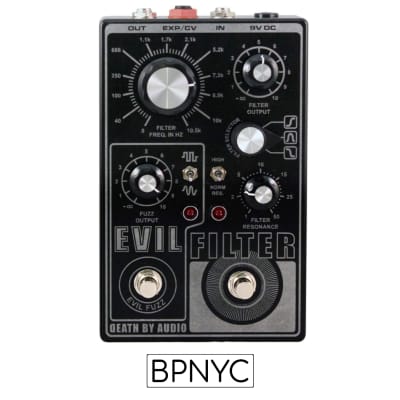

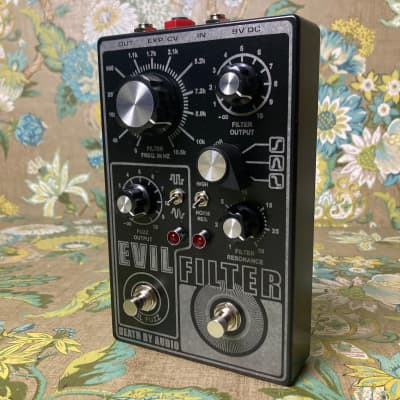

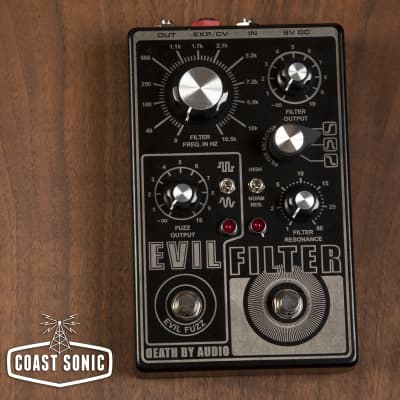

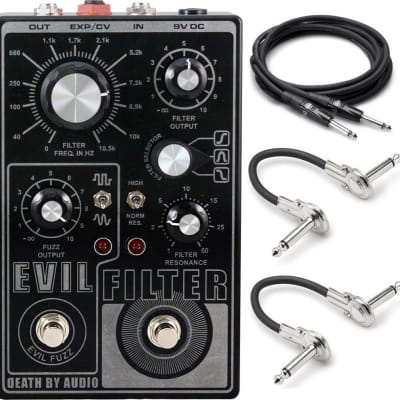

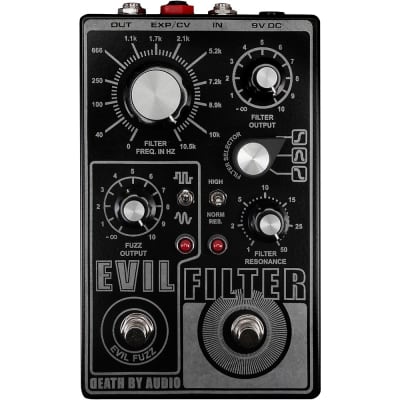

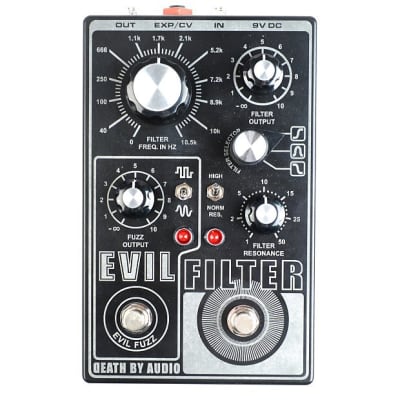

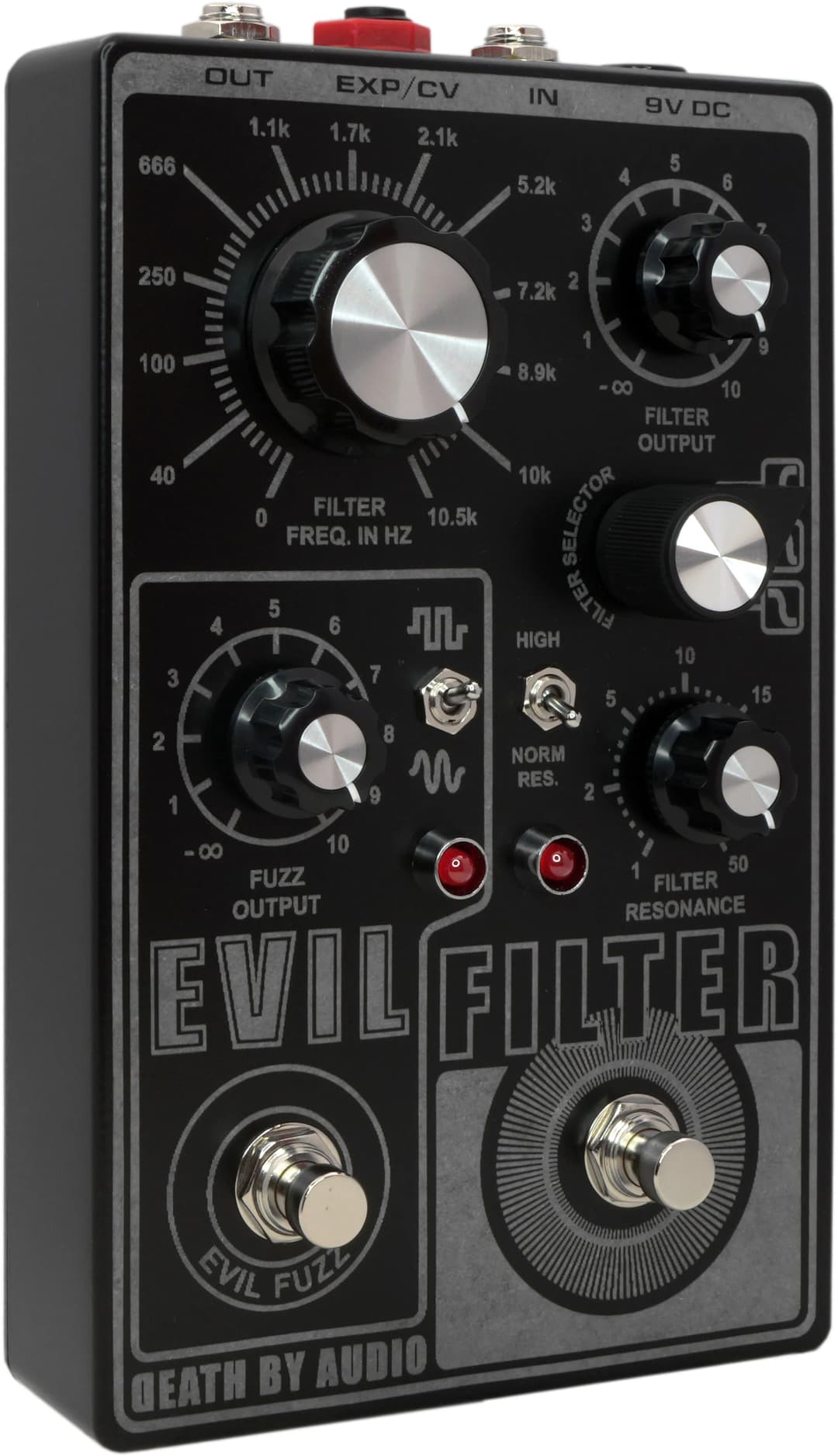

Evil Filter

The Evil Filter by Death By Audio features the following technical specifications:

- Dimensions: 7.75" x 4.72" x 2.4" (including hardware)
- Weight: 25 oz
- Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery)
- Current Draw: 21 mA

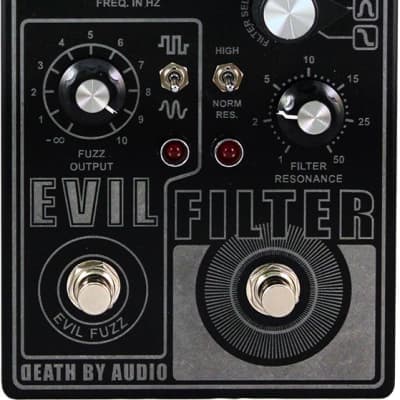

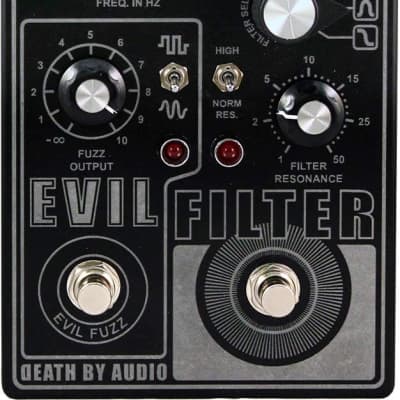

The pedal offers various controls and features, including:
- Filter Freq: Cutoff frequency of the filter
- Filter Output: Volume of the filter section
- Filter Selector: Selects between different filter types - Low Pass, Band Pass, and High Pass
- Filter Resonance: Sets the resonance of the filter
- Resonance Switch: Sets the range of the Filter Resonance knob between Normal and High
- Fuzz Output: Volume of the fuzz section
- Fuzz Type Switch: Choose between two different fuzzes
- EXP/CV Input: Allows external control of the Filter Freq knob with CV control or an expression pedal

The Evil Filter is designed to provide a wide range of filter and fuzz effects, offering playability and tonal options for users.
