Cntl Knob

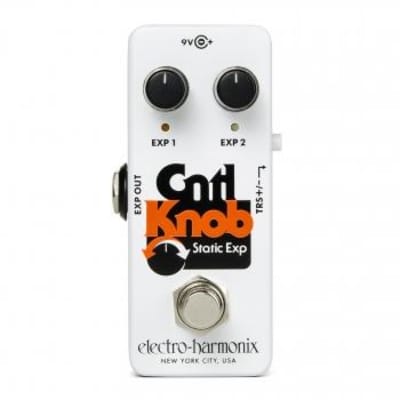

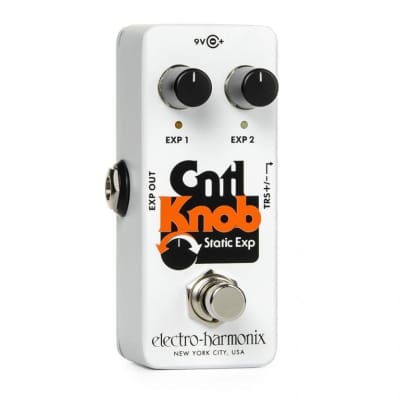

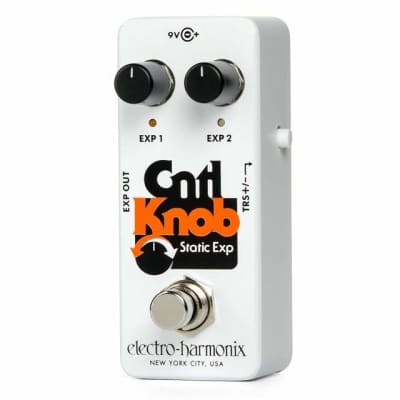

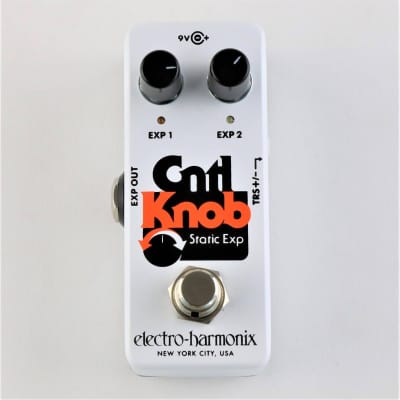

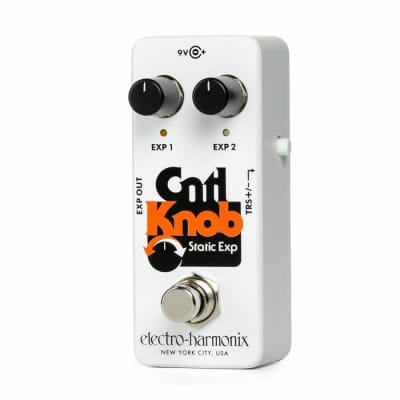

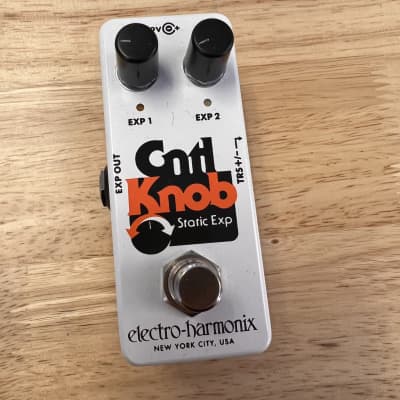

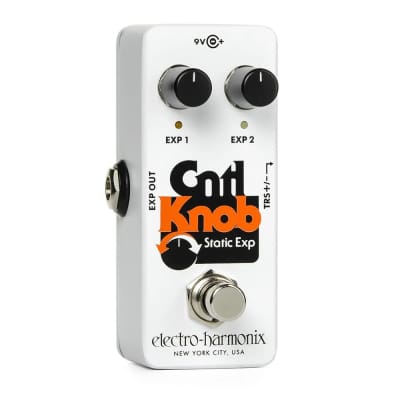

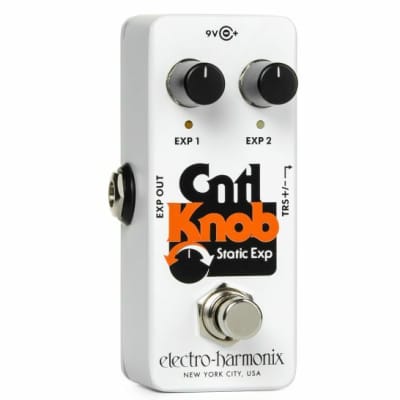

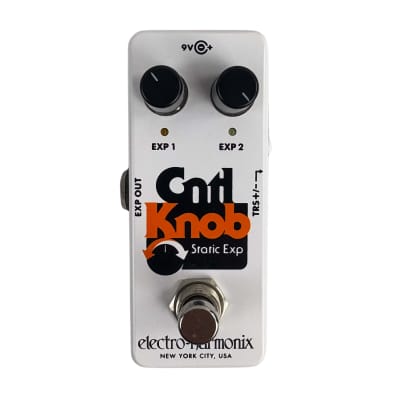

The Electro-Harmonix Cntl Knob is a compact and affordable pedal that provides static remote control for devices with expression control jacks. It allows users to set two preset values representing two positions of a traditional expression pedal and toggle between them with its footswitch. The pedal's EXP 1 Knob selects the first expression setting, and the EXP 2 Knob selects the second, with fully counterclockwise corresponding to the heel position and fully clockwise to the toe position. LEDs indicate which knob is active and can be powered by a pedalboard's power supply.

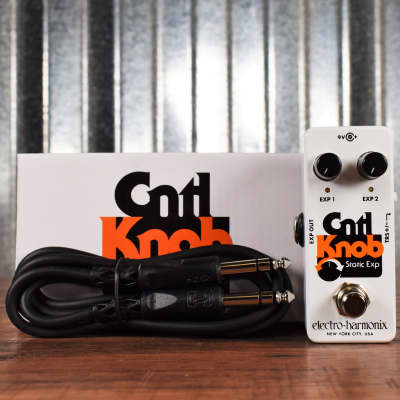

To maximize compatibility with other products, the Cntl Knob is equipped with a TRS+/- Button that allows users to match its expression polarity with the device being controlled. Additionally, it comes with a 6-foot TRS (Tip-Ring- Sleeve) cable for extra convenience.

Specifications:
- Circuit: Analog
- Audio: Mono
- Dimensions (in): 3.63 x 1.75 x 1.50
- Current Draw: 5mA
- Year Released: 2020
- UPC: 683274012292

The pedal is designed to deliver static remote control for Electro-Harmonix pedals and those of other makers equipped with expression control jacks.
