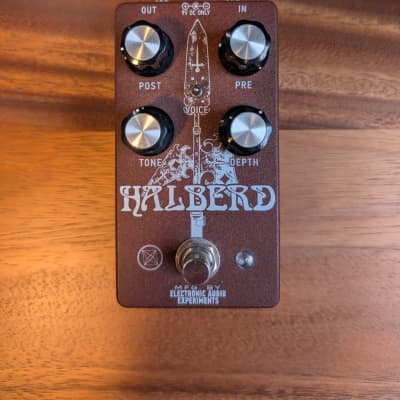

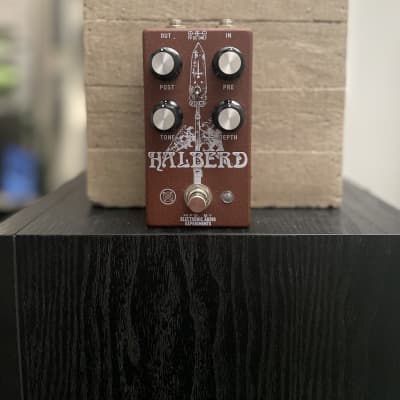

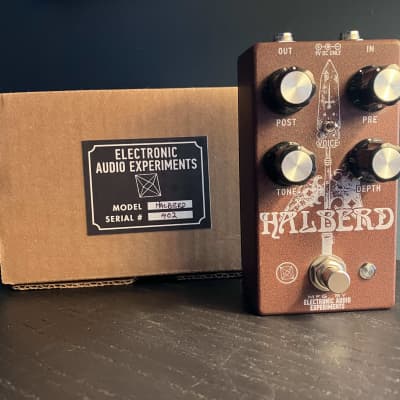

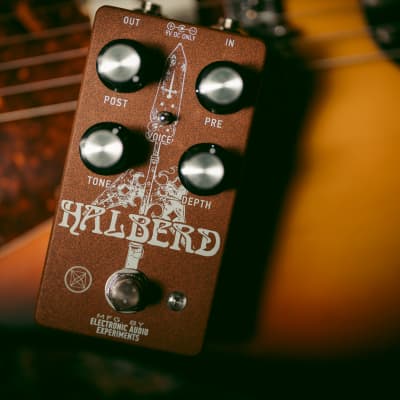

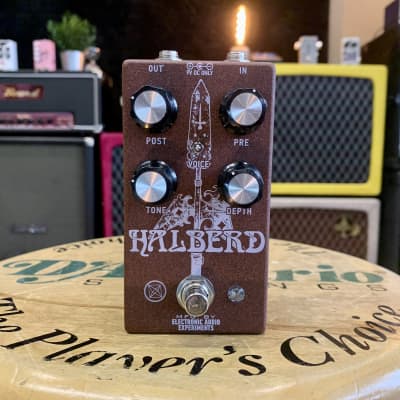

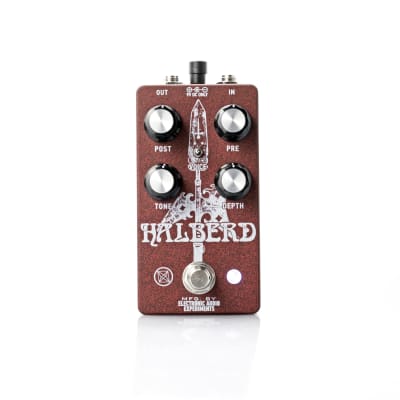

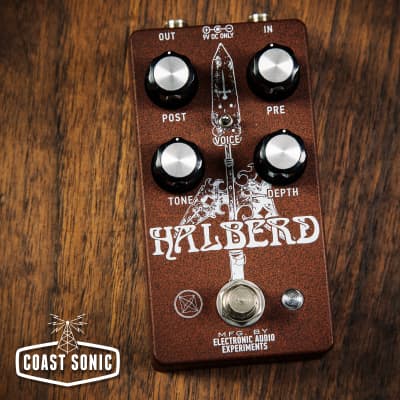

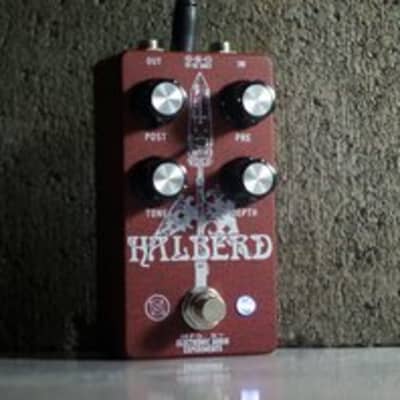

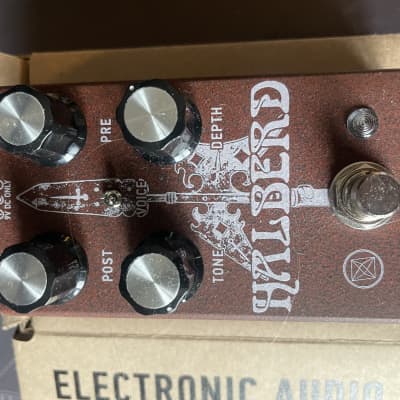

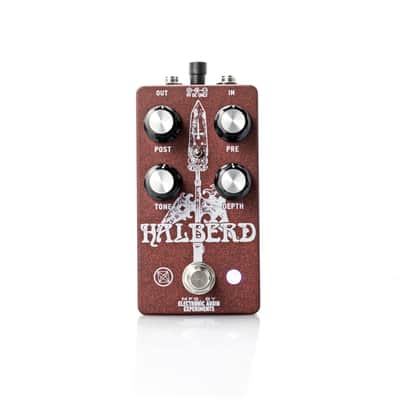

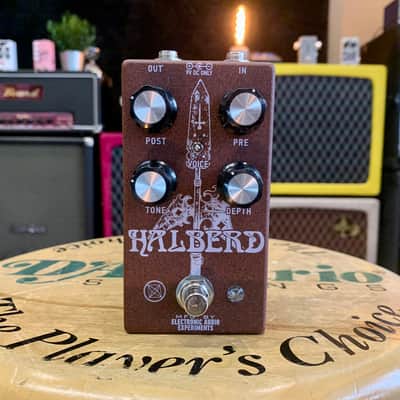

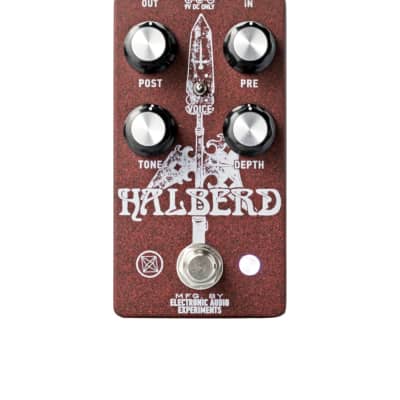

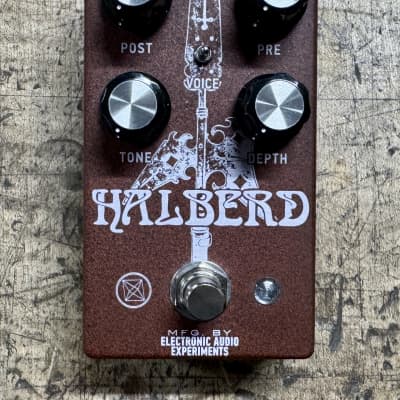

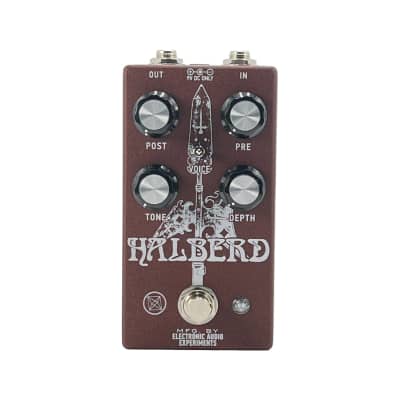

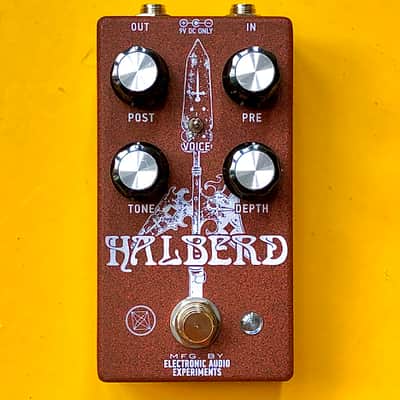

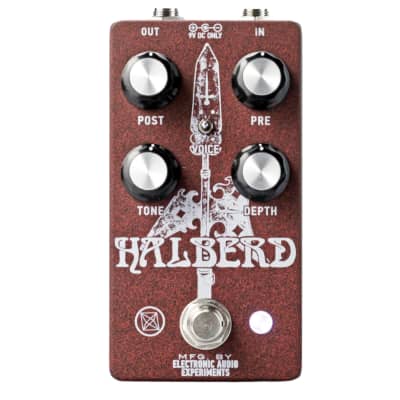

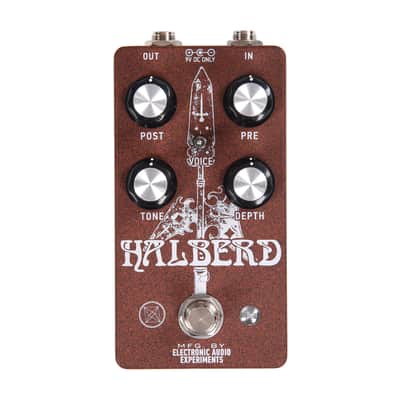

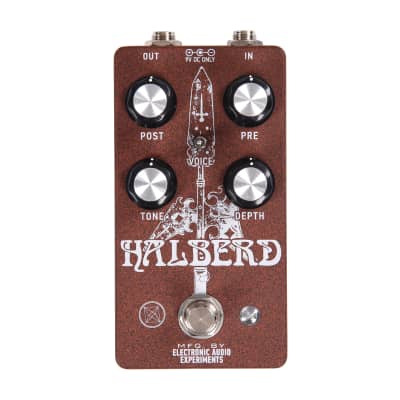

Halberd V2 by Electronic Audio Experiments

The Halberd V2 by Electronic Audio Experiments is a discrete transistor overdrive circuit designed to provide the greatest possible dynamic range and note clarity. Here are the technical specifications and features:

Electrical Specifications:
- Bypass switching: Silent electronic switching with a Class A JFET buffer
- Input impedance @ 1Khz: 1MΩ
- Output impedance @ 1Khz: <1KΩ
- Power: 9VDC, 2.1mm center negative barrel. The current draw is 50mA. It is recommended to use a regulated, isolated power supply rated for 100 mA minimum. The DC input is protected against reverse polarity and over-voltage up to 24V. The pedal does not accept batteries.

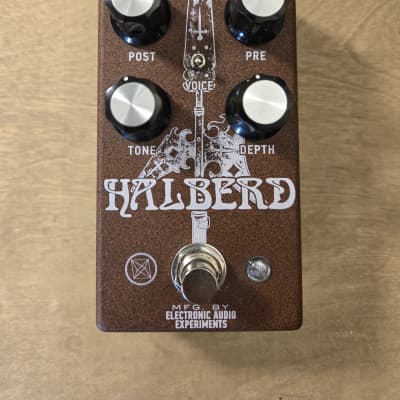

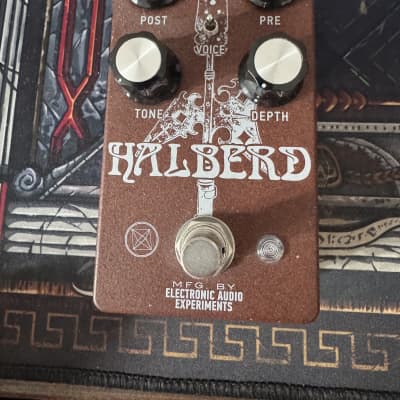

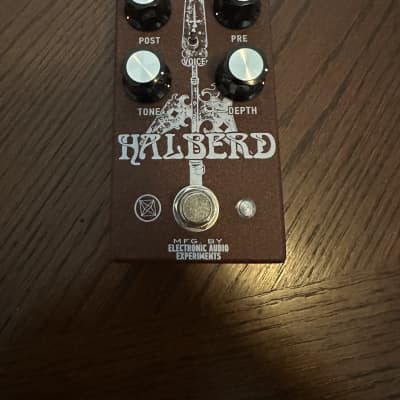

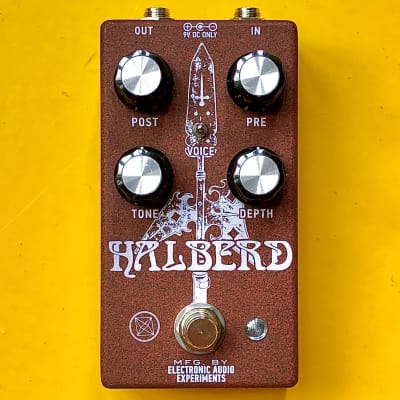

Controls:
- Pre: Sets the overall signal gain, with lower settings imparting light compression and increasing amounts of clipping up to a fuzzy overdrive, depending on the Voice and Depth settings.
- Depth: An adjustable low frequency shelving filter at the input, interacting with the Pre control and affecting low frequencies only.
- Tone: An adjustable high shelf cut at the output, helpful for taming harsher frequencies especially at high gain settings.
- Post: Sets the overall output level, buffered for full transparency at all signal levels.
- Voice: 3 position switch to set the overall drive character:
- Clang (up): Increases gain in the upper midrange, for an aggressive sound and a sharp attack
- Standard (middle): Moderate gain with a gentle mid push; identical to Halberd V1
- Deep (down): A full range gain boost with woolly saturation and a fuzzy note attack

Additional Features:
- New mechanical form factor; size reduced from BB-type enclosure to 125B-type enclosure
- NOS germanium transistor no longer used. Supporting circuitry updated to preserve tonal characteristics
- Bypass switching converted to fully electronic CMOS switch
- Added PSU input over-voltage protection
- Low control renamed to Depth; High control renamed to Tone

The Halberd V2 is designed to provide a unique overdrive experience with a wide range of tonal possibilities, making it suitable for guitar, bass, and synthesizer applications.
