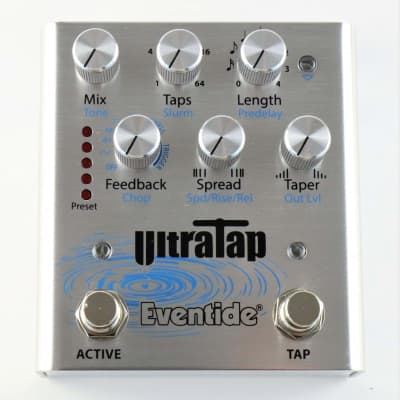

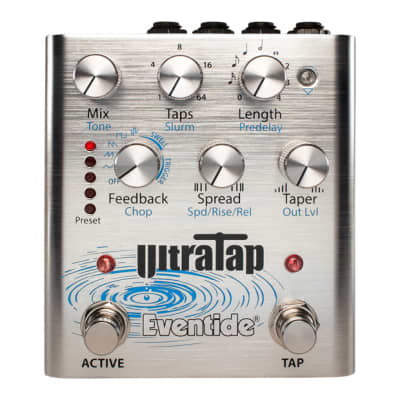

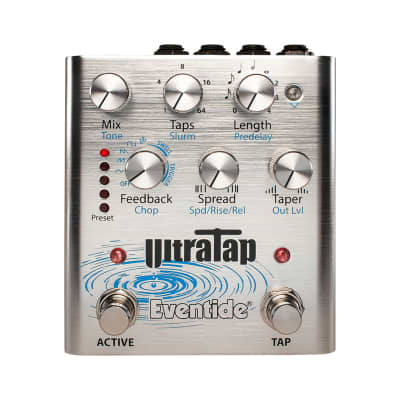

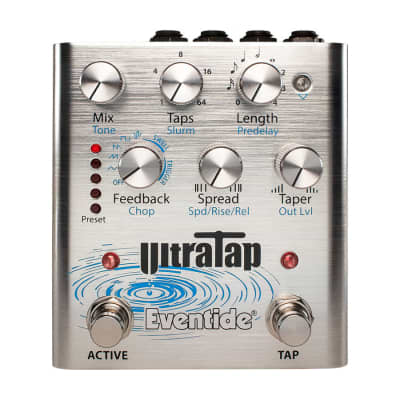

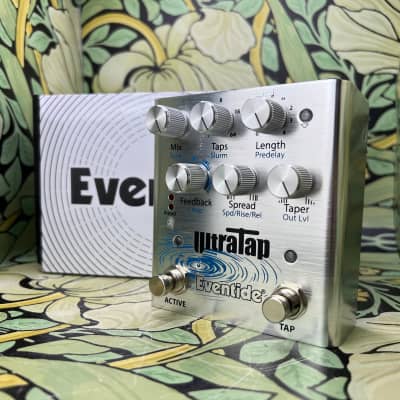

UltraTap

The Eventide UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, glitchy reverbs, huge pad-like volume swells, and extraordinary modulation. Its features and technical specifications include:

Connectors:
- Input: 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
- Out 1: 1/4″ TS Mono / Mono Output
- Out 2: 1/4″ TS Mono / Stereo Output
- EXP: 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
- Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
- Guitar/Line Level Switch: Optimizes internal gain structure
- Mini USB: Software updates, MIDI I/O
- DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Impedance:
- Input Impedance: 700k ohms Mono, 990k ohms Stereo
- Output Impedance: 220 ohms
- Recommended Load Impedance: 10k ohms

Power:
- 9V DC @ 300mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)

Dimensions & Weight:
- Product Dimensions: 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
- Product Weight: 1.06 lb / 0.48 kg
- Package Dimensions: 7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
- Package Weight: 1.68 lb / 0.77 kg

Additional Features:
- Capable of up to 64 taps
- Five presets onboard and up to 127 with MIDI
- Onboard LFO and shapable envelope
- Control the stereo image of taps to alternate between hard-panned and mono
- Dual-action Active Footswitch is latching or momentary
- Rear panel Guitar/Line Level switch for matching levels of guitars, synths, FX loops, or DAW interface
- Multiple Bypass options: Buffered, Relay, DSP+FX, or Kill dry
- MIDI capability over TRS or USB
- Eventide Device Manager PC or Mac application for software updates, system settings, and creating/saving presets

The UltraTap is designed to offer a wide range of creative possibilities for musicians and sound engineers, making it a versatile tool for various applications.
