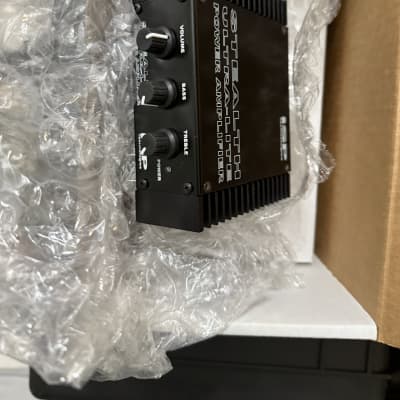

Stealth Power Amp

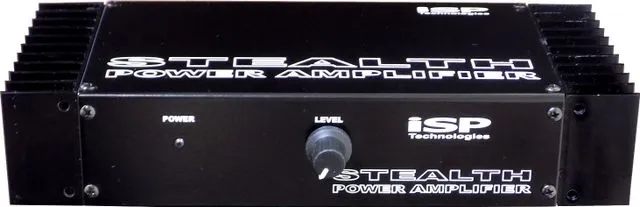

The ISP Technologies Stealth Power Amp is a high-performance floor mount guitar power amplifier designed for professional use. It is based on an analog class A/B amplifier design, providing excellent sonic and saturated clipping performance, surpassing the tone characteristics of Class D power amplifiers. The Stealth Power Amp delivers a true 180 watts RMS continuous output power into an 8-ohm speaker cabinet and greater than 120 volts bridged output voltage swing. It can also function as a stereo 2x 80 watt amplifier at 4 ohms. The compact size of 9 inches long, 4 inches wide, and 2 inches tall makes it suitable for integration into any floor-mounted pedal rig.

Key Specifications:
- Type: Solid state
- Number of Channels: 2
- Total Power: 180W @ 8 ohms Mono Bridge mode
- Inputs: 2 x 1/4"
- Input Impedance: 470k
- Output Power:
- 4 ohms @ 10% THD = 180W Peak, 90W RMS
- 4 ohms @ 1% THD = 160W Peak, 80W RMS
- 8 ohms @ 10% THD = 120W Peak, 60W RMS
- 8 ohms @ 1% THD = 100W Peak, 50W RMS
- 16 ohms @ 10% THD = 62W Peak, 31W RMS

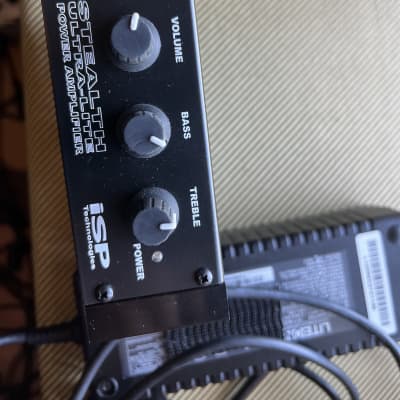

The Stealth Power Amp is powered by an external 19-volt DC switch-mode power adapter and includes internal protection against shorts, open circuits, and wrong impedance loads. It features an internal “power on/off” output control circuit for pop-free operation during turn on and turn off. Additionally, the amplifier is lightweight, weighing only 1.2 pounds, making it suitable for use in light-weight guitar systems.
