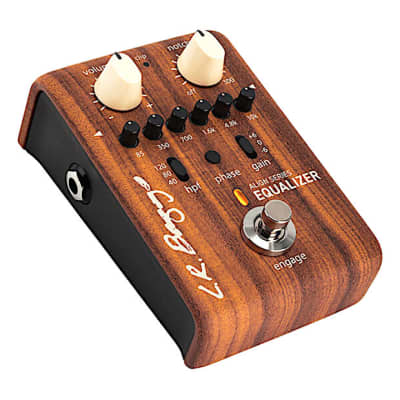

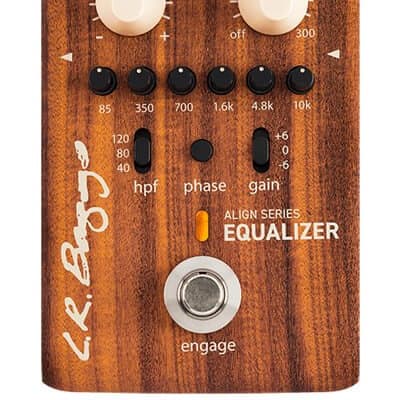

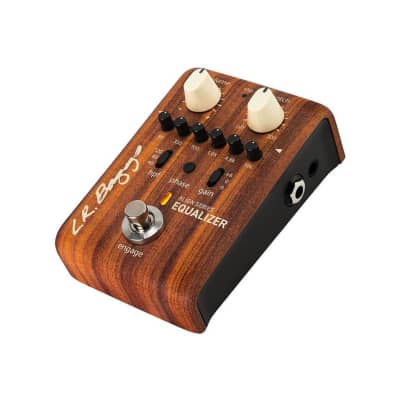

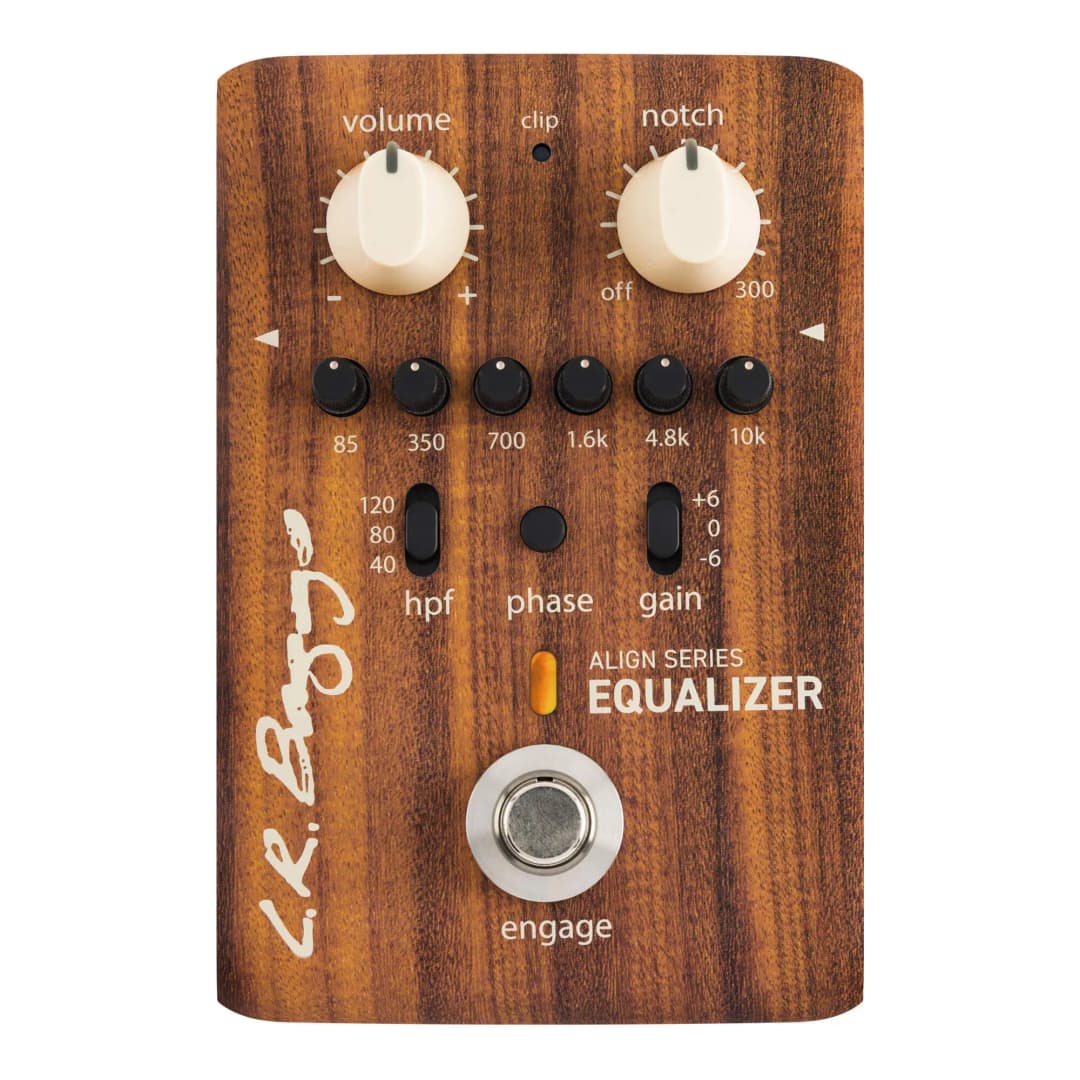

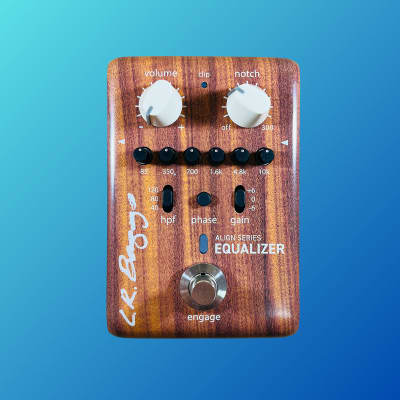

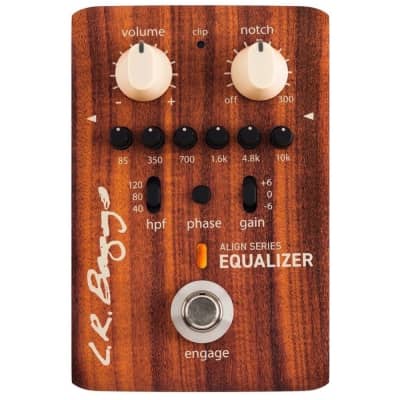

Align Equalizer Guitar Pedal By LR Baggs

Align Equalizer

Pedal Manufacturer

LR Baggs

Description

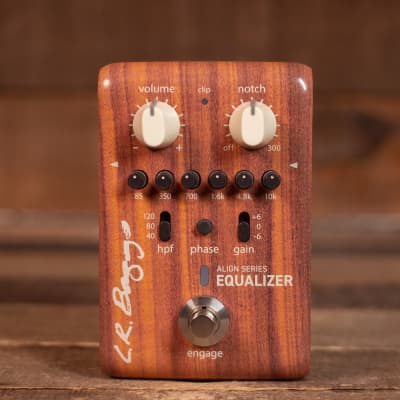

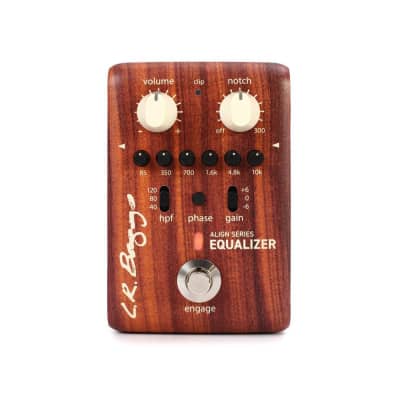

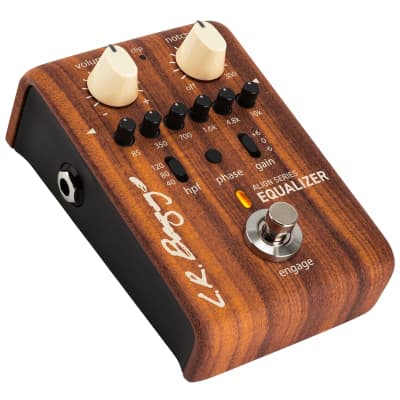

The LR Baggs Align Equalizer is a versatile acoustic EQ pedal designed to enhance acoustic instrument pickups with precise tone shaping. Here are the technical specifications and features:

Specifications:
- 1/4” Input:
- Input Impedance: 5.1 Megohms
- Preamp Gain: -6dB, 0dB, +6dB
- Input Level: -25dBv to +3dBv (0.056Vrms to 1.414Vrms)
- EQ:
- High-Pass Filter: 40Hz, 80Hz, 120Hz
- Notch: -20dB, sweepable from 40Hz to 300Hz 1/8 octave
- 85Hz, 350Hz, 700Hz, 1.6kHz, 4.8kHz, 10kHz: +/-9dB
- Line Output:
- Output Level: -1.4dBv (0.848Vrms) Unbalanced
- Output Impedance: 470 Ohms
- Power:
- DC Power Consumption: 43mW Max at 9V
- DC Current Draw: 4.5mA
- Voltage Range: 7.5VDC – 12VDC
- Power Supply: 9VDC with 100mA minimum
- 9V Battery Life: 110 hours
- Signal to Noise: 90dB, Unweighted
- Physical Characteristics:
- Weight: 0.85 lbs
- Dimensions: 5” Length x 3.25” Width x 2” Depth

The Align Equalizer is designed to inject richness and balance into any acoustic pickup signal, making it suitable for a variety of acoustic instruments. It offers precise control over the instrument's tone and feedback resistance, making it a valuable tool for live performances and studio recordings.

Watch something on YouTube

Watch Align Equalizer Videos, Demos, and Reviews

Watch the latest video demos and reviews for the Align Equalizer from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

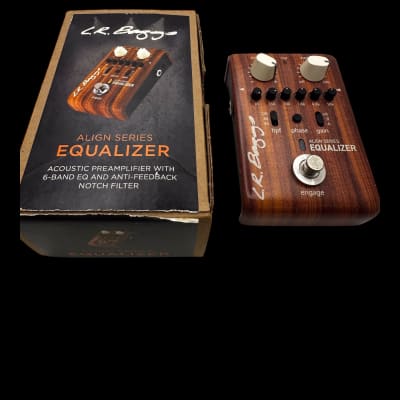

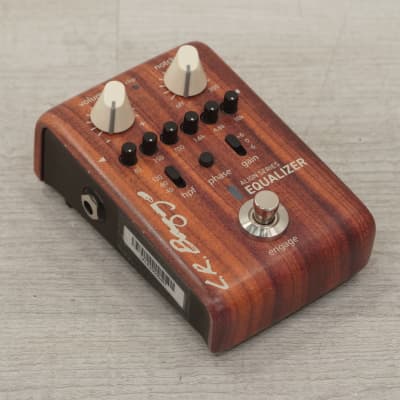

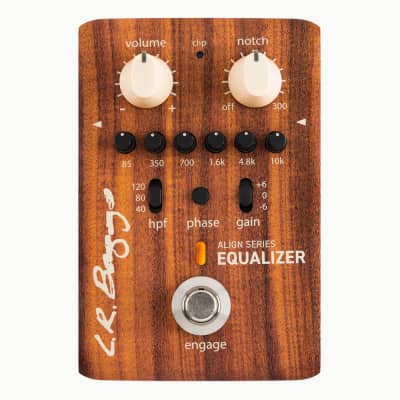

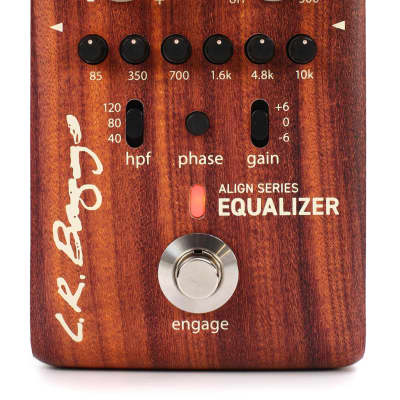

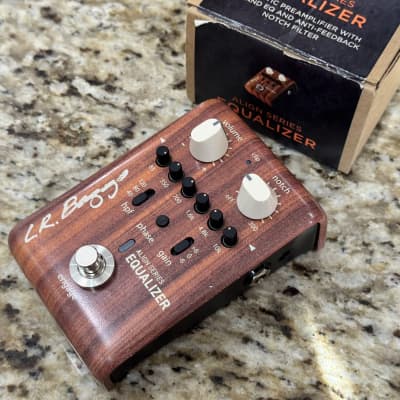

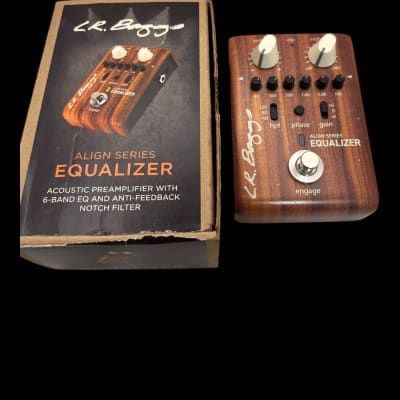

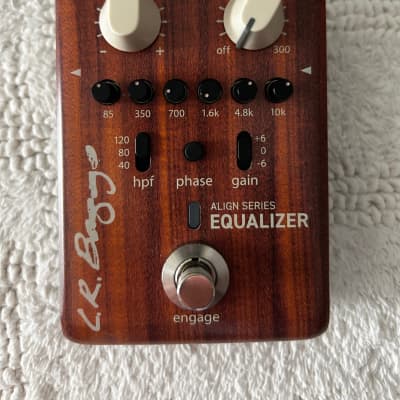

Find LR Baggs Align Equalizer Listings on Reverb

Below are live Reverb listings for the LR Baggs Align Equalizer from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.

eBay listings for lr-baggs-align-equalizer

eBay Logo for Listings

eBay Listings for Align Equalizer

Browse through eBay listings for the Align Equalizer compiled in real-time. From vintage finds to brand-new units, see a variety of purchasing options. This automated collection helps you explore deals and find the right pedal at the right price.

Similar pedals

eBay Logo for Listings

Pedals Similar to Align Equalizer on Stompbx

Discover pedals with similar features or sounds to the Align Equalizer. This section leverages data to suggest alternatives that complement or expand your pedalboard. Ideal for exploring related sounds or finding a pedal that matches your specific needs.

PA-1QB (Bass) Guitar Pedal By Free The Tone

EQ

Free The Tone

PA-1QB (Bass)

EX2 Exciter Guitar Pedal By Guyatone

Distortion

Guyatone

EX2 Exciter

Ten Band EQ Guitar Pedal By MXR

EQ

MXR

Ten Band EQ

Long Life Guitar Pedal By Fairfield Circuitry

EQ

Fairfield Circuitry

Long Life

PDF-1X Parametric Distortion Filter Guitar Pedal By Stone Deaf FX

Distortion

Stone Deaf FX

PDF-1X Parametric Distortion Filter

The Cleanness Guitar Pedal By Dr. Scientist

EQ

Dr. Scientist

The Cleanness

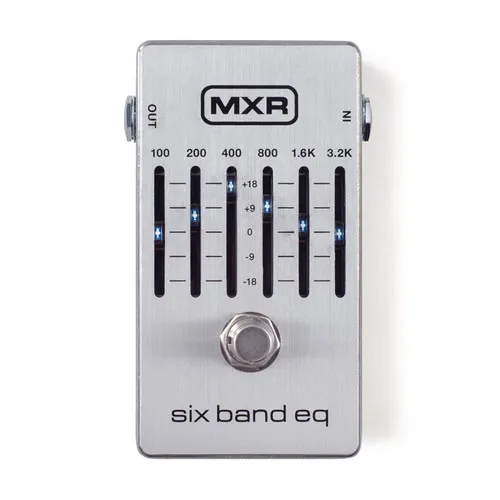

Six Band EQ - Silver Guitar Pedal By MXR

EQ

MXR

Six Band EQ - Silver

EF116 Infektor Guitar Pedal By Electro-Faustus

EQ

Electro-Faustus

EF116 Infektor

ToneDEQ Guitar Pedal By Fishman

EQ

Fishman

ToneDEQ

Hash Browns Flanger Guitar Pedal By Danelectro

EQ

Danelectro

Hash Browns Flanger

Sonic Stomp Guitar Pedal By BBE

Compression/Sustain

BBE

Sonic Stomp

EQ 7 Equalizer Pedal Guitar Pedal By Biyang

EQ

Biyang

EQ 7 Equalizer Pedal

GEB-7 Bass Equalizer Guitar Pedal By BOSS

Bass Effects

BOSS

GEB-7 Bass Equalizer

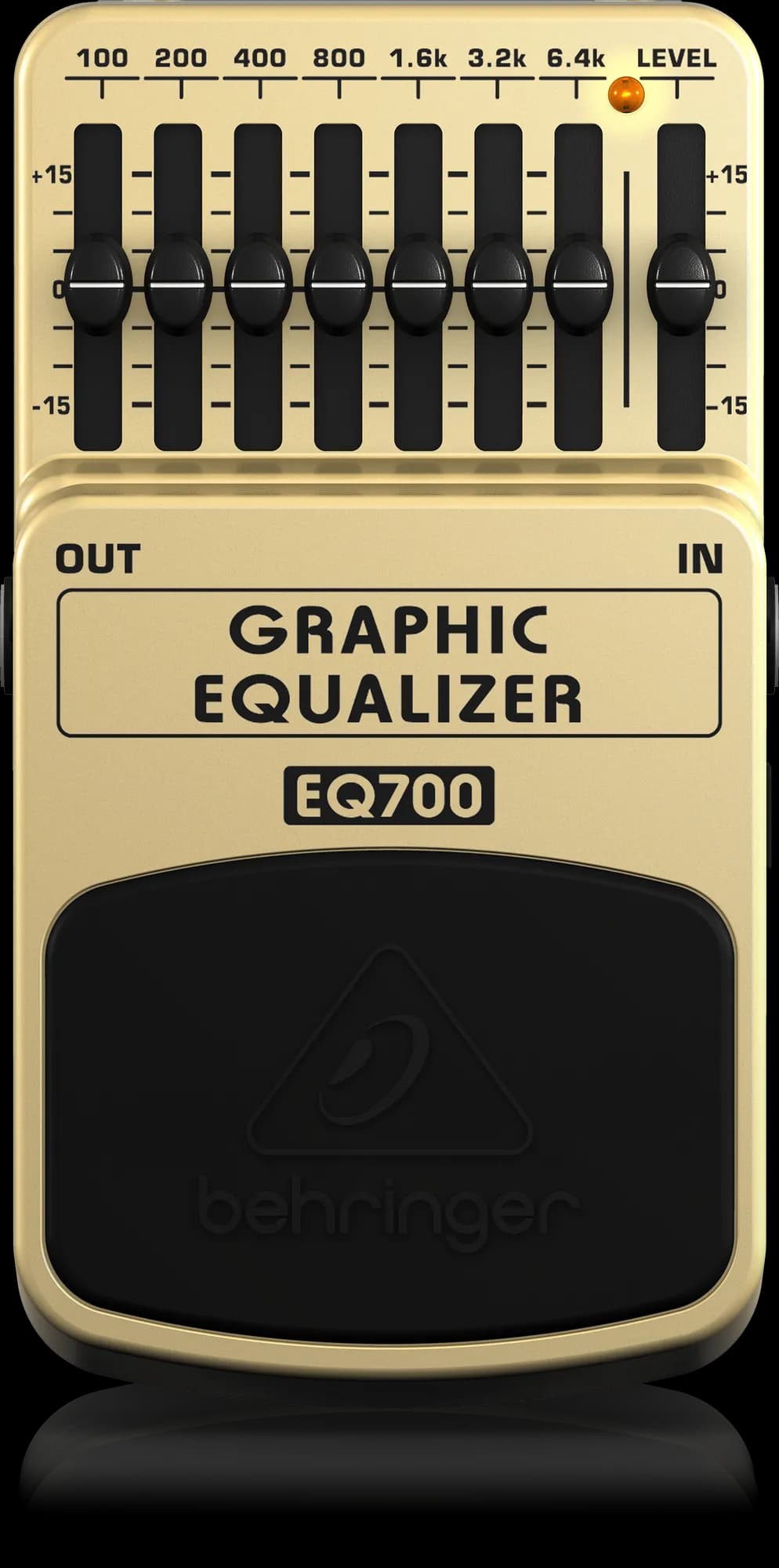

EQ700 Graphic Equalizer Guitar Pedal By Behringer
