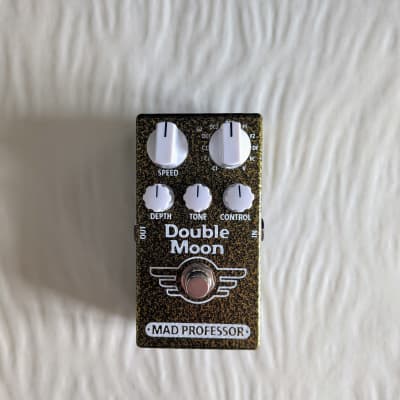

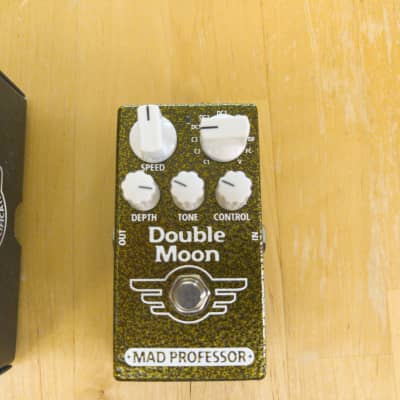

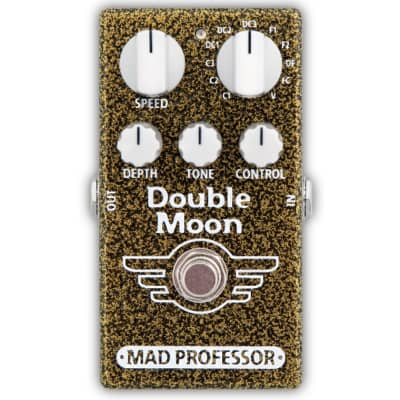

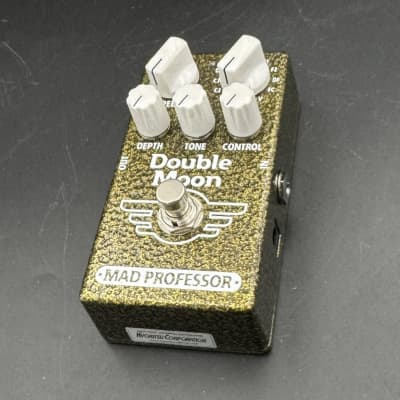

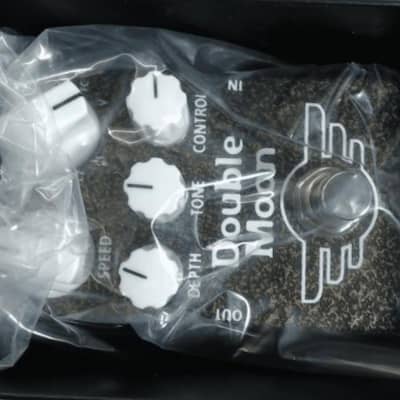

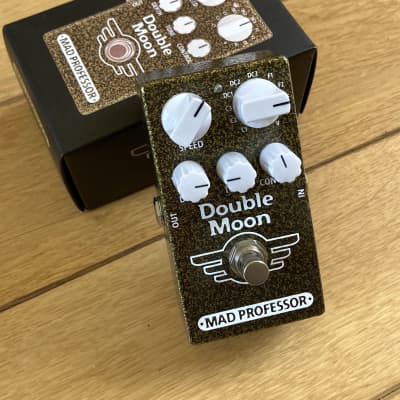

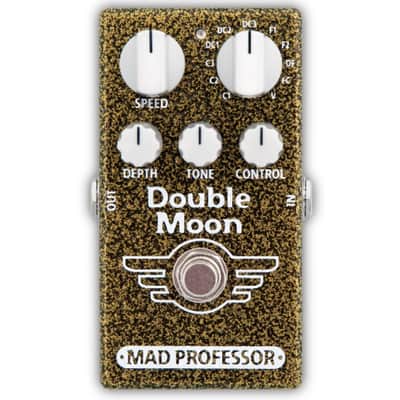

Double Moon

The Mad Professor Double Moon is a modulation effects pedal designed for guitar players. It features true analog bucket brigade signal paths and offers 11 different modulation modes, including chorus, dual chorus, flanger, and vibrato. The pedal allows for adjustments in speed, depth, and tone, providing a wide range of tonal oscillation options.

Technical Specifications:
- Power supply or battery operated
- Supply voltage range: 8.5V to 12V
- Current consumption: 85mA at 9VDC
- Input impedance: 500kΩ
- Output impedance: 1kΩ
- Dimensions: 113 x 65 mm
- Weight: 300g
- LED states: Off (effect is off), On (effect is on), Rapid LED blinking (supply voltage is too high and effect is off to protect internal circuits), Slow LED blinking (supply voltage is too low and effect is off)

Controls:
- Mode: Selects the active modulation sound
- Speed: Controls the speed of the modulation effect
- Depth: Controls the depth of the effect
- Tone: Adjusts the attenuation of high-frequency tone in the effect
- Control: Sound-dependent control for modulation waveshape, regen, or speed difference between choruses

Additional Features:
- True bypass
- Compact and versatile design
- Easy to use
- Suitable for a wide variety of modulation sounds

The Double Moon pedal is suitable for guitar players seeking a versatile modulation effects pedal with precise control over modulation parameters.
