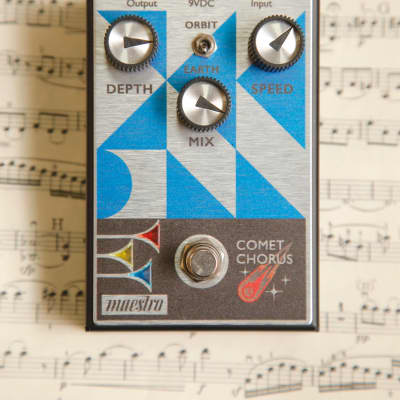

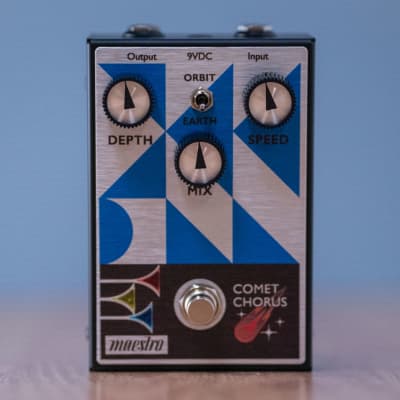

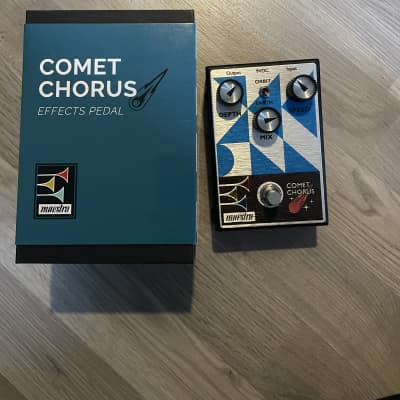

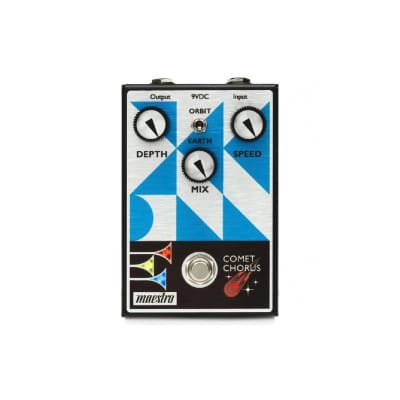

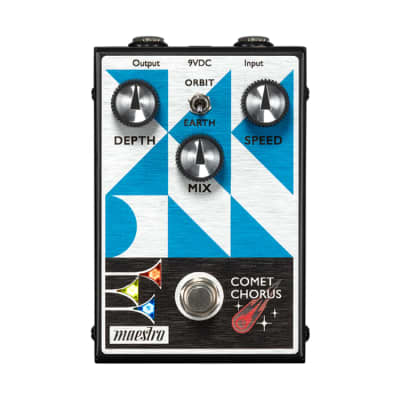

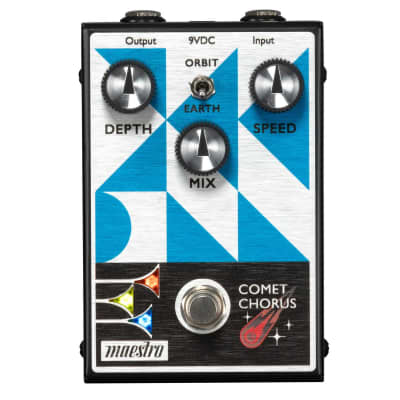

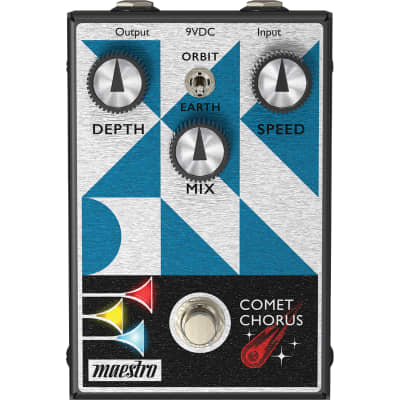

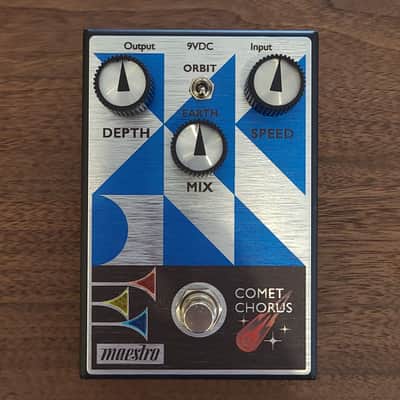

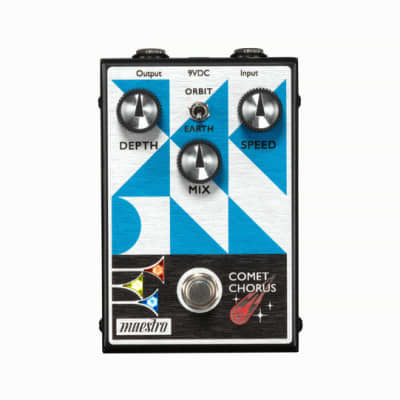

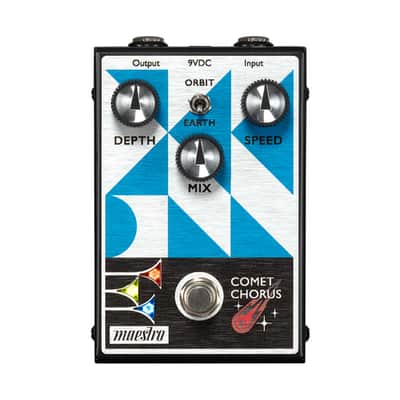

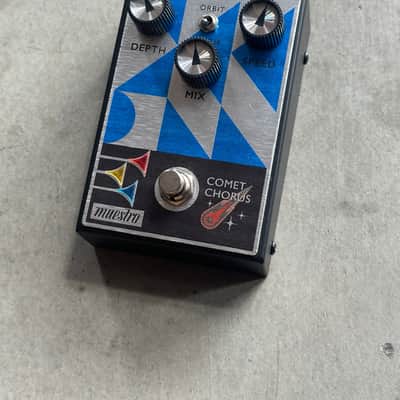

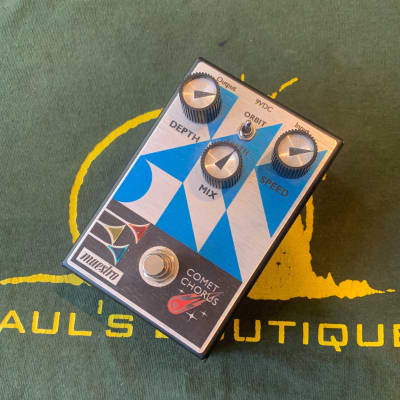

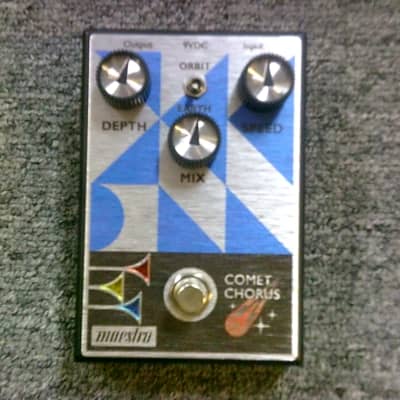

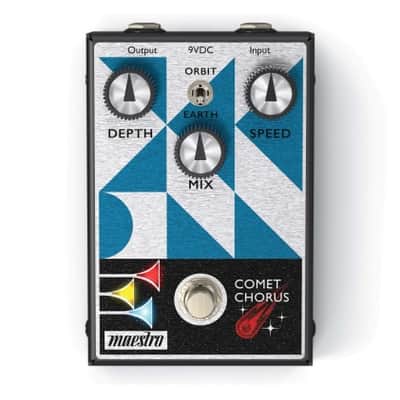

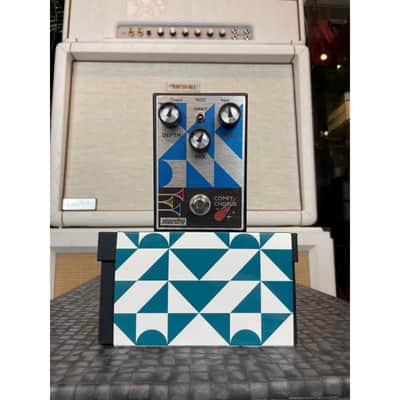

Comet Chorus

The Maestro Comet Chorus pedal utilizes iconic analog bucket brigade device (BBD) technology to deliver warm, classic chorus tones. It features a Mode toggle switch for increased sonic versatility, offering Earth mode for an optimized, shimmering chorus effect and Orbit mode for amplitude modulation to simulate the sonic complexities of a rotary speaker. An internal trim pot labeled Orbit allows users to adjust the level of the rotary speaker Orbit effect to their preference.

The pedal has an intuitive 3-knob control layout for Depth (amount of pitch variation), Speed (modulation rate), and Mix (blend of pitch modulated signal with the dry signal). The true bypass footswitch triggers LED lights in the Maestro logo when active.

Technical Specifications:
- Switches: True Bypass footswitch, Orbit/Earth Mode toggle switch
- LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
- Signal Processing: All-Analog
- Power Requirements: 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
- Current Draw: 55.4 mA
- Power On Switch: Incorporated into the input jack
- Input Impedance: 470 kOhms
- Output Impedance: 1 kOhms
- Switching Type: True Bypass
- Dimensions: 5.04" x 3.45" x 2.5" (128.0 mm x 87.6 mm x 63.5 mm)
- Weight: Net: 1.25 lb. (567.0 gm. ), Gross: 1.61 lb. (730.3 gm. )
- Internal Trim Pot: Allows adjustment of the amount of the rotary speaker- style effect blended into the sound when the Mode switch is in the Orbit position
