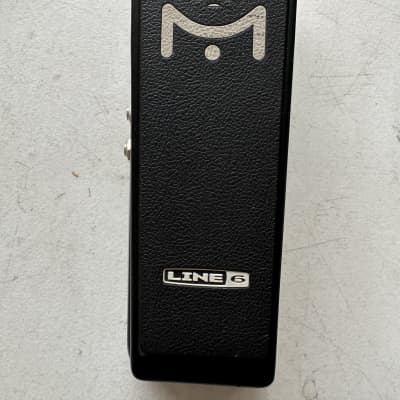

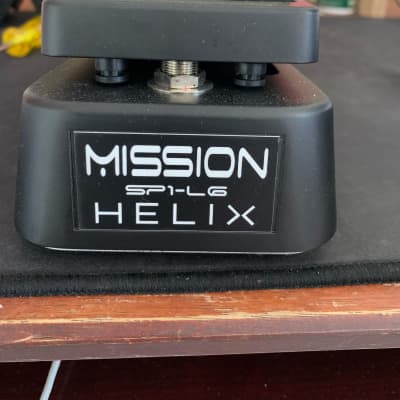

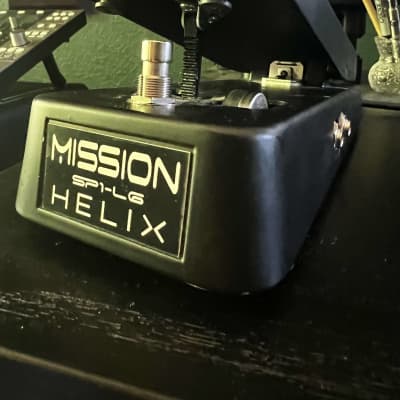

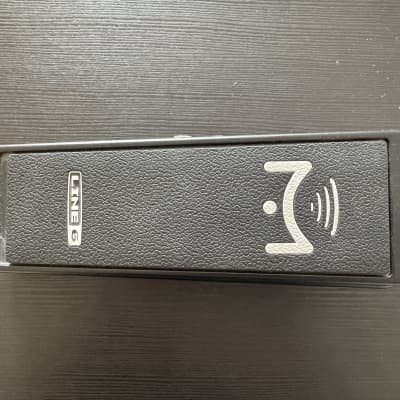

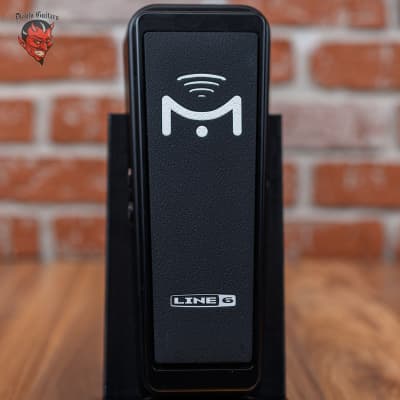

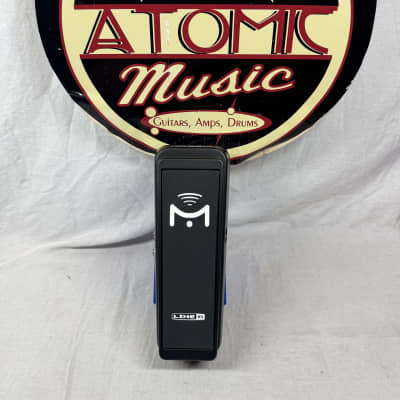

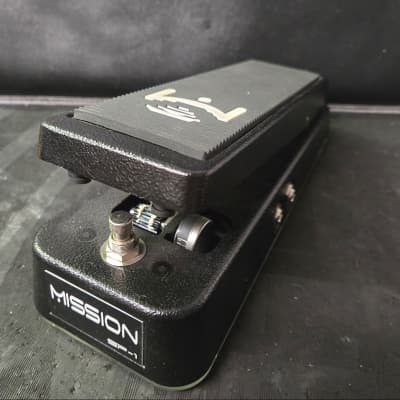

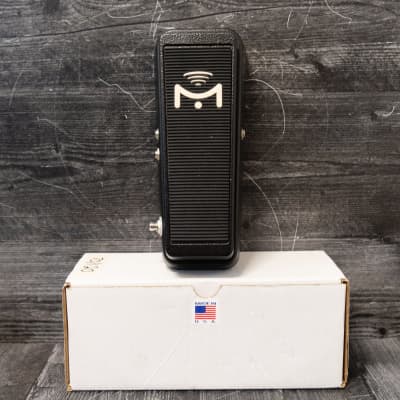

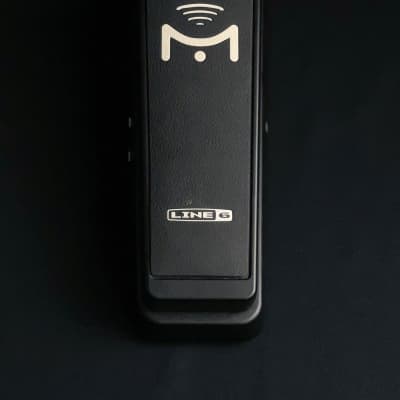

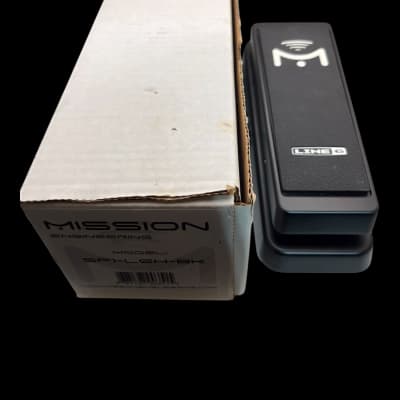

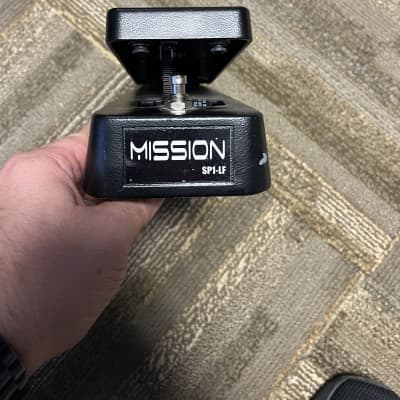

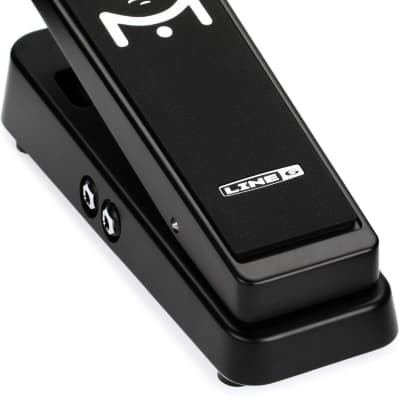

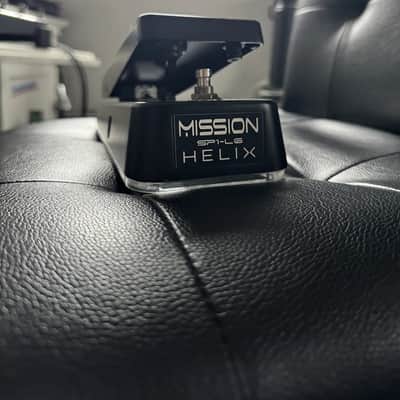

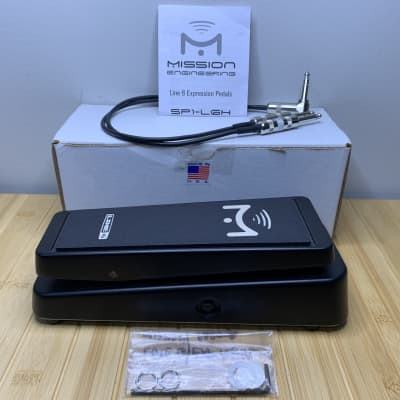

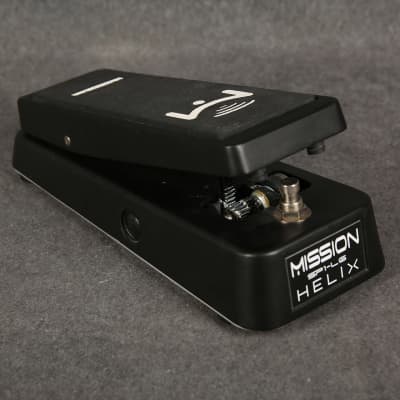

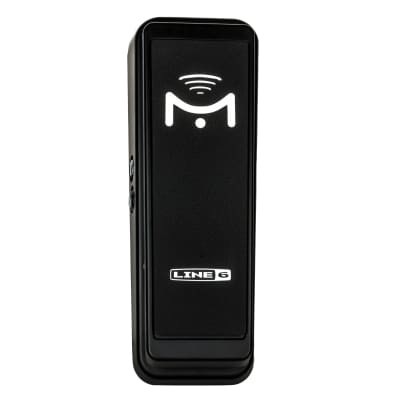

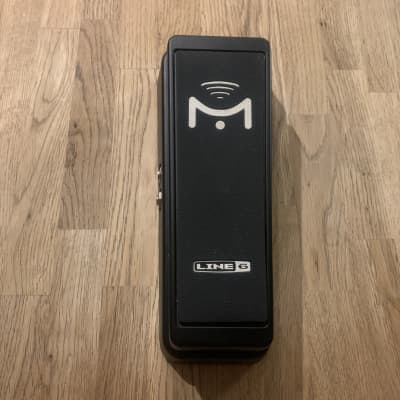

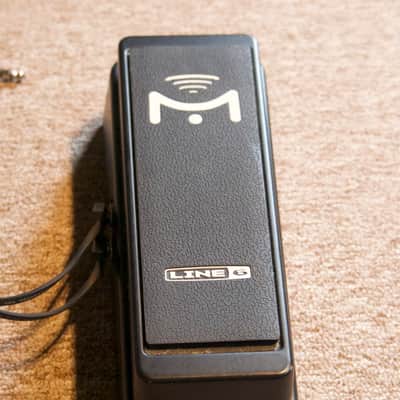

SP1-L6 Helix Expression Pedal

The Mission Engineering SP1-L6H Expression Pedal is designed specifically for use with Line 6 devices that support an expression pedal and toe switch. It is compatible with the following Line 6 devices: Helix Rack, Helix Rack Controller, HX Stomp, HX Stomp XL, and DL4 MK2.

Key specifications of the SP1-L6H Expression Pedal include:
- Pedal dimensions: 10″ x 4″ x 3″
- Weight: 3.2lb
- Potentiometer: 10K Ohm Linear
- Switch: TS Momentary

The pedal connects to the Line 6 Helix Rack or Rack controller with a single TS cable for expression and a single TS cable for the toe switch. For use with other devices, a TRS cable is required. The switch output may be left unconnected if this function is not required.

The SP1-L6H Expression Pedal allows for precise and natural response, enabling expressive control over volume, wah, and rotary effects. Additionally, it incorporates a convenient toe switch to turn effects on and off without requiring a separate footswitch.

Other Line 6 devices do not have a toe switch input. If a toe switch input is not available for other Line 6 products, the Mission EP1-L6 is recommended.
