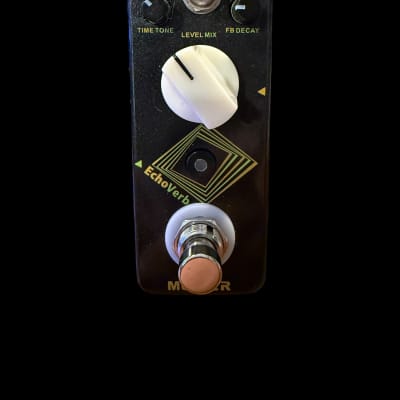

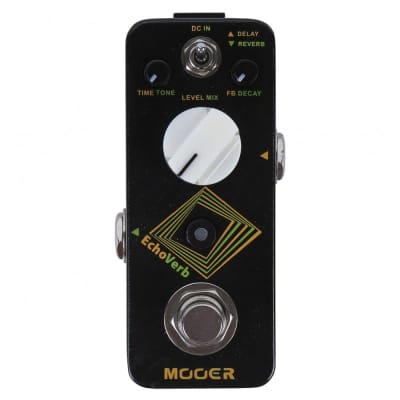

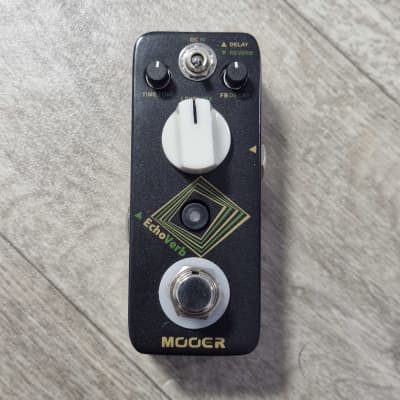

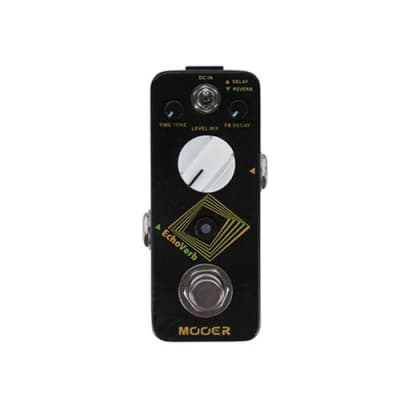

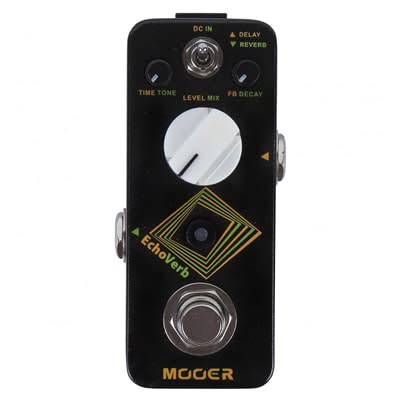

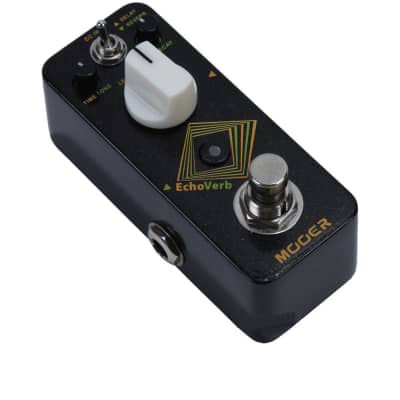

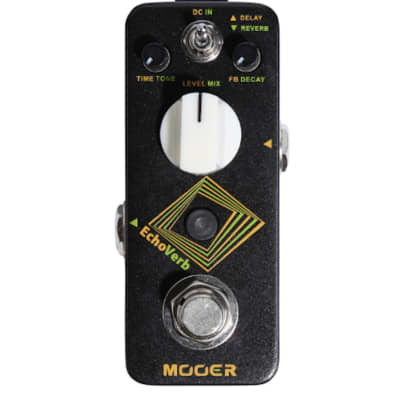

EchoVerb

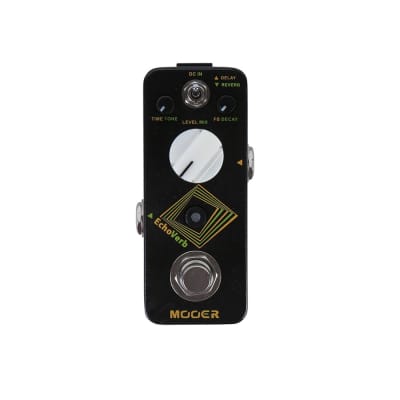

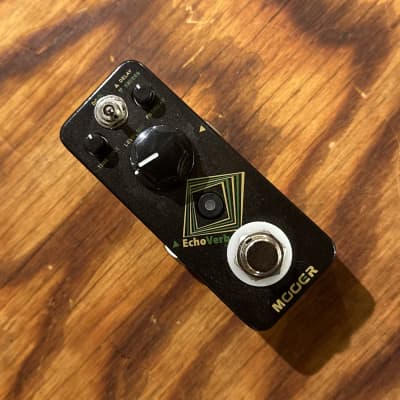

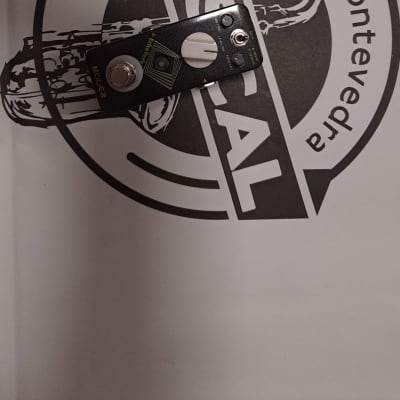

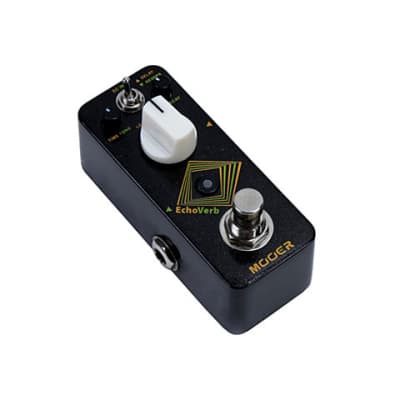

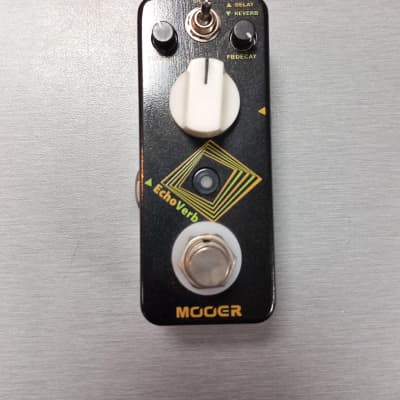

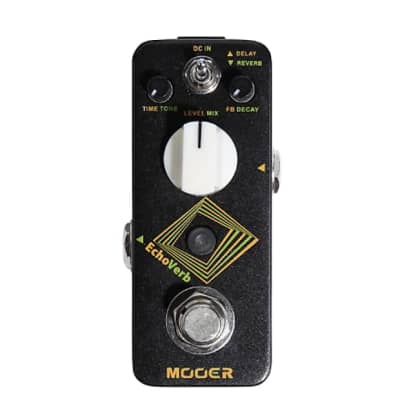

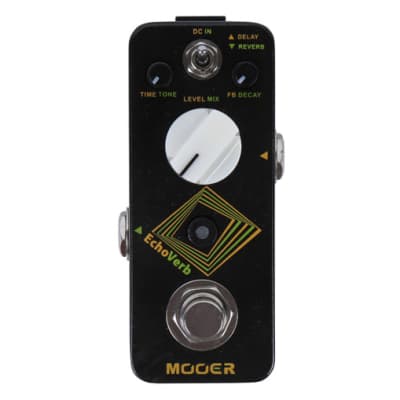

The EchoVerb by MOOER is a compact pedal that combines high-quality reverb and digital delay effects. It offers versatile controls that enable users to dial in the effects for various applications, from subtle ambient enhancement to impactful wet special effects. The pedal features the following specifications:

- Material: Metal
- Signal Input: 1/4" Monaural Jack (impedance: 470K Ohms)
- Signal Output: 1/4" Monaural Jack (impedance: 100 Ohms)
- Power Supply: DC 9V adapter (center minus plug) - not included
- Working Current: 160mA
- Dimensions: Approximately 3.5 * 9 * 3cm / 1.4 * 3.5 * 1.2in
- Weight: Approximately 145g / 5.1oz
- True bypass footswitch and LED indicator light

The EchoVerb pedal also includes specific controls for adjusting the delay and reverb effects:
- LEVEL/MIX control: Adjusts the volume of the delay and the wet/dry mix of the reverb.
- TIME/TONE control: Adjusts the delay time (45ms-1600ms) and the tonality of the reverb.
- FB/DECAY control: Adjusts the delay feedback and the reverb decay (from room to mountains).

Additionally, the pedal is equipped with tap tempo functionality, which can be engaged via the footswitch or a small LED button, allowing users to synchronize the delay to their desired tempo.
