Micro Amp

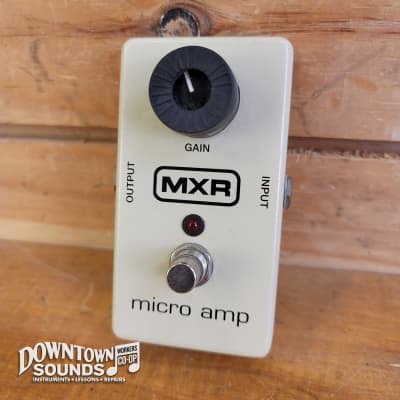

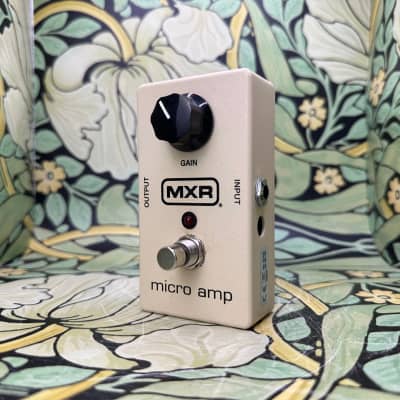

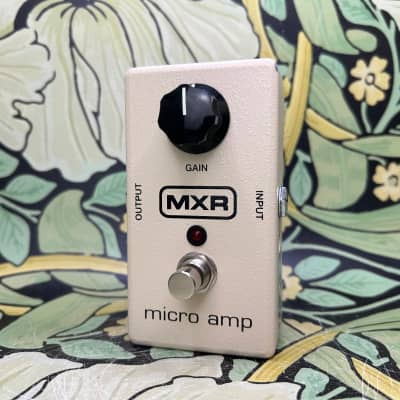

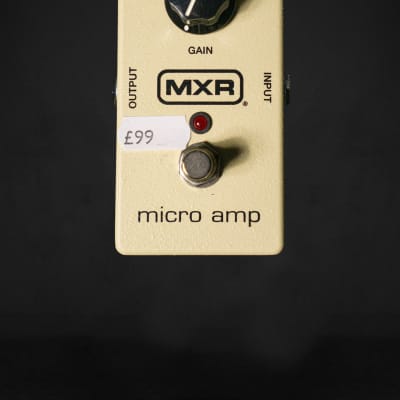

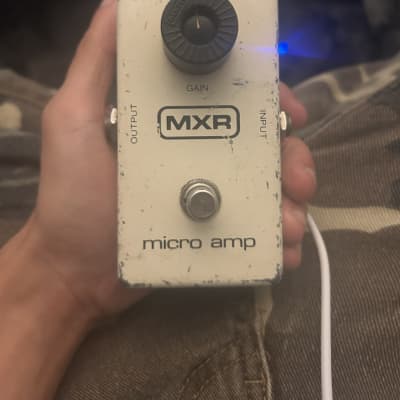

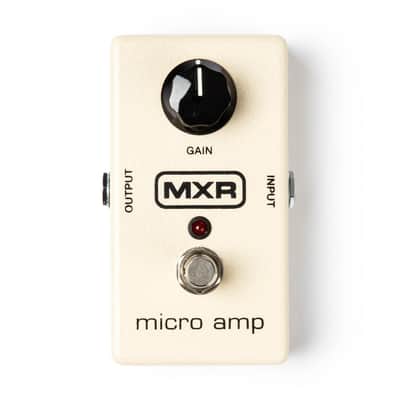

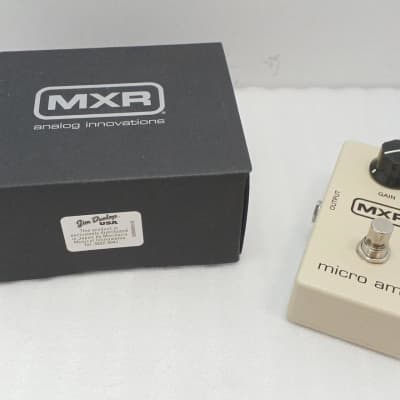

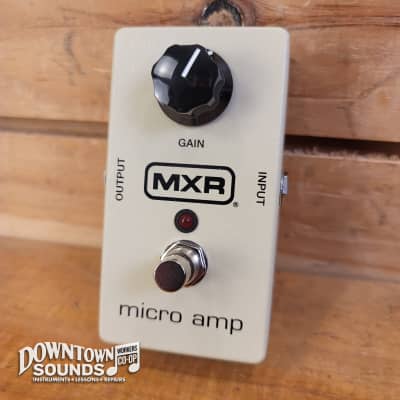

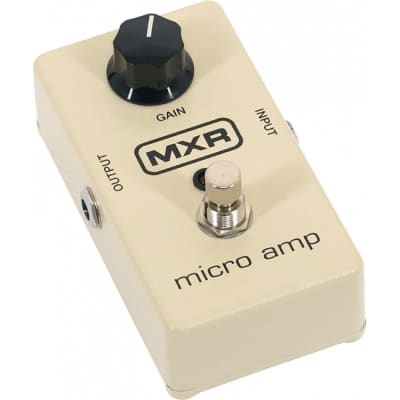

The MXR M133 Micro Amp is a versatile pedal designed to provide a precise amount of gain boost, with a maximum gain of up to +26dB. It is suitable for various use-cases, including boosting the signal for lead work, compensating for unmatched output between different guitars, and maintaining a consistent signal level in long effects chains.

Key Specifications:
- Input Impedance: 1 MΩ
- Output Impedance: 470 Ω
- Maximum Output Level: +6 dBV
- Noise Floor: -80 dBV
- Gain Control: +0.5 dB to +26 dB
- Frequency Response: 20 Hz to 20 kHz, +0 dB, -1.4 dB
- Bypass: Hardwire
- Current Draw: 2.5 mA
- Power Supply: 9 volts DC

The pedal can be powered by a 9-volt battery, a Dunlop ECB003/ECB003E 9-volt adapter, or a power supply such as the DC Brick™, Iso-Brick™, and Mini Iso- Brick™ (not included).

The MXR M133 Micro Amp is a compact and reliable solution for musicians seeking a precise and powerful signal boost for their performances and recordings.
