crocodile tail switcher

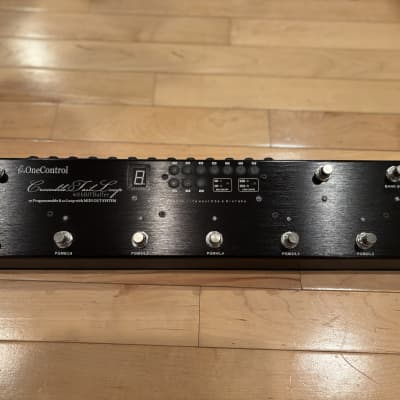

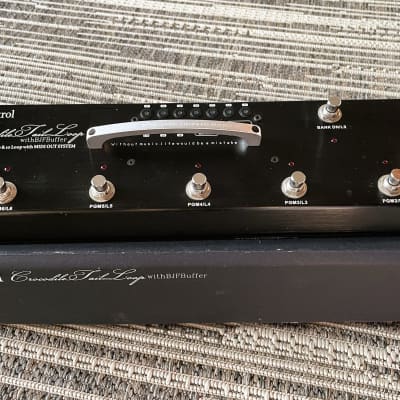

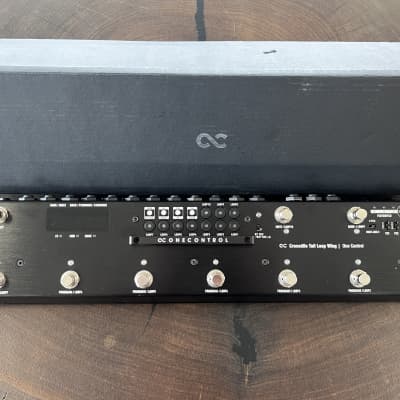

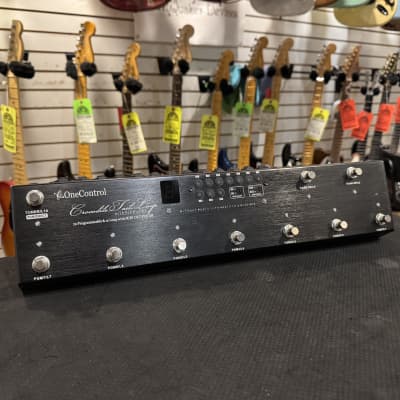

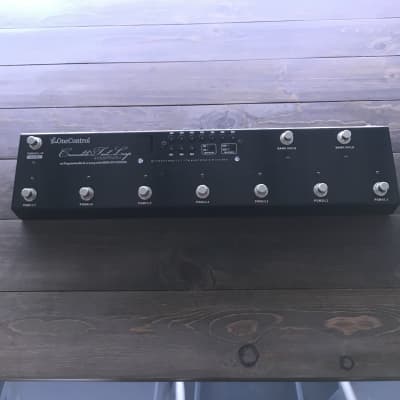

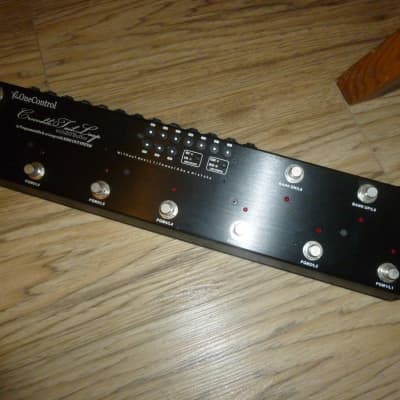

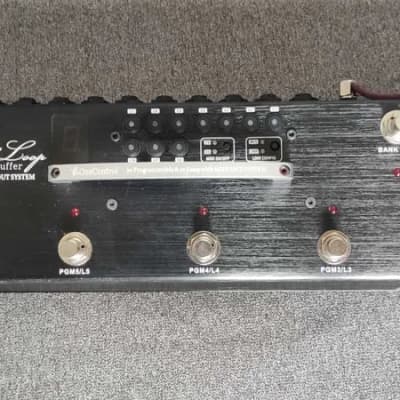

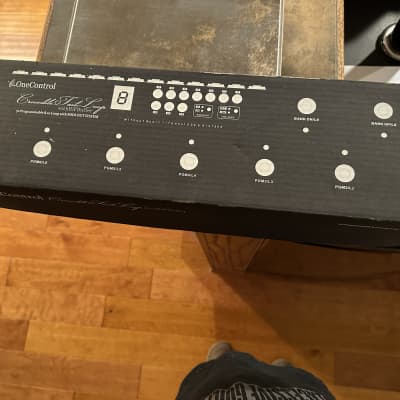

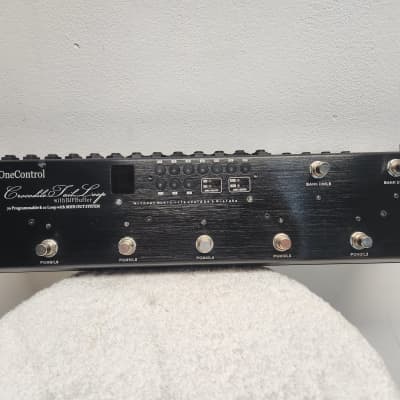

The One Control Crocodile Tail Loop is a versatile and advanced pedal switcher designed to provide comprehensive control over guitar effects pedals. The Crocodile Tail Loop OC10W is the flagship switcher from One Control, offering a wide range of features and functionalities. It allows users to create up to 70 presets with an easy push-button auto-saving system. The OC10W features the BJF Buffer circuit, designed by Björn Juhl, to maintain signal integrity, and it can also be operated in true bypass mode.

Key technical specifications and features of the Crocodile Tail Loop OC10W include:
- Power Supply: DC9V
- Current Drain: 450mA
- Input impedance: 500K ohm
- Output impedance: 10K ohm Max
- Total Loops: 10 (7 series loops and 3 separate loops)
- MIDI: 1 MIDI In and 1 MIDI Out/Thru
- Bluetooth connectivity with WINGLINK iOS app for remote control and programming
- Full MIDI control with 168 programmable memory slots
- Three footswitches (FS1, FS2, FS3) and an 8-pin DIN connector for amp switching
- Tuner out with mute switch
- Ability to link two OC10W units together with a LAN cable for expanded control
- Selectable buffer switching and amp channel switching capabilities
- MIDI input and output/thru for seamless integration with MIDI controllers and devices
- Sync and Link functions for remote control and linking multiple units
- Stereo functionality for using stereo effects in combination with mono pedals

The Crocodile Tail Loop OC10W offers exceptional flexibility and control over pedalboard setups, making it a valuable tool for professional musicians and enthusiasts seeking precise control over their effects chains.
