Dig Deep by OPFXS

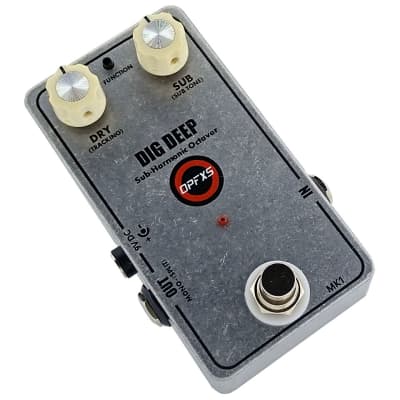

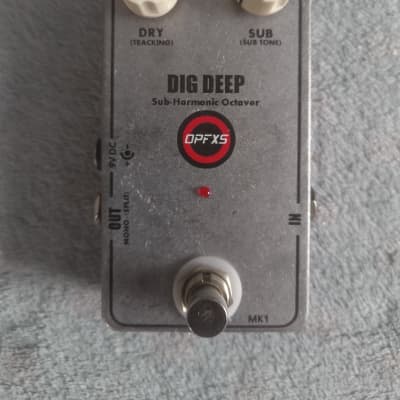

The Dig Deep by OPFXS is a sub-harmonic octaver pedal designed to generate a monophonic bass line from the lower strings without affecting the upper strings. It is suitable for use with electric and acoustic guitars, as well as other instruments and sound sources. The pedal features the following technical specifications and functionalities:

- Controls:
- DRY: Sets the level of the dry input signal, with the ability to boost or reduce gain.
- SUB: Sets the level of the lower octave.
- Function switch settings for SUB ATTACK, SPLIT OUT, TRACKING, and SUB TONE.

- Internal Trimmer:
- Sets the input level to prevent distortion with high-level output instruments.

- Function Switch Settings:
- SUB ATTACK: Toggles between fast and slow attack of the octave down signal.
- SPLIT MODE: Toggles between MONO and SPLIT output, allowing for routing of DRY and SUB to different audio paths.

- Tracking:
- 8-step setting to adjust the octave down response to different guitars and pickup types.

- Sub Tone:
- 12-step setting to adjust the tone of the sub-octave from dark to bright.

- Powering:
- 9V DC with center negative DC Jack 2.1mm (BOSS™ standard).
- Current consumption: 90mA in MONO mode, 100mA in SPLIT mode.

- Input/Output:
- Input nominal level: instrument
- Input Impedance: 500k Ohm
- Output Impedance: 600 Ohm
- Bypass: True-bypass

- Dimensions and Weight:
- Housing size: Standard
- Dimensions (WxHxD): 60 x 47 x 112 mm
- Weight: 0.22 kg

The Dig Deep pedal is also suitable for use with acoustic guitars and is designed to work well with different types of instruments and sound sources. It is recommended to place the pedal before any pedals/effects that alter the harmonic content for best and accurate tracking. Additionally, the pedal is not battery-powered and requires a 9V DC power supply.

The pedal is engineered to work with guitar but responds well to different types of instruments and sound sources. For best and accurate tracking, it is recommended to place the Dig Deep before any pedals/effects that alter the harmonic content.
