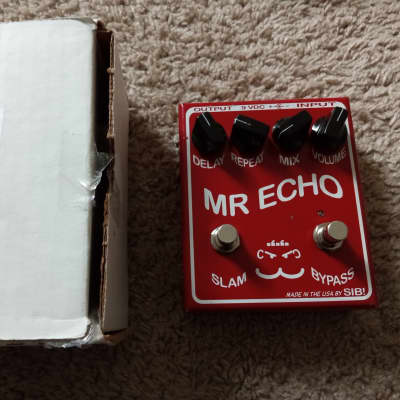

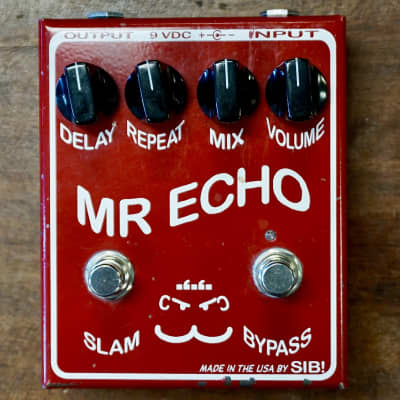

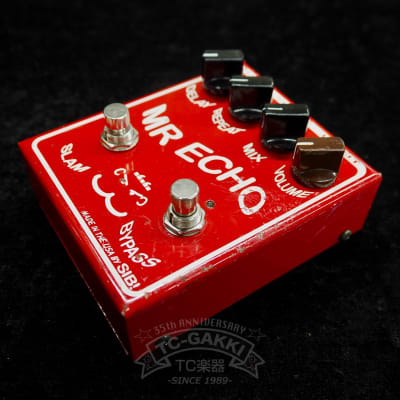

Mr. Echo

The SIB Electronics Mr. Echo is a delay pedal designed for guitar effects. It offers the following technical specifications and features:

- VOLUME: Controls the overall output
- MIX: Controls the balance between Delayed (echo) signal and Input (dry) signal
- REPEAT: Controls the number of echoes present at the output
- DELAY: Controls the delay time
- BYPASS: True Bypass
- SLAM: The SLAM switch is a momentary, non-latching switch that, when depressed and held down, sets the delay time to its shortest delay and repeats to the maximum setting, resulting in saturated, runaway echoes. The SLAM effect offers several useful/creative performance applications, including lead line emphasis and lead beat punctuation.

Additional specifications:
- INPUT IMPEDANCE: 1 mega ohms
- OUTPUT IMPEDANCE: 8 k ohms
- DELAY RANGE: 0 - 485 milliseconds
- DIMENSIONS: 4 5/8” L x 3 ¾” W x 2 ¼” H (feet & knobs)
- Heavy-Duty Powder Coated Rugged Steel Chassis
- AC / DC Adaptor: STD 9V Negative tip; Boss, Ibanez, etc.

The pedal also features a volume control for level matching or boost, and the delay time is adjustable with a passive volume pedal via the control jack. It is hand-built in the USA and housed in an abuse-resistant steel case.

The SIB Electronics Mr. Echo Plus offers similar features with a delay range of 30 - 585 milliseconds and additional controls for hands-free delay time adjustment using a passive volume pedal.
