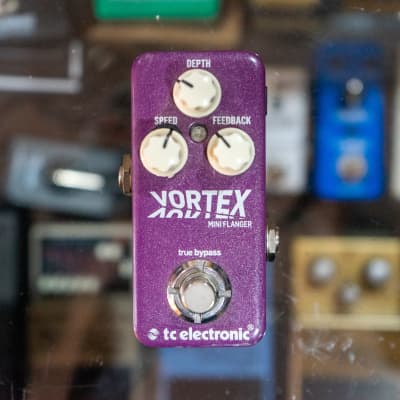

Vortex Mini

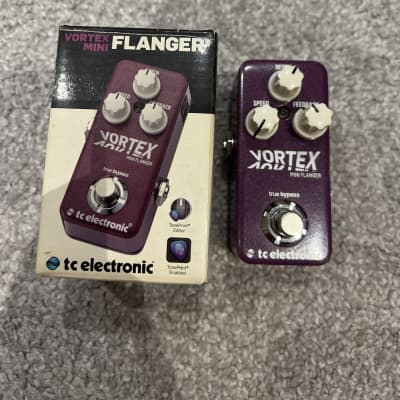

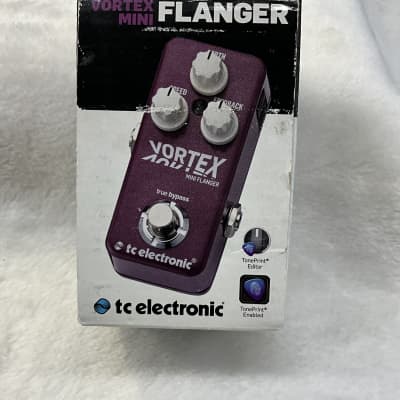

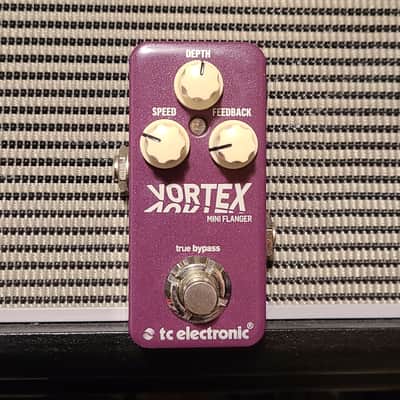

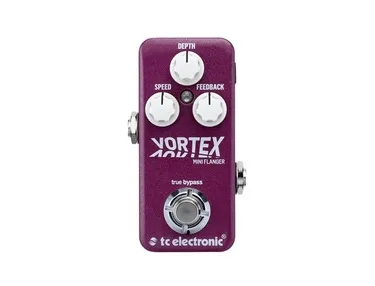

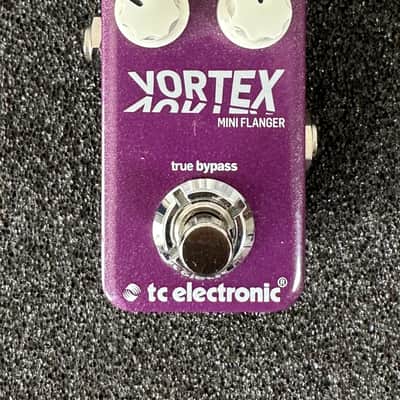

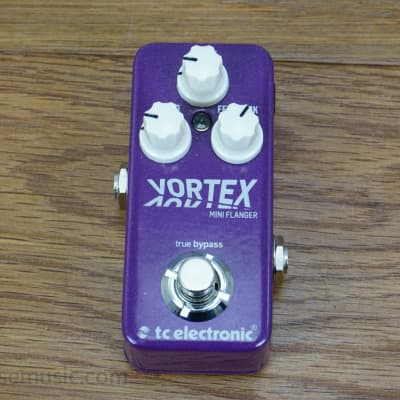

The Vortex Mini Flanger by TC Electronic is a compact and versatile flanger pedal designed to deliver a wide range of classic and modern flange effects. Here are the technical specifications and features:

- Bypass mode: True Bypass
- Signal circuitry: Analog dry-through
- Dimensions: 48 x 48 x 93 mm (1.9 x 1.9 x 3.7 inches)
- Input connector: Standard ¼” jack – mono/TS
- Output connector: Standard ¼” jack – mono/TS
- Power input: Standard 9 V DC, center negative, >100 mA (power supply not included)
- Input impedance: 1 MΩ
- Output impedance: 100 Ω
- USB port: Mini USB connector for uploading and editing custom TonePrints and for software updates

The Vortex Mini Flanger offers two modes: a classic pedal flanger sound capable of delivering subtle chorus tones to classic Van Halen jet flanger swoosh, and a tape mode that provides the psychedelic sound of the original flange tones of Jimi Hendrix and Led Zeppelin, including "through zero" sounds.

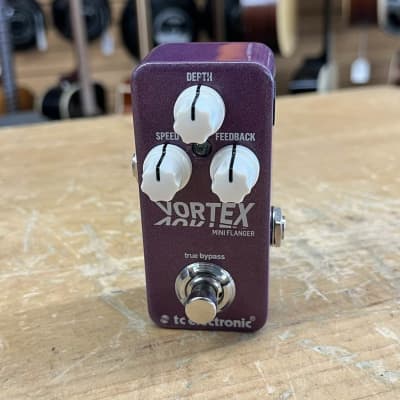

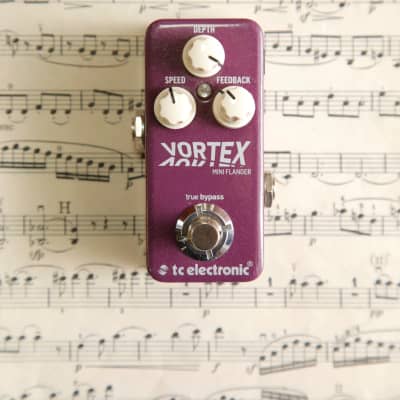

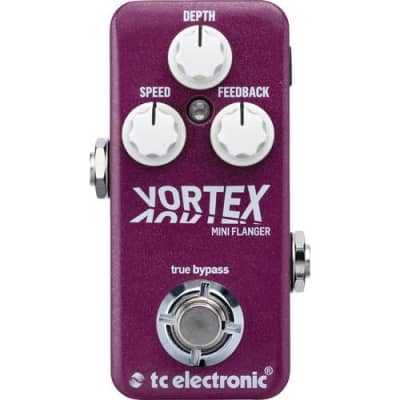

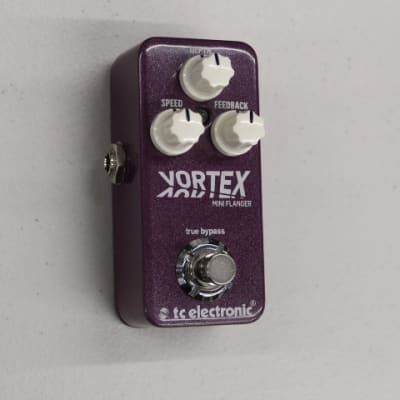

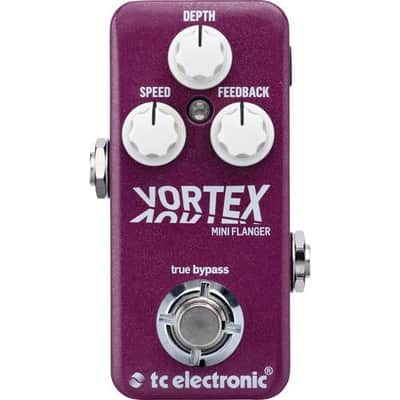

Additionally, the pedal features essential onboard controls including Speed, Depth, and Feedback knobs for precise control over the flange effect. It also supports TonePrint technology, allowing users to access a wide range of signature sounds created by renowned artists and customize their own unique flanger tones using the TonePrint Editor.

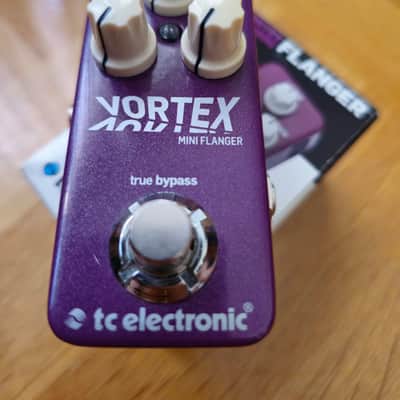

The pedal is designed with True Bypass, ensuring that when bypassed, it has zero influence on the tone, resulting in optimum clarity and zero loss of high-end. The analog dry-through feature ensures that the original tone remains pure and without any latency.
