Royal Flush

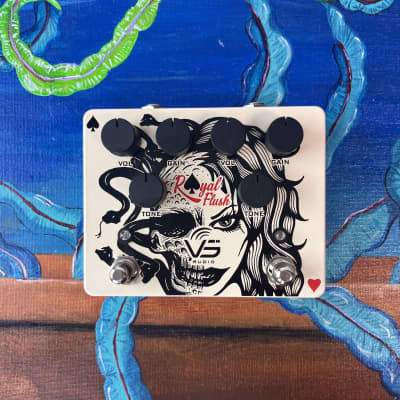

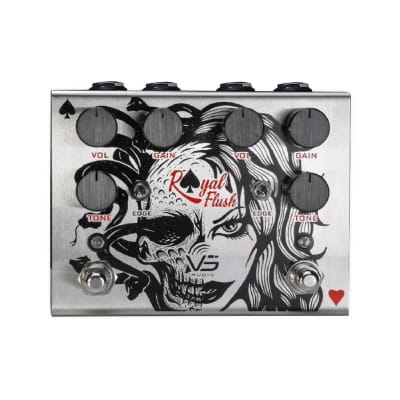

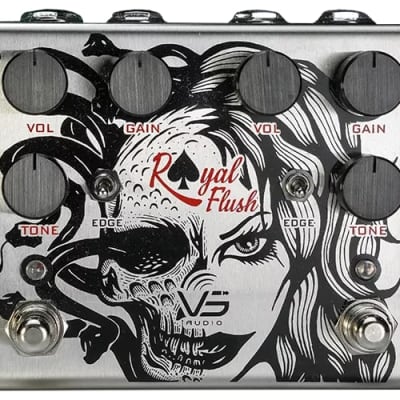

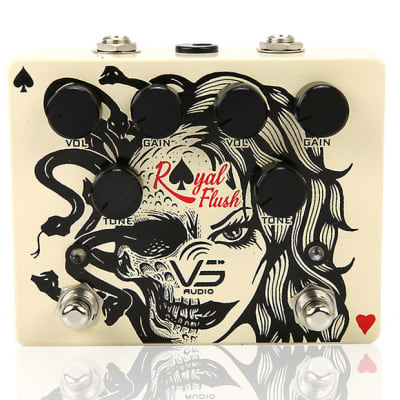

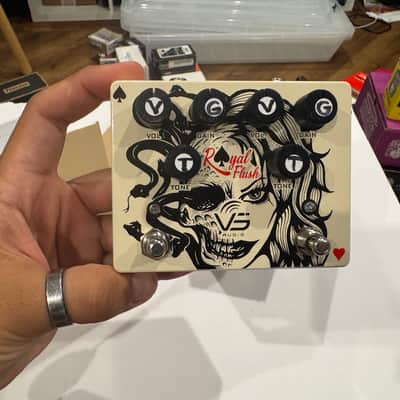

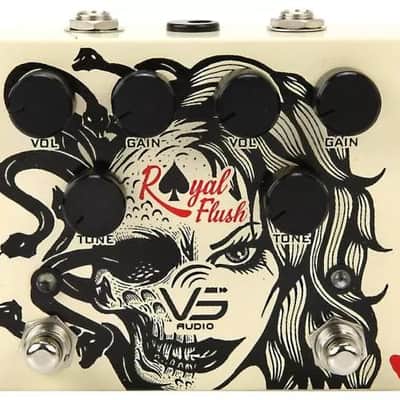

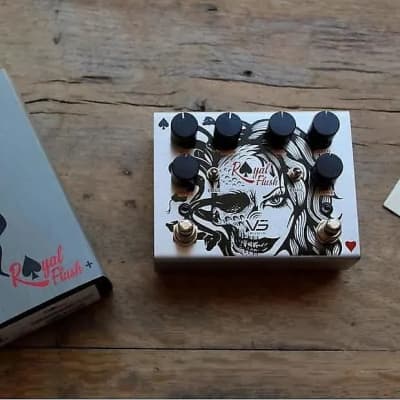

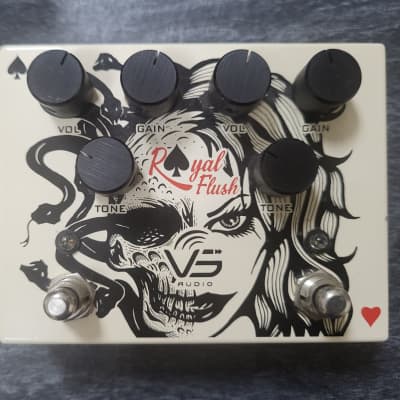

Royal Flush by VS Audio

Overview:

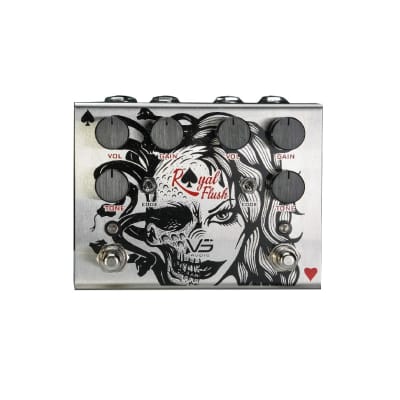

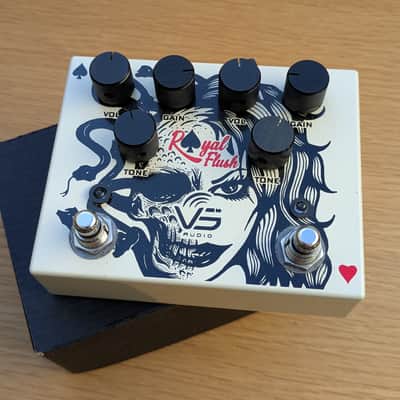

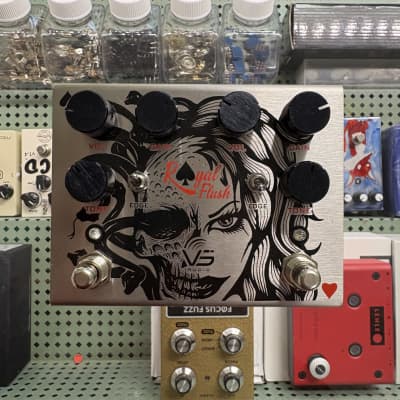

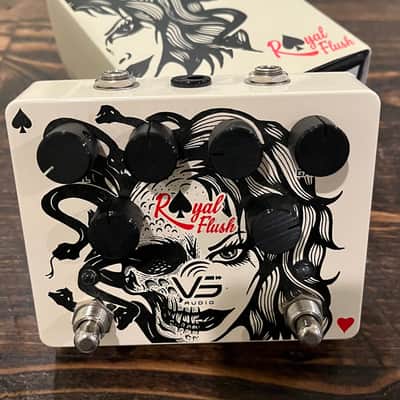

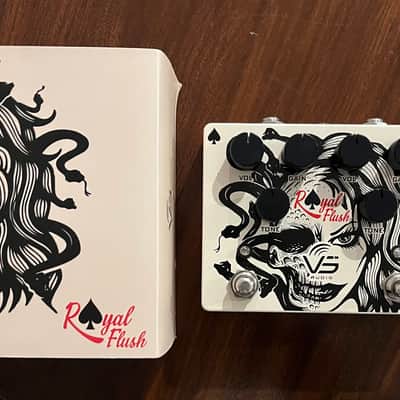

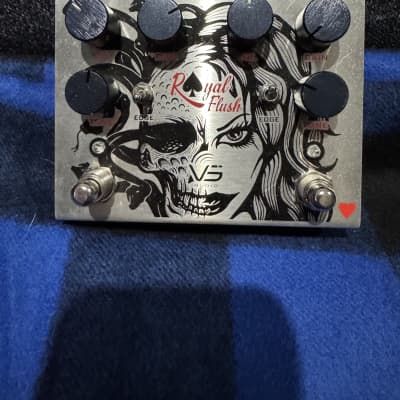

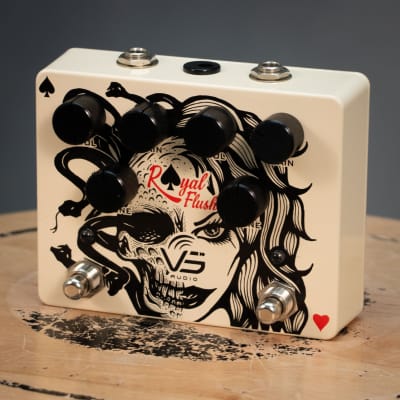

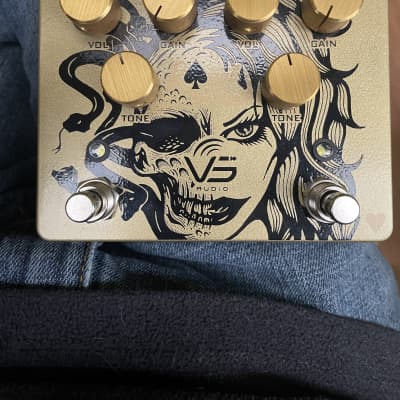

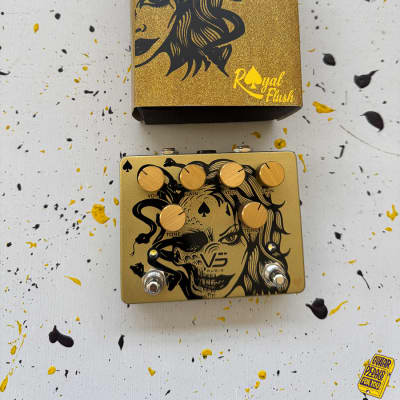

Royal Flush is a dual-channel overdrive pedal with separate controls for each channel. The first channel is a low-gain overdrive designed to create a tube amp "early breakup" overdrive for rhythm tones with clarity. The second channel is a medium-gain overdrive capturing a creamy and rich amp-like distortion crunch. Engaging both channels emulates a more aggressive cranked tube amp sound with substantial sustain.

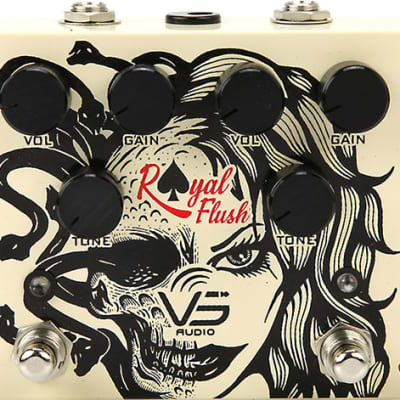

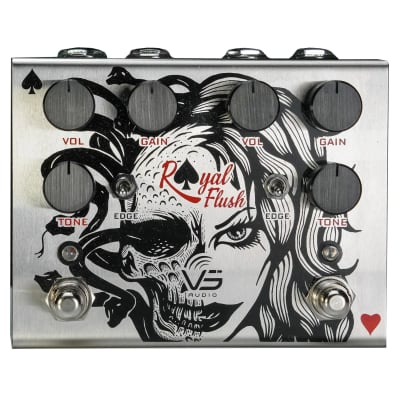

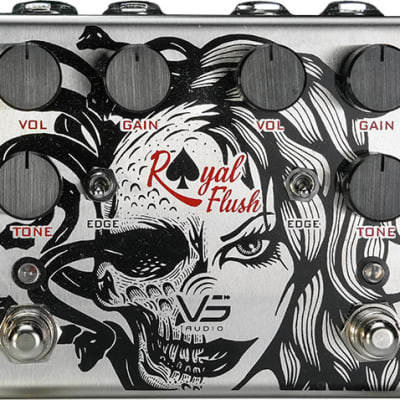

Controls:
- VOL knob: Controls the output of the effect.
- GAIN knob: Controls the amount of distortion.
- TONE knob: Controls the color of the distorted signal.
- FOOTSWITCH: Toggles the effect on/bypass (LED indicates on). When the effect is off and the button is pressed and held for more than 2 seconds, the effect turns on for as long as the button is pressed (Parallel Mode).

Features:
- Dual Channel Overdrive
- Three Different Voices
- Parallel Mode Relay Switching
- True Bypass
- Aluminium Knobs
- Silkscreen Layout
- Powder Coated Aluminum Enclosure

Specifications:
- Input impedance: > 1MΩ
- Output impedance: < 10kΩ
- Current Draw: 25mA
- Dimensions: 119.5mm (W) x 94mm (D) x 34mm (H)

For more information, please visit the [official VS Audio website](https://www.vsaudio.com/wp- content/uploads/2016/02/Royal_Flush_Data_Sheet.pdf).
