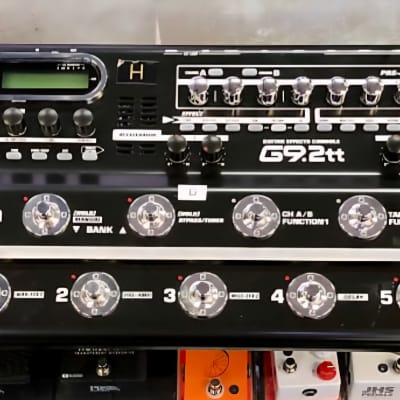

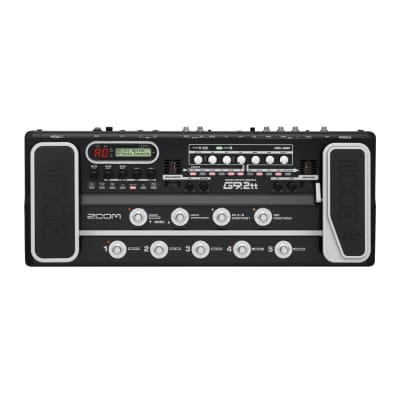

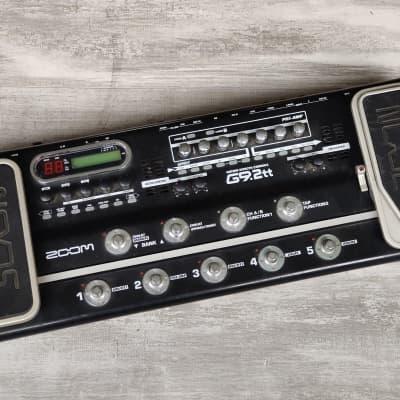

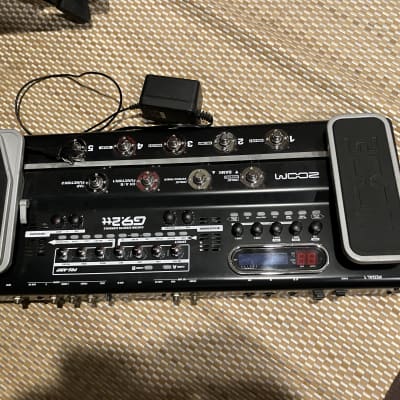

The Zoom G9.2tt Twin Tube Guitar Multi-Effects Pedal/USB Interface offers a comprehensive set of features and technical specifications suitable for professional use. Here are the details:
- Effect Types: 120
- Effect Modules: 10
- Maximum Simultaneous Effects: 10
- Patch Memory: User 100 + Preset 100
- Sampling Frequency: 96kHz
- A/D Conversion: 24-bit, 64 times over-sampling
- D/A Conversion: 24-bit, 128 times over-sampling
- Signal Processing: 32-bit
- Frequency response: 20Hz-40kHz+1.0dB, -3.0dB(10kΩ load)
- Guitar Input: 1/4" phone jack (Rated input level: -10dBm, Input impedance:
1MΩ)
- AUX Input: 1/8" stereo phone jack (Rated input level: -10dBm, Input
impedance: 10kΩ)
- External Return: 1/4" phone jack (Rated input level: -10dBm / +4dBm)
- Line Output (L/MONO, R): 2 x 1/4" phone jack (Rated output level: -10dBm /
+4dBm, Maximum output level: +19dBm, Output load impedance: 10kΩ or more,
Output Impedance: 1kΩ or less)
- Headphone Output: 1/4" stereo phone jack (Rated output: 60mW / 32Ω load,
20mW / 300Ω load, Output impedance: 47kΩ)
- External Send: 1/4" phone jack (Rated output level: -10dBm / +4dBm)
- Tube Circuitry: 2 x 12AX7
- MIDI: IN/OUT
- USB Interface: 16-bit, 32kHz/44.1kHz/48kHz
- Display: 2-digit, 7-segment LED, backlit LCD
- Power Requirements: 15V AC, 1.5A

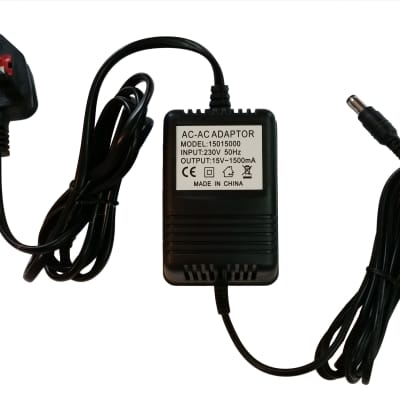

- Supplied Accessory: AC adaptor(AD-0012)
- Dimensions (mm): 595(W) x 235(D) x 85(H)
- Weight: 5.5kg
This pedal is designed to provide a wide range of effects and precise control over tone parameters, making it suitable for professional guitarists and studio use. The inclusion of tube circuitry enhances the organic tone control, and the USB interface adds versatility for recording and integration with digital audio workstations.
