The Ammoon AP-09 Nano Loop electric guitar effect pedal features a super mini size made of aluminum alloy, providing convenience and durability. It offers a maximum recording time of 10 minutes, unlimited overdubbing, undo, redo, and delete functions. The pedal has a simple operation with one key to achieve almost all functions and includes a knob for adjusting the output volume. Additionally, it is equipped with a true bypass function to protect the integrity of the original signal and comes with a USB cable for uploading and downloading audio files from a PC.
Technical Specifications:
- Brand: Ammoon
- Model: AP-09
- Material: Aluminum Alloy
- Maximum Recording Time: 10 Minutes
- Maximum Overdubbing Times: Unlimited
- Input: 1/4″ Monaural Jack (Impedance: 470K Ohms)
- Output: 1/4″ Monaural Jack (Impedance: 100K Ohms)
- Working Current: 94-96mA

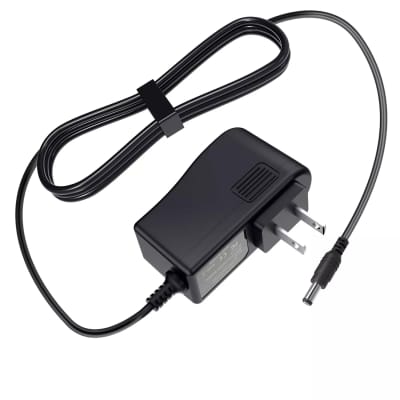

- Power Supply: DC 9V 500mA Adapter (not included)
- Item Size: 7.5 * 4 * 4.5cm / 3 * 1.6 * 1.8in
- Item Weight: 145g / 5.1oz
- Package Size: 10.5 * 6.5 * 5cm / 4.1 * 2.6 * 2in
- Package Weight: 222g / 7.8oz
Note: The power adapter is not included, and only WAV audio files can be uploaded to the looper from the computer.
Watch the latest video demos and reviews for the AP-09 Nano Loop from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

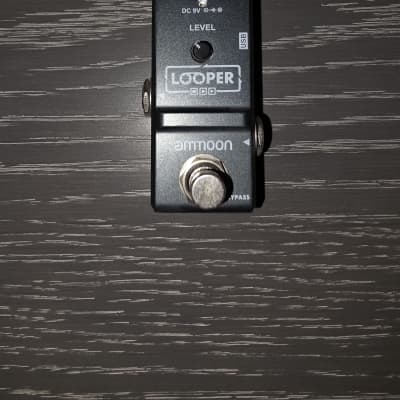

Below are live Reverb listings for the Ammoon AP-09 Nano Loop from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.
