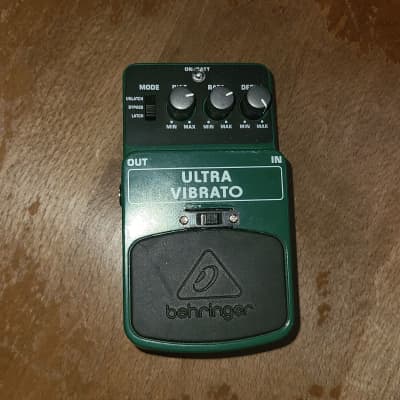

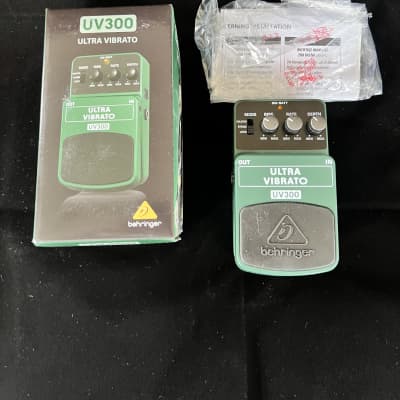

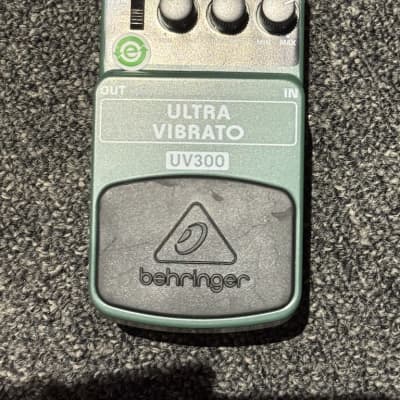

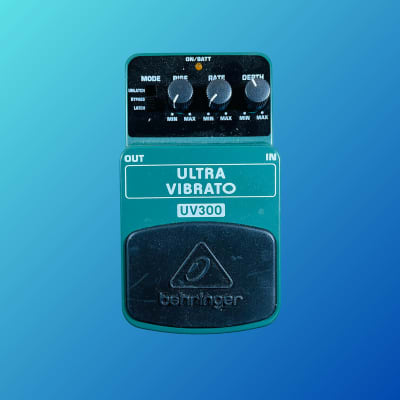

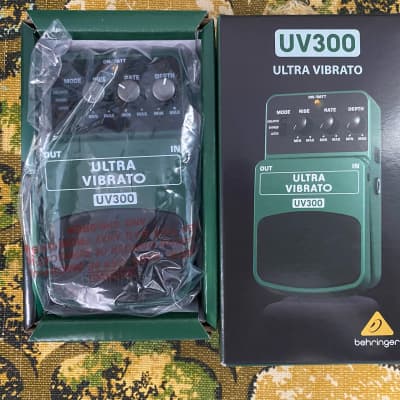

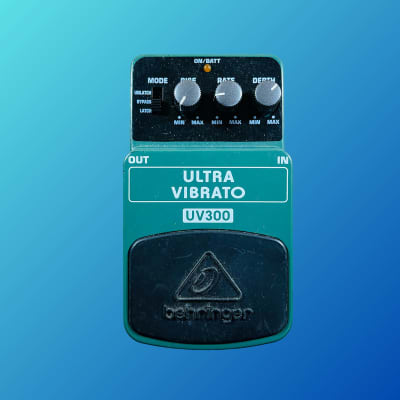

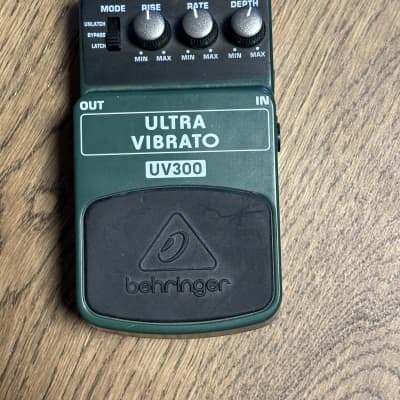

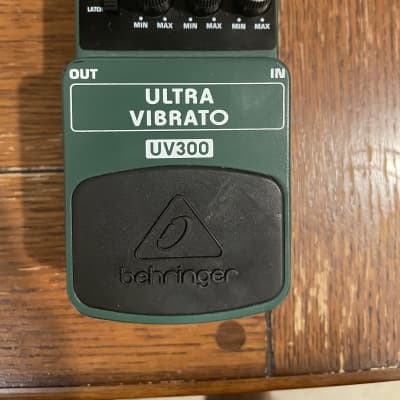

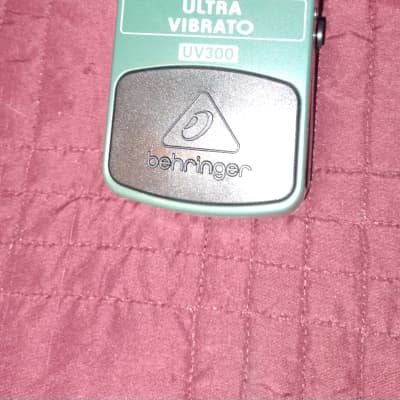

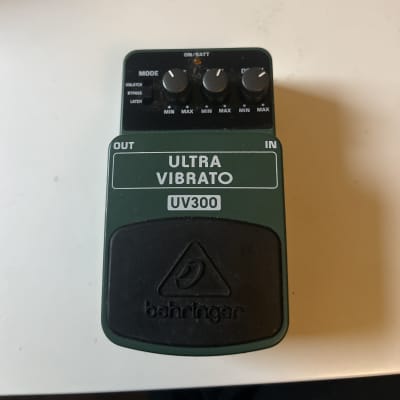

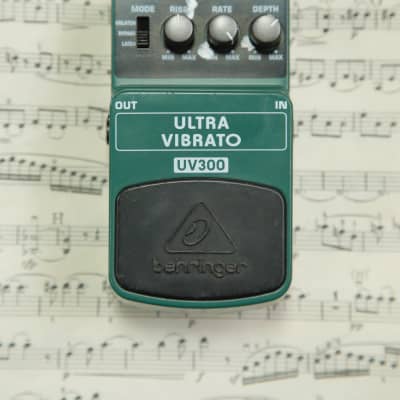

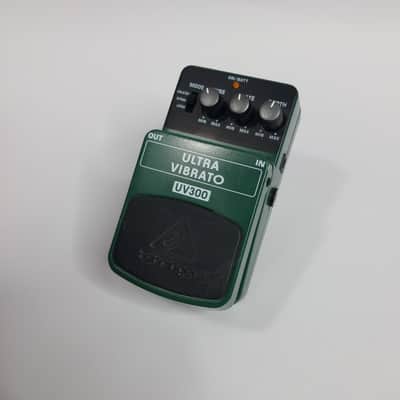

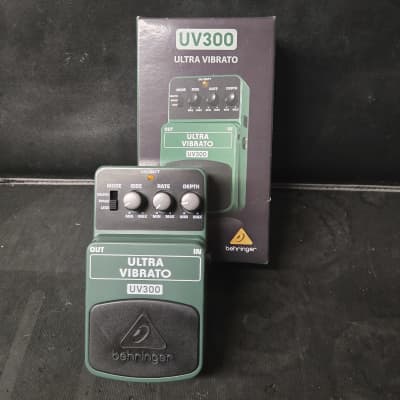

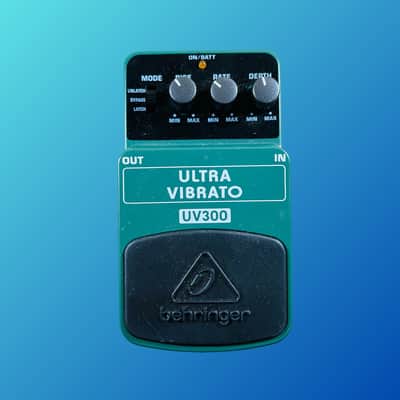

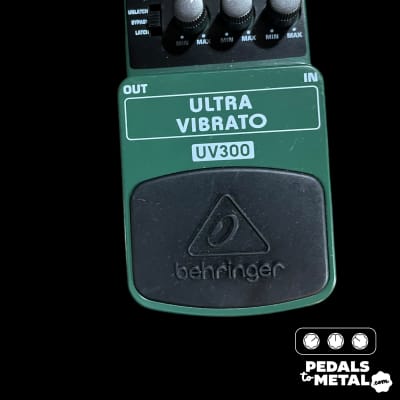

UV300 Ultra Vibrato

The Behringer UV300 Ultra Vibrato is a high-quality effects pedal designed to deliver classic pitch modulation and dimensional vibrato effects from the '60s and '70s. The pedal features comprehensive controls that allow users to tailor the performance to their specific needs. Here are the technical specifications and features of the UV300 Ultra Vibrato:

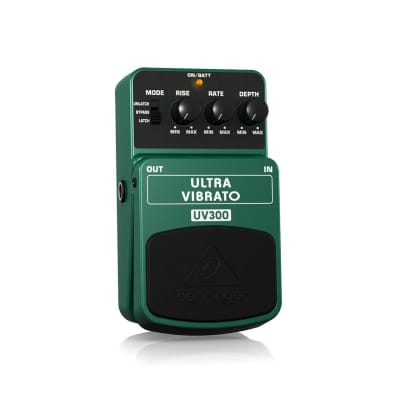

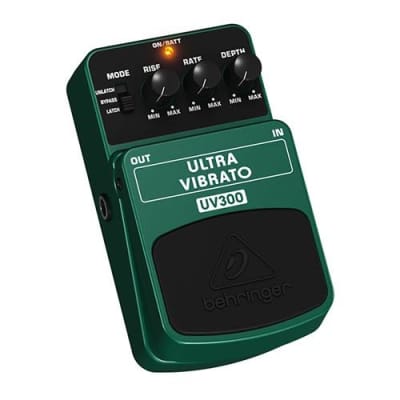

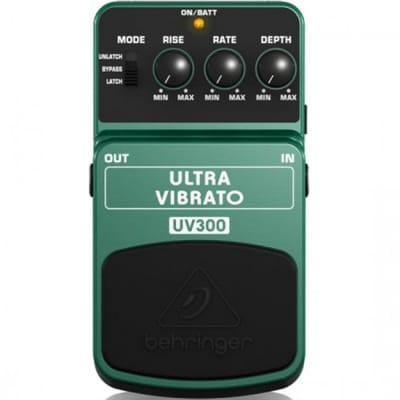

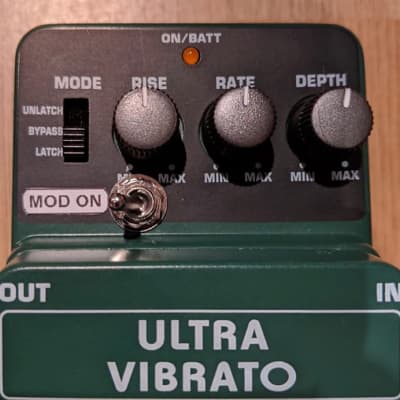

Controls:
1. MODE switch: Changes the functionality of the effects pedal footswitch. It can be set to LATCH, UNLATCH, or BYPASS mode.
2. RISE control: Adjusts the time needed for the effect to reach its maximum detuning.
3. RATE control: Determines the speed of the vibrato effect.
4. DEPTH control: Adjusts the intensity of the pitch modulation effect.
5. ON/BATT LED: Illuminates when the effect is activated and serves as a battery level indicator.
6. Footswitch: Activates/deactivates the effect.
7. 1/4" TS IN connector: Used to plug in the instrument cable.
8. 1/4" TS OUT connector: Sends the signal to the amplifier.

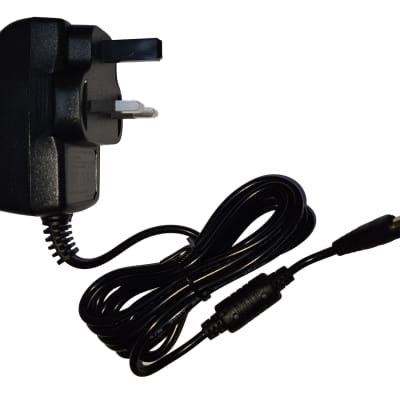

9. DC IN connection: Used to plug in a 9V power supply (not included).
10. BATTERY COMPARTMENT: Located underneath the pedal cover for installing or replacing the 9V battery (not included).

Technical Specifications:
- In Connector: 1/4" TS
- Impedance: 500 kΩ
- Out Connector: 1/4" TS
- Impedance: 1 kΩ
- Power Supply: 9V, 100 mA regulated
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg

The UV300 Ultra Vibrato pedal does not have an on/off switch. It is activated as soon as the plug is inserted into the IN connector. The SERIAL NUMBER is located at the underside of the pedal.

The UV300 is part of the MUSIC Group, and all trademarks are the property of their respective owners.
