XD300 Distortion-X

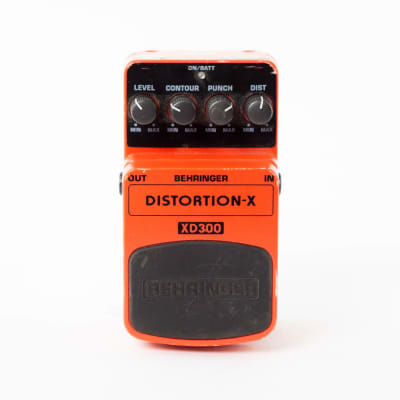

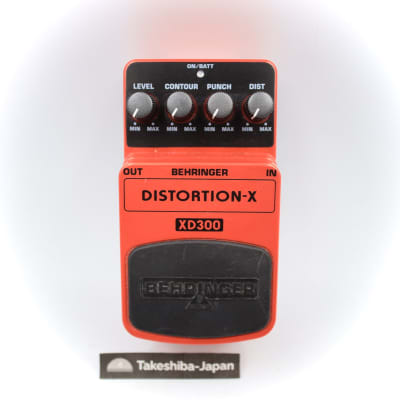

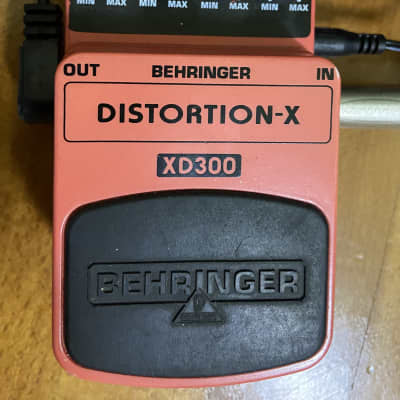

The Behringer XD300 Distortion-X is a high-quality effects pedal designed to produce super thick, tube-like distortion and endless sustain. It features the following controls:

1. LEVEL: Adjusts the output level.
2. CONTOUR: Modifies the tone of the signal from traditional to super-modern sounds.
3. PUNCH: Adds aggressive mid-frequency punch to the signal for more distinctive distortion sounds.
4. DIST(ortion): Adjusts the amount of distortion effect.

Additional features include an ON/BATT LED that illuminates when the effect is activated and serves as a battery level indicator, a footswitch to activate/deactivate the effect, ¼" TS IN and OUT connectors, and a DC IN connection for a 9V power supply (not included). The pedal is powered by a 9V battery or a 9V power supply.

Technical specifications:
- Input Impedance: 500 kΩ
- Output Impedance: 1 kΩ
- Power Supply: 9V, 100 mA regulated
- Power Connector: 2 mm DC jack, negative center
- Battery: 9V type 6LR61
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg
