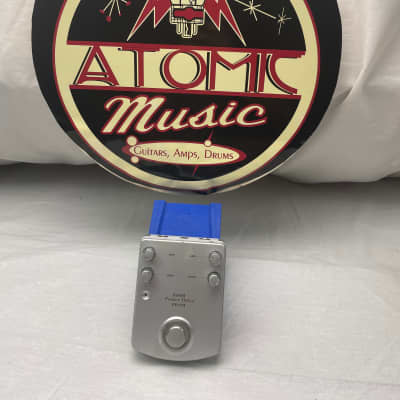

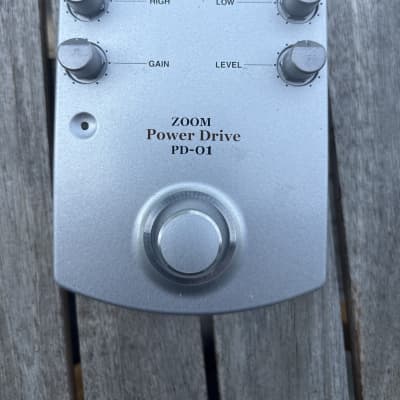

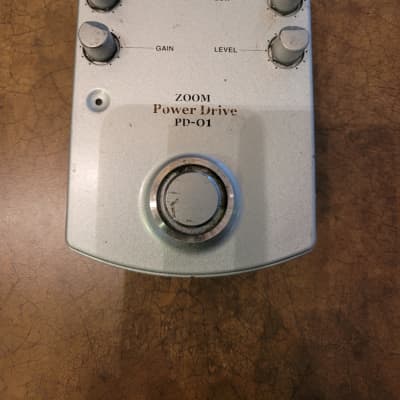

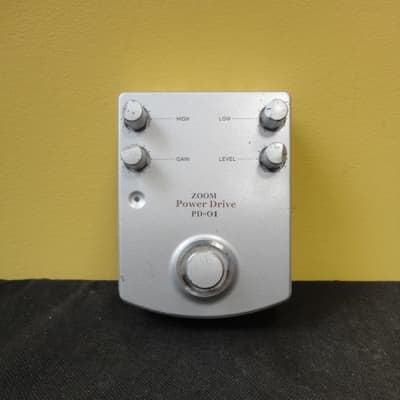

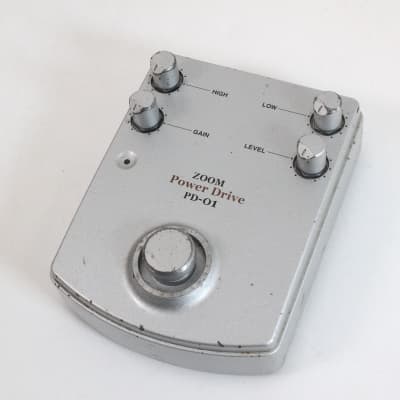

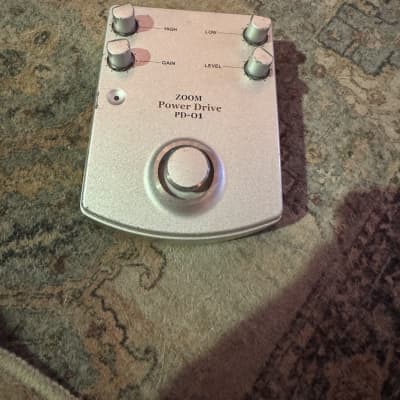

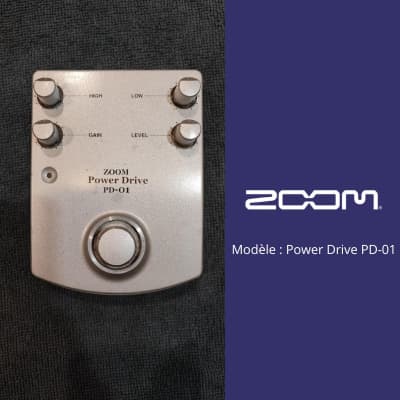

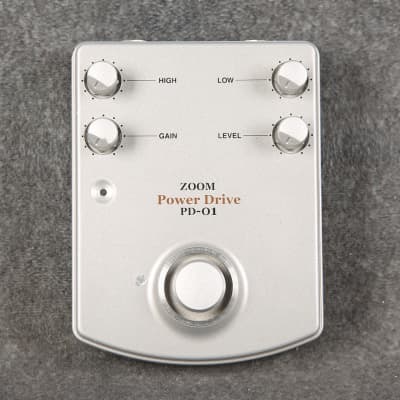

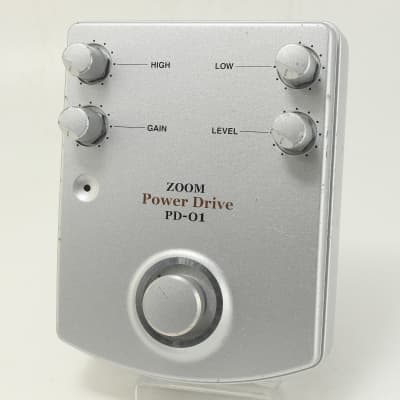

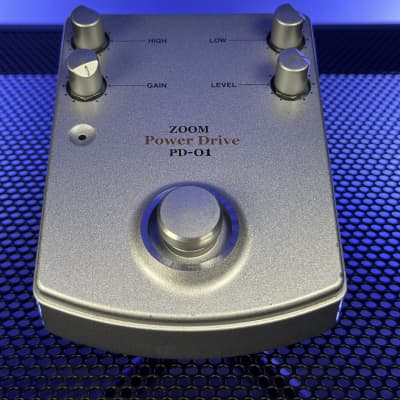

Power Drive PD-01

The Zoom Power Drive PD-01 is a dedicated overdrive unit with the following features:

- Unprecedented warm and full overdrive: Specially developed analog circuit provides natural-sounding distortion without any trace of stickiness or hollowness, resulting in distortion that fully brings out picking nuances with low inherent noise.
- Use as full-fledged booster: With the GAIN control set to zero, the PD-01 gives superb clean sound. The output stage can deliver up to 20 Vp-p, which drives the amplifier to overdrive with fat, full-bodied sound.
- Mechanical switch for on/off and true bypass: On/off switching is performed using a mechanical foot switch. In the bypass position, the guitar signal is passed through without any alteration.
- Sturdy metal chassis: The rock-solid case made of aluminum provides excellent stability.
- HIGH/LOW equalizer provides versatility: The PD-01 features separate HIGH and LOW controls, offering flexibility in creating various sounds, from mild drive tone to sharp, bright distortions.

Specifications:
- Foot switch
- GAIN control
- LEVEL control
- HIGH control
- LOW control
- Standard monaural phone jack
- Rated input impedance: 470 kilohms
- Rated input level: -20 dBm
- Rated output impedance: 10 kilohms or more
- Rated output level: +19 dBm
- Power requirements: Battery (6F22, 9V) or AC adapter AD-0006 (9 V DC, 300 mA, center minus)
- Continuous operation: approx. 15 hours (alkaline) or 5 hours (manganese)
- External Dimensions: 98 (W) x 127 (D) x 48 (H) mm
- Weight: 710 g (including battery)

Usage Precautions:
- Electrical interference: Minimize emission of electromagnetic radiation from inside the device and susceptibility to external interference.
- Cleaning: Use a soft, dry cloth to clean the PD-01. Do not use abrasive cleanser, wax, or solvents.

Safety Precautions:
- Using an AC adapter to power this unit is recommended.
- Avoid using the PD-01 in environments where it will be exposed to temperature extremes, high humidity or moisture, excessive dust or sand, excessive vibration or shock.
