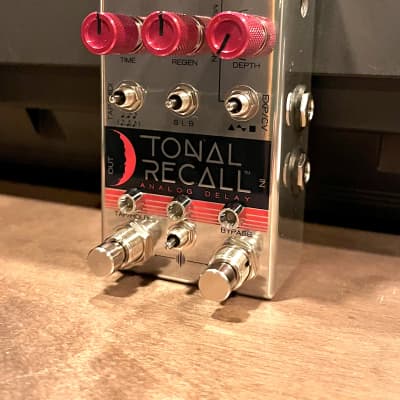

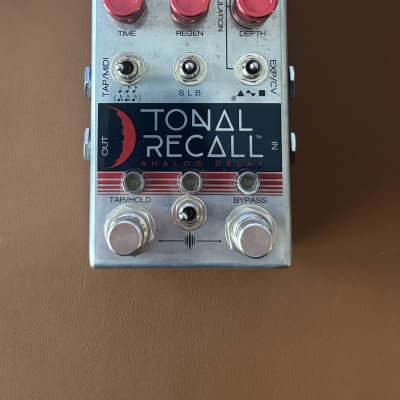

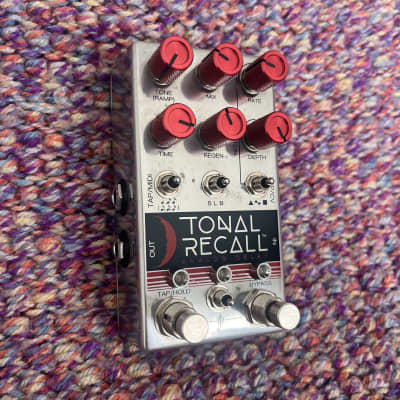

Tonal Recall Red Knob

The Tonal Recall Red Knob by Chase Bliss Audio is an analog delay pedal built around four re-issued versions of the legendary MN3005 bucket-brigade delay chips. It offers a maximum delay time of 1100ms and retains the unmistakable analog character of this delay. The pedal expands upon classic vintage sounds associated with analog delays while incorporating modern amenities such as tap tempo, optional bypass with trails, expression control over any parameter, and the ability to save presets. Every knob and switch is connected to a digital brain while the guitar signal remains 100% analog and never gets digitally processed.

Key Features and Technical Specifications:
- Built around four re-issued versions of the MN3005 bucket-brigade delay chips
- Maximum delay time increased to 1100ms
- Analog delay with modern amenities such as tap tempo and expression control
- Ability to save presets
- 100% analog guitar signal
- Mix, Rate, Time, Regen, Depth controls
- Wave, Short/Long/Both, Tap/MIDI switches

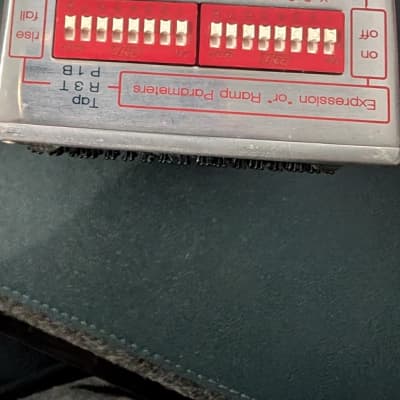

- External dip switches for additional tonal options
- MIDI, CV, and expression pedal integration
- True bypass or buffered bypass with trails
- Power consumption: ~150mA
- Standard 2.1mm 9V DC center-negative adapter required

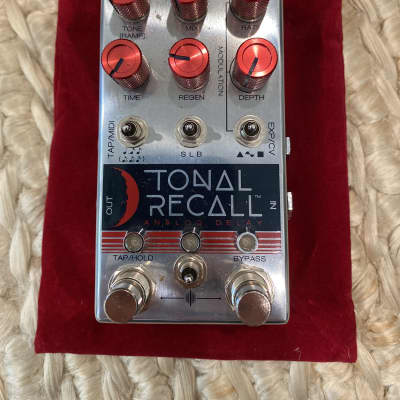

The pedal also features various controls including delay time, regen (repeats), depth (pitch modulation intensity), wave shape toggle, bypass stomp, tap/hold stomp, lower toggle for presets, and various input/output jacks for expression pedal, tap/MIDI, and more.
