Nocturnal

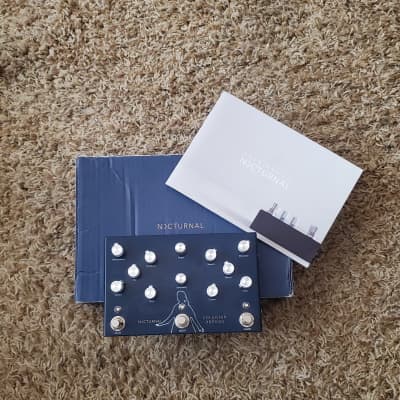

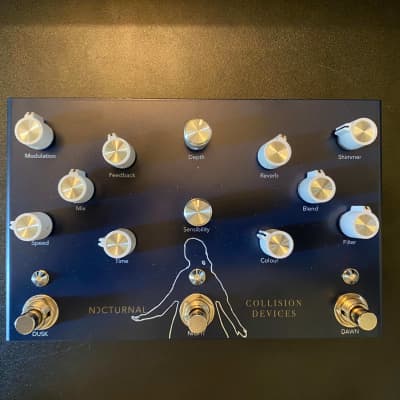

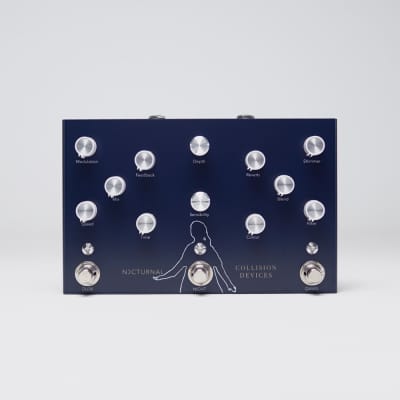

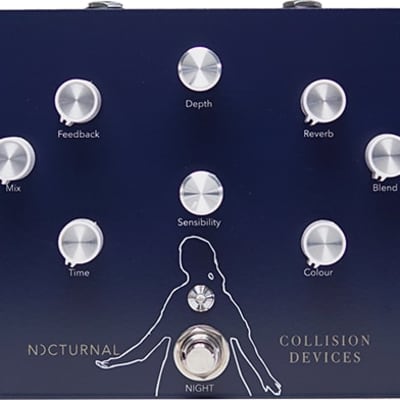

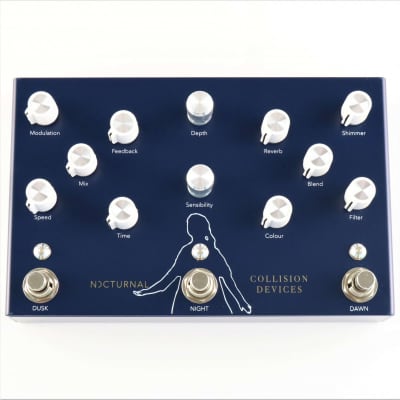

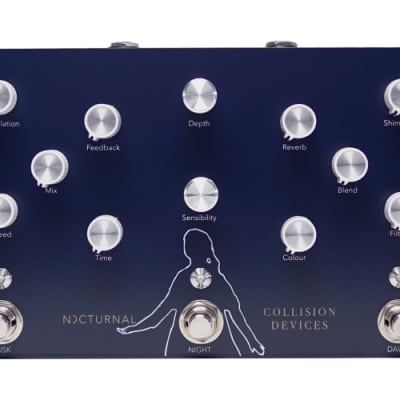

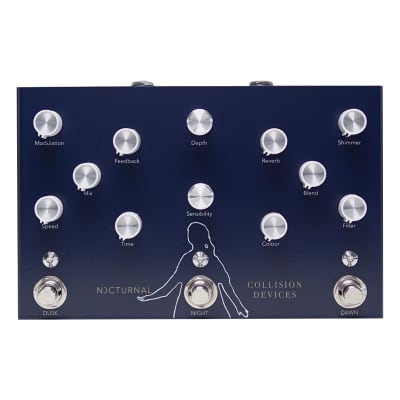

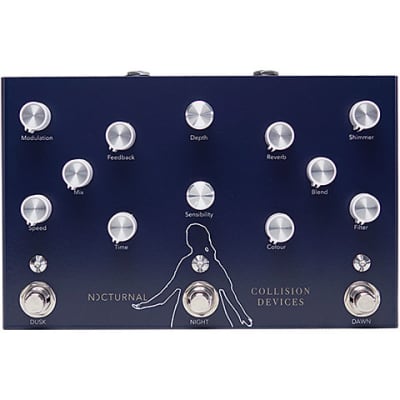

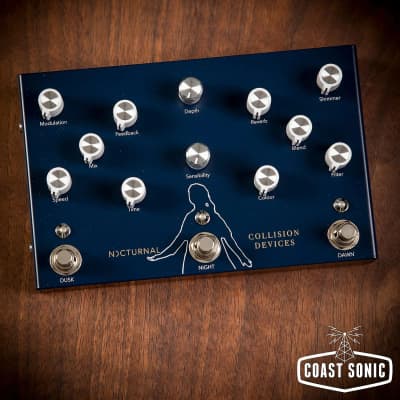

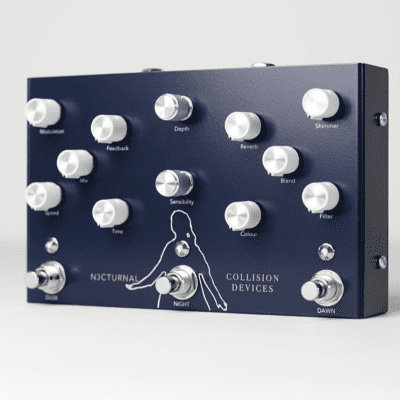

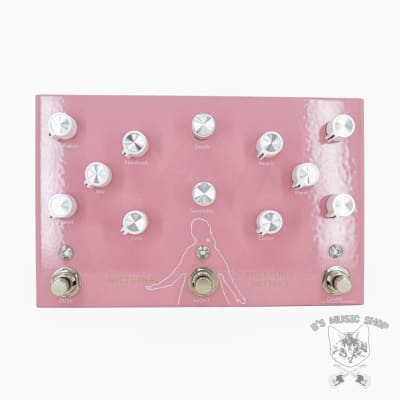

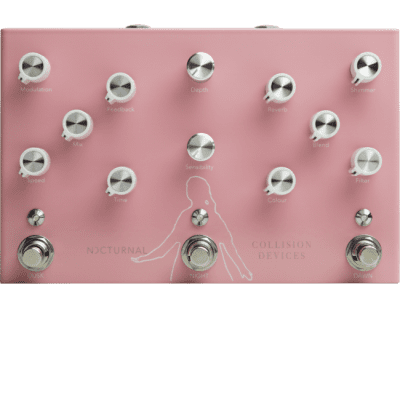

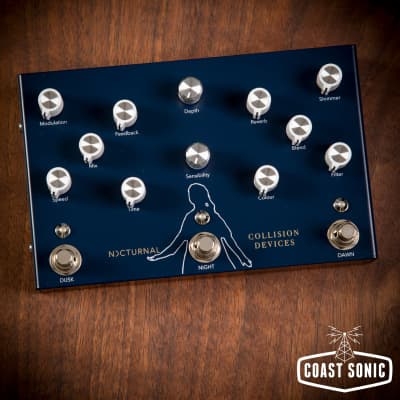

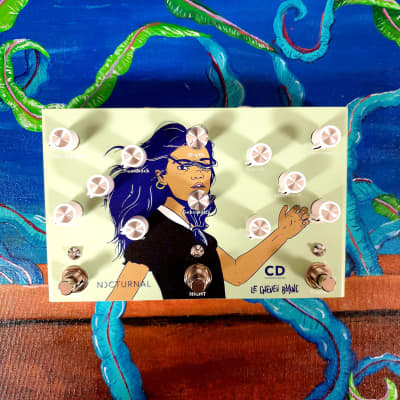

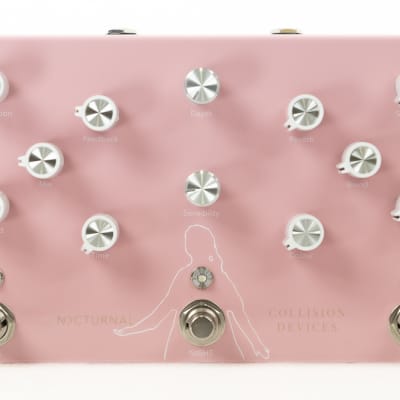

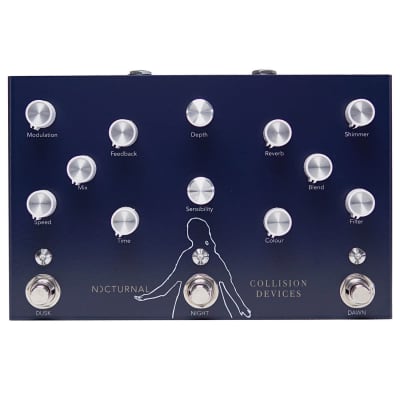

The Nocturnal by Collision Devices is a versatile effects pedal designed for creating ambient soundscapes. It features three distinct effect sections: Dusk (modulated delay), Night (dynamic tremolo), and Dawn (shimmer reverb). Each effect can be used individually or together, offering a wide range of sonic possibilities.

Key Specifications:
- Maximum current draw: 400 mA
- Input Impedance: 1 MOhm
- Size: 186 x 119 x 56mm
- Voltage: +9V DC (negative center)
- Output Impedance: 10 KOhm
- Weight: 250g
- Buffered bypass

Dusk (Modulated Delay) Features:
- Mix: Controls the mix between Full Dry or 50% Dry / 50% Wet
- Time: Time between each repetition, from a few ms to 1 second
- Feedback: Number of repetitions, capable of self-oscillation
- Modulation: Amount of modulation in the delay repetitions
- Speed: Modulation’s frequency from 0.1 to 20 Hz
- Momentary effect: Feedback self-oscillation when footswitch is long pushed

Night (Dynamic Tremolo) Features:
- Sensibility: Sensitivity to attack
- Depth: Controls the tremolo’s volume
- Momentary effect: Tremolo overspeed when footswitch is long pushed

Dawn (Shimmer Reverb) Features:
- Blend: Controls the amount of Dry/Wet signal
- Reverb: Reverberation time, max 15 sec
- Shimmer: Adds shimmer to the reverb
- Filter: Digital filter, low pass
- Colour: Notch active and analog filter around 2.2 kHz
- Trails: Activates trails when footswitch is long pushed

The Nocturnal pedal is designed and assembled in France, with a lifetime warranty. It is recommended to use an isolated power supply for powering all Collision Devices pedals.
