Memphis

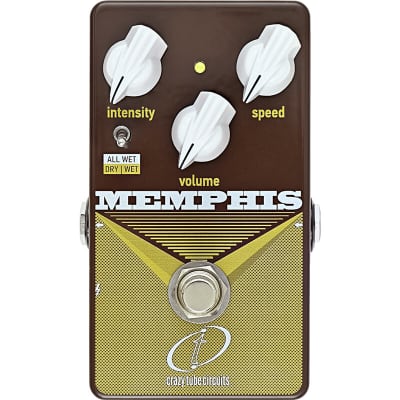

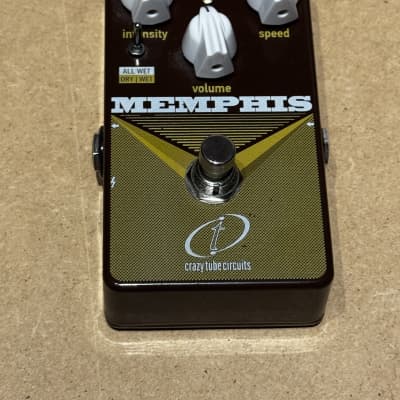

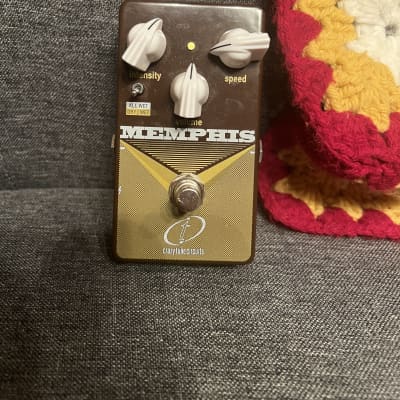

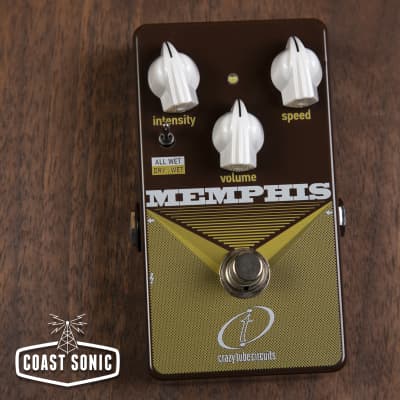

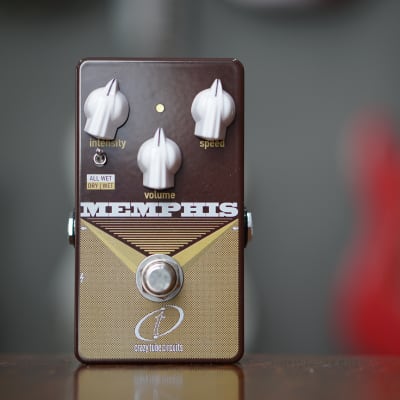

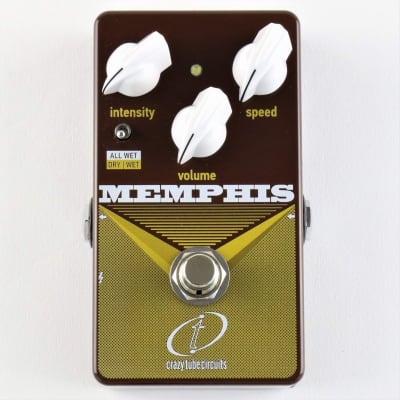

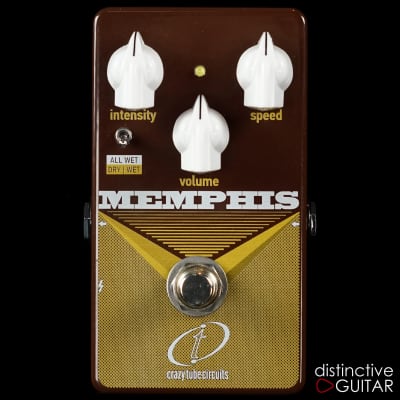

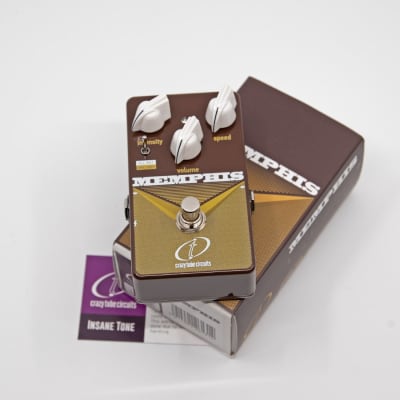

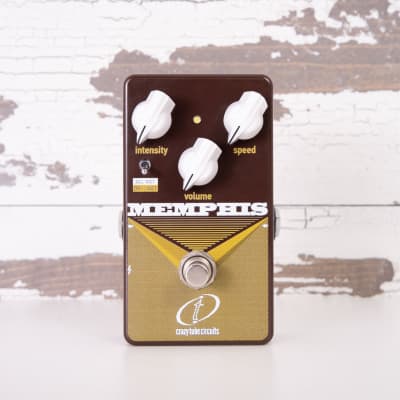

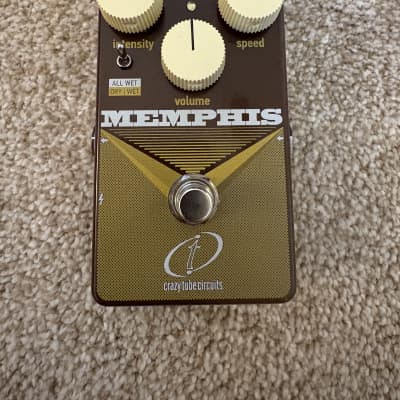

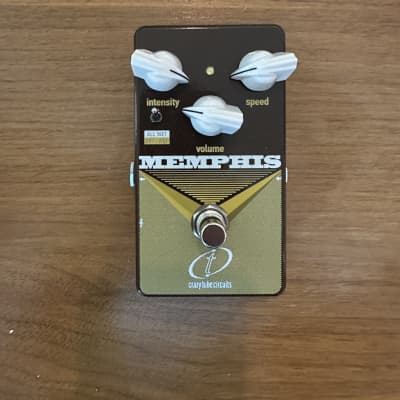

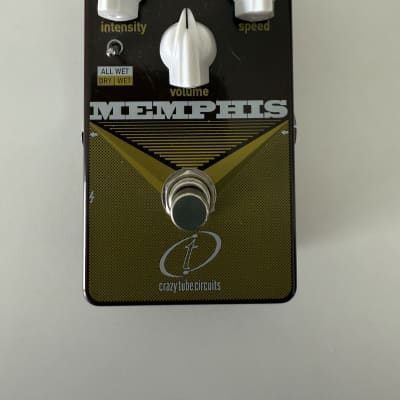

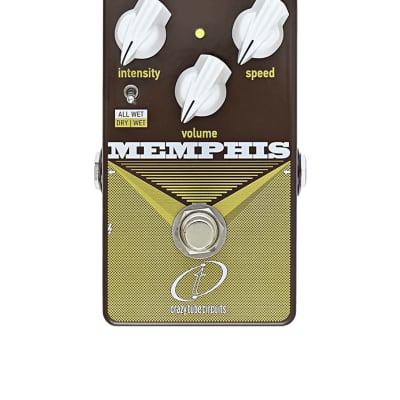

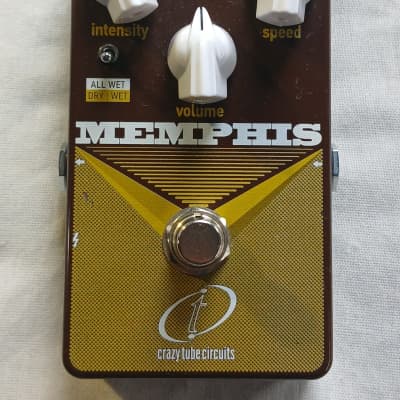

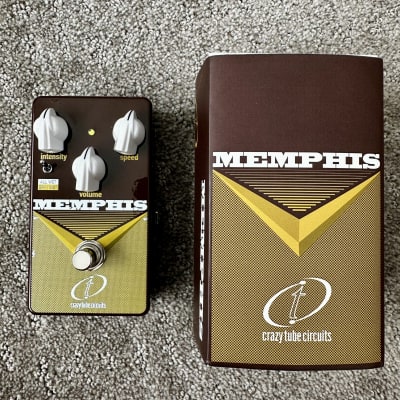

The Memphis by Crazy Tube Circuits is a vibrato pedal that recreates the magic of Magnatone amp vibrato in a compact stompbox. It features an all-analog LFO and a true-to-the-original-amp 2-stage pitch-shifting circuit powered from an internal voltage multiplier for high headroom and improved dynamic response. The pedal includes a vintage-style clean preamp with up to 20dB boost, providing a period-correct sound reminiscent of the late 1950s/early 1960s. The pedal has three knobs (Intensity, Speed, and Volume) and an All Wet/Dry Wet toggle switch, allowing users to achieve a range of vibrato effects from subtle shimmer to pronounced 3D effects. The switch selects between a 100% modulated signal and a signal mixing in some of the dry tone in parallel for whirling Vibe-style sounds. The pedal operates on 9V DC power and has a current draw of 40mA. It also features true bypass functionality.

Dimensions (W x D x H): 72 x 118 x 48 mm
Weight: 220 g
Power supply: 9V DC
Current Draw: 40mA
True Bypass
