Epsilon

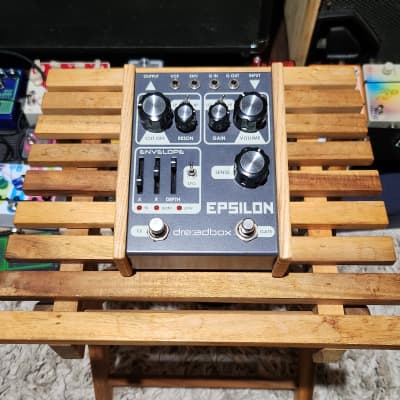

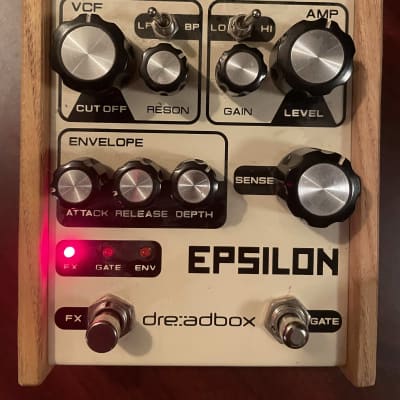

The Epsilon by Dreadbox is a limited edition filter and envelope effect pedal with the following features and specifications:

- 2-Pole State Variable Filter
- Low Pass & Band Pass
- AR Envelope Generator
- Envelope can be used as an LFO
- Signal to Gate Converter
- Manual Gate Trigger
- 2 Gain options (Low – High)
- 4 patch points: VCF In, Envelope Out, Gate In, Gate Out
- True Bypass
- Compatible with Guitar, Bass, Synthesizer, Keyboard, Drum Machine

The pedal has dimensions of approximately 15 x 11.5 x 6 cm and weighs 0.57 kg. It operates with a 9V DC power supply (center pin negative, 2.1 mm Boss style). The VCF Input expects 0-5V (optimal) and can accept up to ±5V. The ENV Output provides 7.2V at maximum depth, and the Gate In expects a 0-5V pulse, while the Gate Out delivers 0-7.2V.
