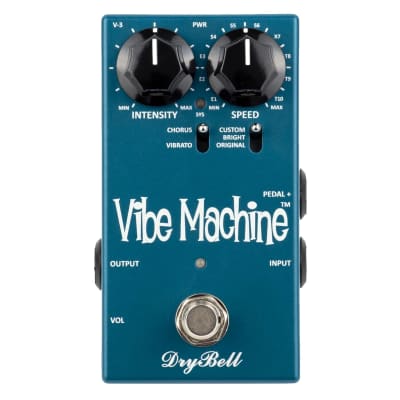

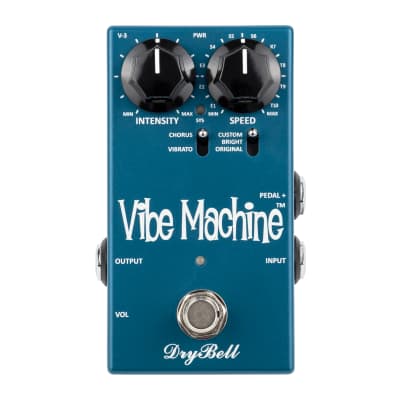

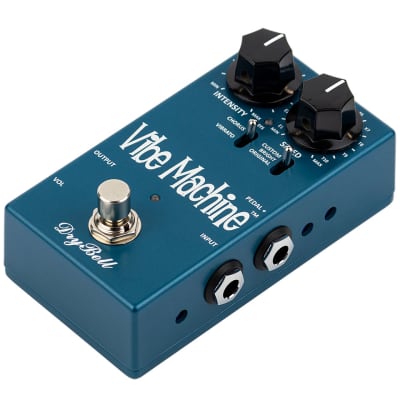

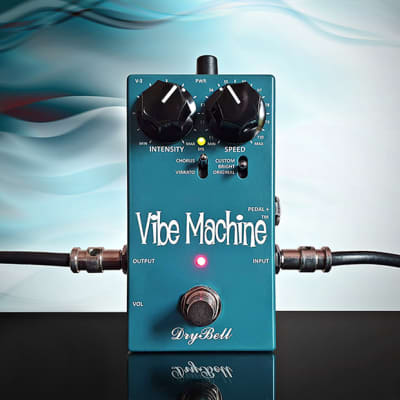

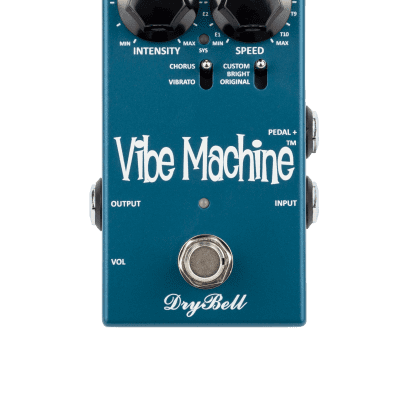

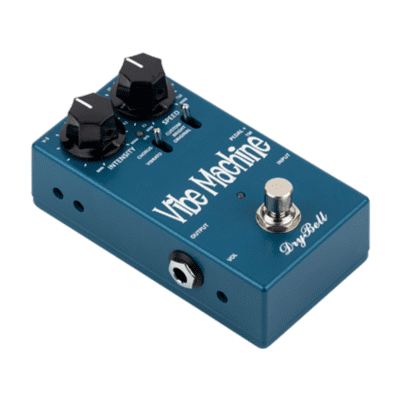

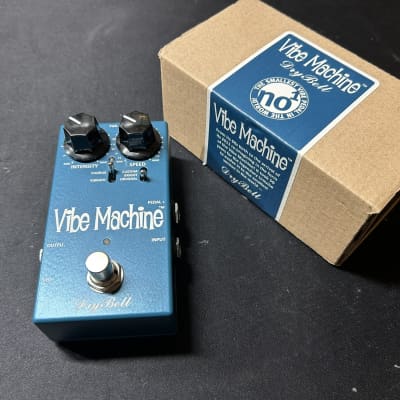

Vibe Machine V-3 Guitar Pedal By DryBell

Vibe Machine V-3

Pedal Manufacturer

DryBell

Description

The Vibe Machine V-3 by DryBell is a top-quality Uni-Vibe® type pedal developed to the highest possible standards. It features the same versatile custom sound options as V-2, with 6 'set and forget' side trimmers: CHORUS, GRIT, CUSTOM, SYM, RANGE, and VOLUME. The pedal has an analog signal path designed with discrete transistors, made with small electronic SMD technology, and reduced in size for compatibility with smaller pedalboards.

Key Technical Specifications:
- Model: V-3
- Input impedance ORIGINAL: 69kΩ/1kHz
- Input impedance BRIGHT: 1MΩ/1kHz
- Input impedance CUSTOM: adjustable 69kΩ - 320kΩ/1kHz (side CUSTOM trimmer)
- Output impedance: variable 1kΩ - 90kΩ/1kHz (depending on GRIT trimmer)
- External power supply: Adapter 9V DC (8.91V min > 16V max! )
- Power supply connector type: Barrel, Plug 5.5mm/2.1mm, Center Negative
- Max current (pulse): 165mA (min 170mA power supply recommended, not included)
- Length: 112 mm / 4.42 inches
- Width (W/O jacks): 60 mm / 2.37 inches
- Height (W/O knobs): 31 mm / 1.22 inches
- Weight (W/O package): 0.28 kg / 0.62 lb
- Weight (with package): 0.36 kg / 0.79 lb
- Standard color/finish: Pearl genan blue / Powder coating

The pedal also includes various controls such as INTENSITY, SPEED, VIBRATO/CHORUS toggle switch, ORIGINAL/BRIGHT/CUSTOM 3-way input impedance switch, VOLUME and CUSTOM side trimmers, and more. It can be powered via a 9V DC adapter and features true bypass, a multi-color system LED, and additional functions controllable via the DryBell F-1L footswitch.

Watch something on YouTube

Watch Vibe Machine V-3 Videos, Demos, and Reviews

Watch the latest video demos and reviews for the Vibe Machine V-3 from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

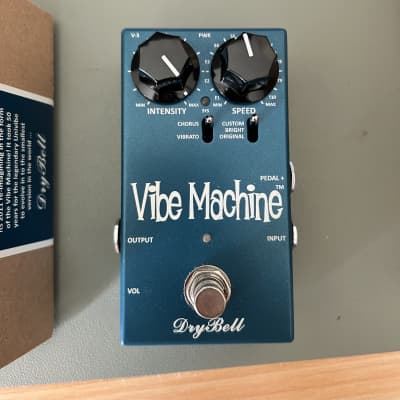

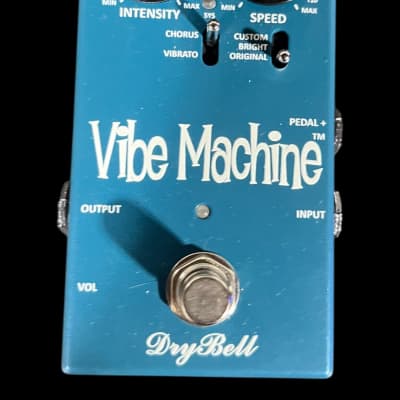

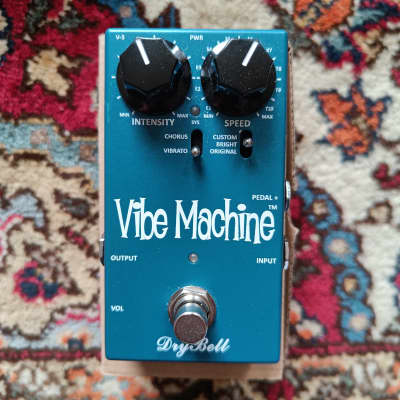

Find DryBell Vibe Machine V-3 Listings on Reverb

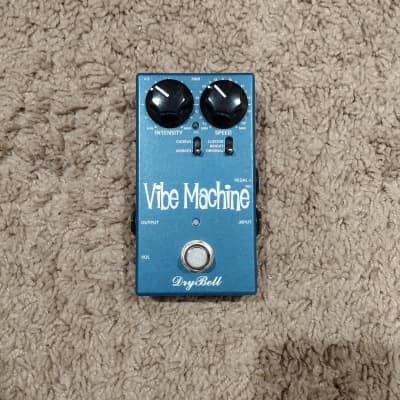

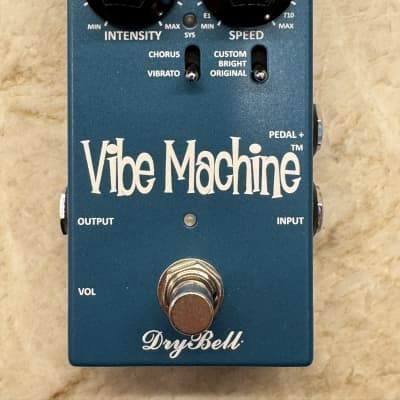

Below are live Reverb listings for the DryBell Vibe Machine V-3 from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.

No eBay listings found for drybell-vibe-machine-v-3

Similar pedals

eBay Logo for Listings

Pedals Similar to Vibe Machine V-3 on Stompbx

Discover pedals with similar features or sounds to the Vibe Machine V-3. This section leverages data to suggest alternatives that complement or expand your pedalboard. Ideal for exploring related sounds or finding a pedal that matches your specific needs.

Sea Machine Guitar Pedal By EarthQuaker Devices

Chorus and Vibrato

EarthQuaker Devices

Sea Machine

Sirens v.2 Guitar Pedal By Pine Box Customs

Chorus and Vibrato

Pine Box Customs

Sirens v.2

The Depths Guitar Pedal By EarthQuaker Devices

Chorus and Vibrato

EarthQuaker Devices

The Depths

Vibrophase Guitar Pedal By ZVEX

Chorus and Vibrato

ZVEX

Vibrophase

QF2 Guitar Pedal By Iron Ether

Bass Effects

Iron Ether

QF2

UV300 Ultra Vibrato Guitar Pedal By Behringer

Chorus and Vibrato

Behringer

UV300 Ultra Vibrato

MT-CH Aqua Chorus Guitar Pedal By ModTone

Chorus and Vibrato

ModTone

MT-CH Aqua Chorus

Stereo Chorus Flanger Guitar Pedal By TC Electronic

Chorus and Vibrato

TC Electronic

Stereo Chorus Flanger

Jimi Zero Guitar Pedal By Moen

Chorus and Vibrato

Moen

Jimi Zero

Ventura Vibe Guitar Pedal By DigiTech

Chorus and Vibrato

DigiTech

Ventura Vibe

Vibe Machine V-1 Guitar Pedal By DryBell

Chorus and Vibrato

DryBell

Vibe Machine V-1

Stoned Hz Guitar Pedal By Crazy Tube Circuits

Chorus and Vibrato

Crazy Tube Circuits

Stoned Hz

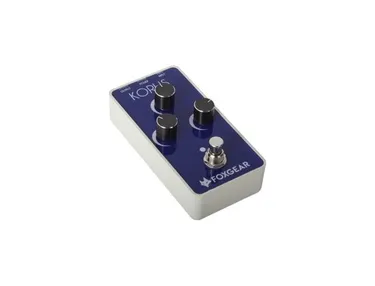

Korus Guitar Pedal By Foxgear
