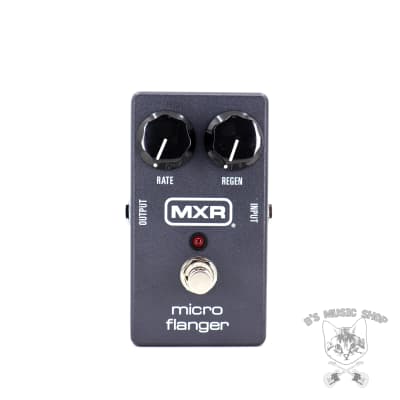

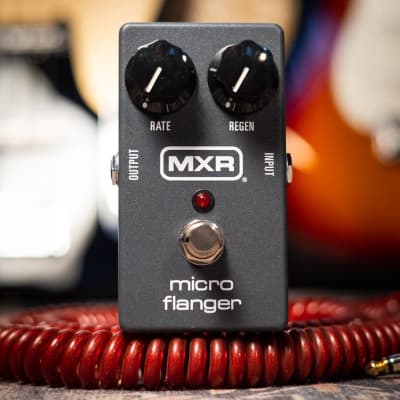

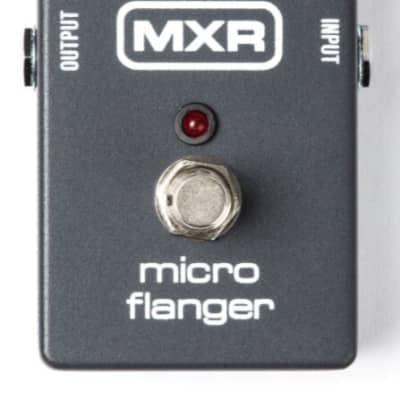

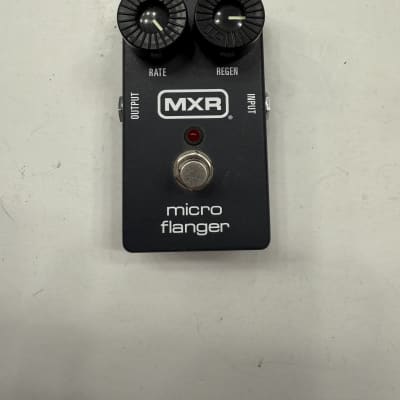

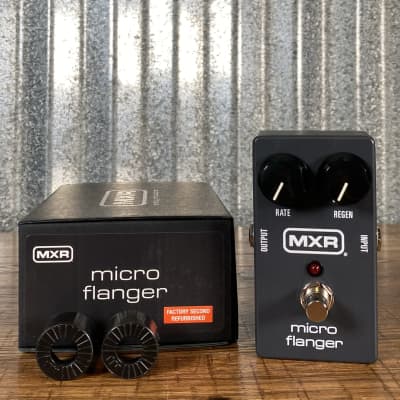

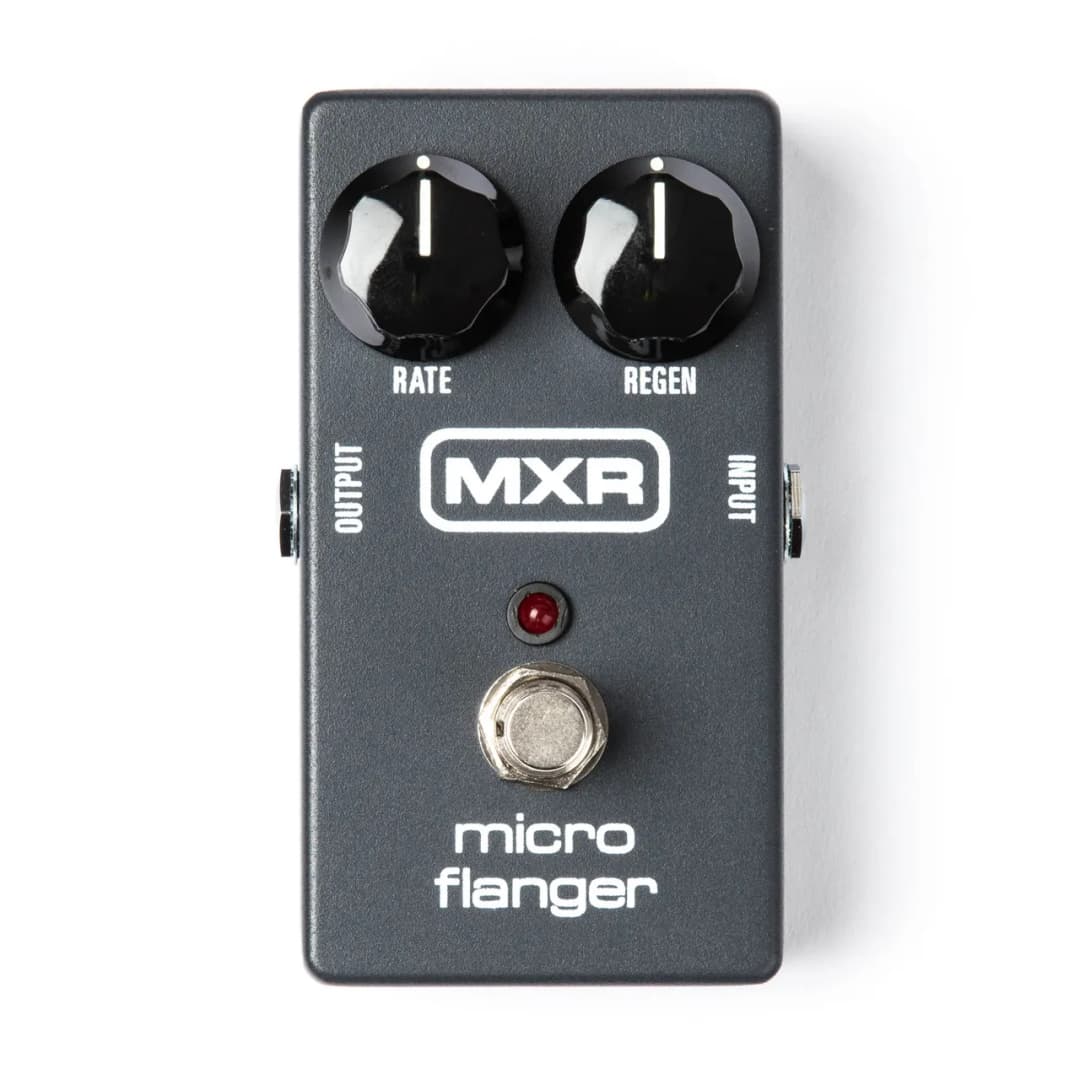

MXR Micro Flanger

The MXR Micro Flanger by Dunlop is a guitar effects pedal that offers warm and thick flanging for massive sonic "swooshes." It features two control knobs to adjust speed and regeneration for simple operation. The pedal utilizes all- analog circuitry with bucket brigade technology for warm analog tone and offers true bypass functionality. The specifications for the MXR Micro Flanger are as follows:

- Input Impedance: 1 MΩ
- Output Impedance: 1 kΩ
- Max Input Level: -2 dBV, 500 Hz
- Max Output Level: +8 dBV
- Noise Floor: -88 dBV (A-weighted)
- Rate Control: 0.2 Hz to 5.5 Hz
- Delay Range: 3.9 µs to 4 ms
- Bypass: True Hardwire
- Current Draw: 7 mA
- Power Supply: 9 volts DC

The pedal can be powered by one 9-volt battery or a 9-volt AC adapter. The MXR Micro Flanger provides the same tones and textures as its larger counterpart, the MXR M117 Flanger, but in a smaller and more convenient size. It features a Speed knob to control the rate of cycling and a Regeneration knob to manage the overall intensity, allowing users to achieve a range of flanging effects from jet plane-like sweeps to cool outer space type effects.
