Arpanoid

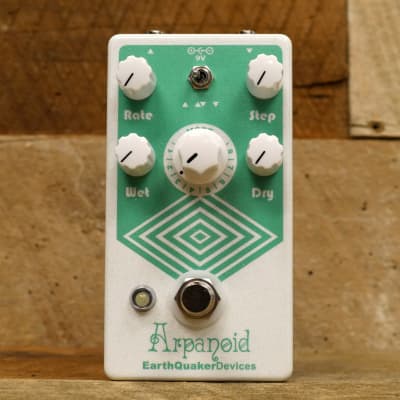

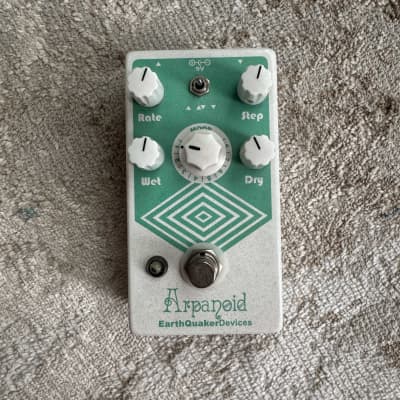

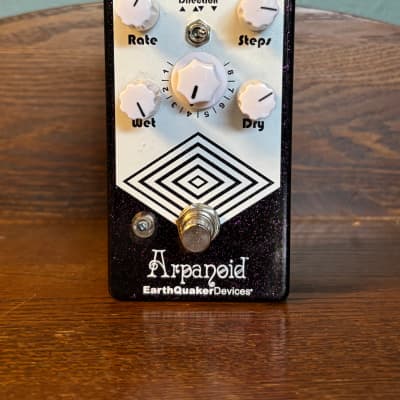

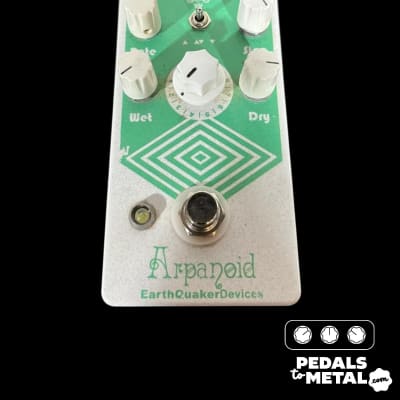

The Arpanoid by EarthQuaker Devices is a polyphonic pitch arpeggiator effect pedal designed for electric guitar. It features 8 intuitive and expandable modes that work on complex chords as well as single notes in any key. The device has an all-analog dry signal, all-digital wet signal, and true bypass switching. The technical specifications are as follows:

- Dimensions: 4.75 x 2.50 x 2.25 inches (121 x 64 x 57 mm) with knobs
- Current Draw: 65 mA
- Input Impedance: 1 MΩ
- Output Impedance: <1 kΩ
- Flexi-Switch® Technology: This relay-based, true bypass switching style allows for both momentary and latching style switching
- Power: The device requires a standard 9-volt DC power supply with a 2.1mm negative center barrel. It is recommended to use pedal-specific, transformer- isolated wall-wart power supplies or multiple isolated-output supplies to minimize noise.

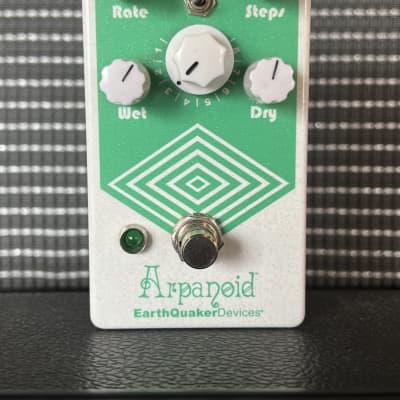

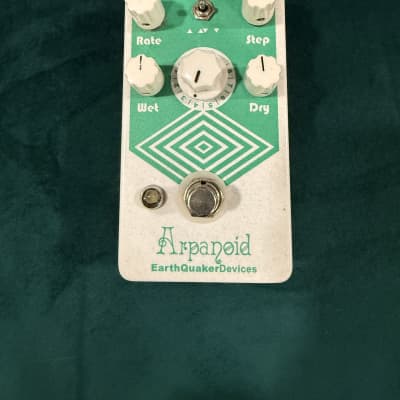

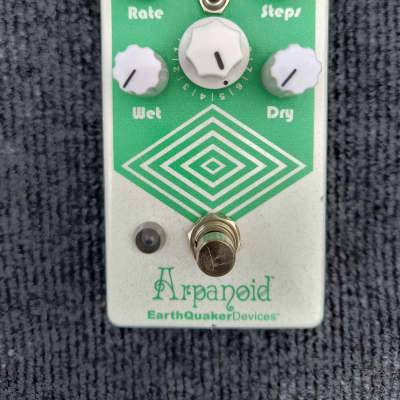

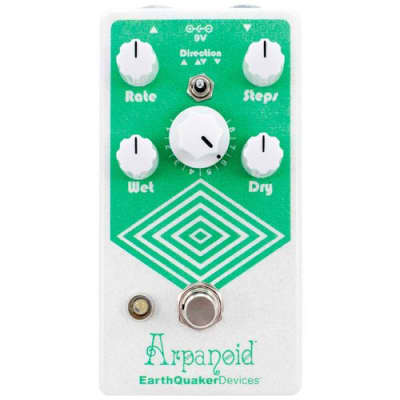

The controls on the Arpanoid include Rate, Up/Up-Down/Down Toggle, Step, Wet, Mode, and Dry, providing users with a range of options to customize the pitch arpeggiator effect to their preferences.
