Bit Commander

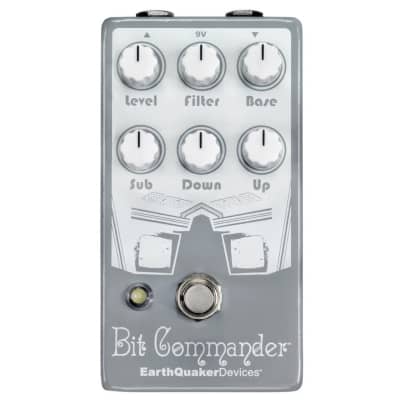

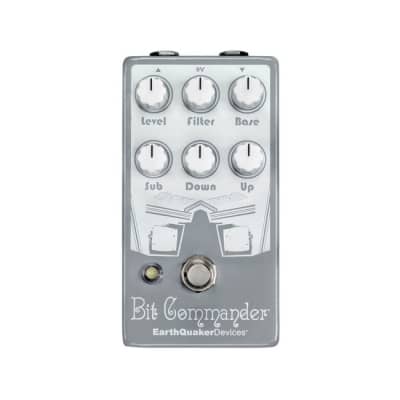

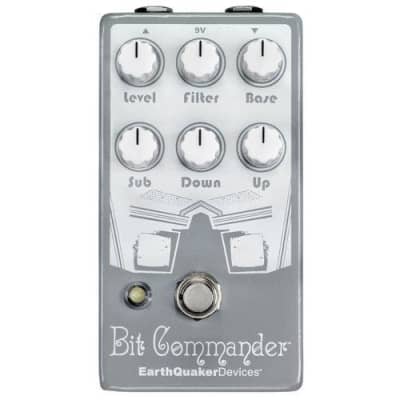

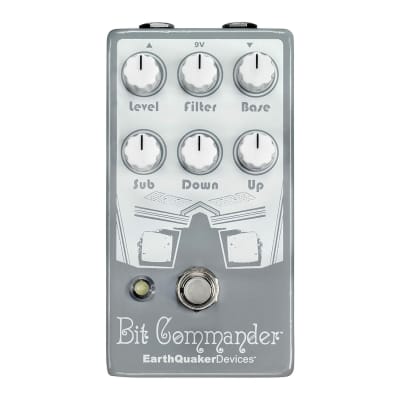

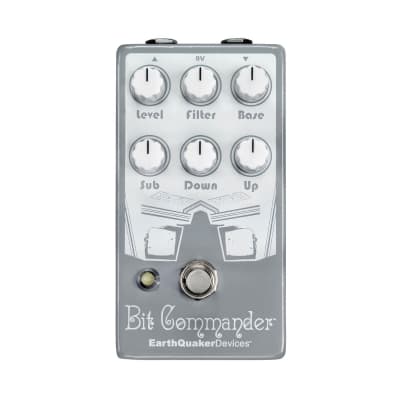

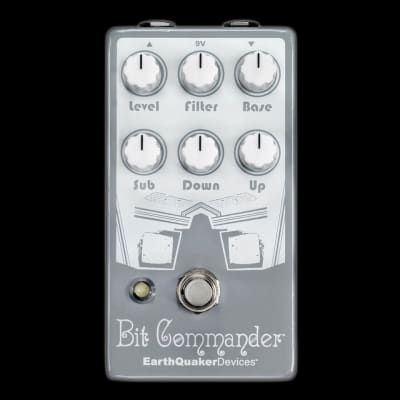

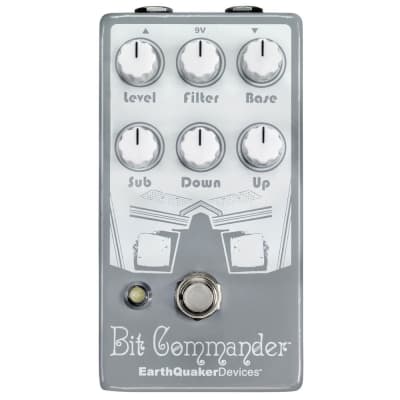

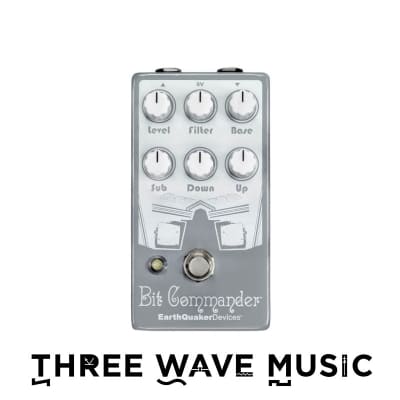

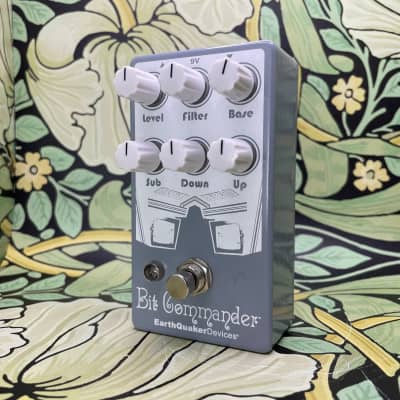

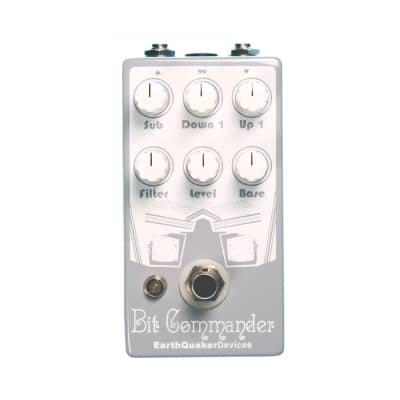

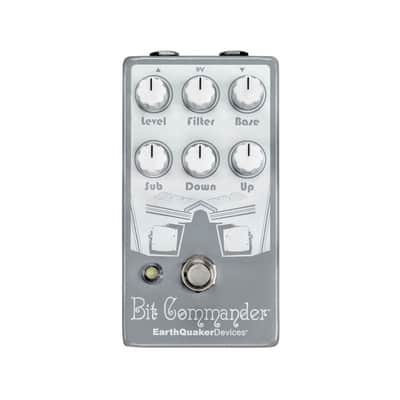

The Bit Commander by EarthQuaker Devices is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. Its interface allows for easy addition or subtraction of octaves to create a wide variety of sounds without the need to dial in envelopes or oscillators. The pedal features the following controls:

1. Level: Master volume
2. Filter: Tone control for more highs clockwise and more warmth counterclockwise
3. Base: Squared input signal level
4. Sub: Two octaves down level
5. Down 1: One octave down level
6. Up 1: One octave up level

Technical specifications include:
- Dimensions: 4.75" x 2.50" x 2.25" with knobs
- Current Draw: 25mA
- Input Impedance: 50K Ohm
- Output Impedance: <500 Ohm
- Flexi-Switching technology for momentary and latching style switching
- Power: Standard 9 volt DC power supply with a 2.1mm negative center barrel

The Bit Commander V2 has a fully analog dry signal path and electronic relay- based true-bypass switching. It is designed to be powered by a standard 9-volt DC power supply with a 2.1mm negative center barrel.
