Echosystem

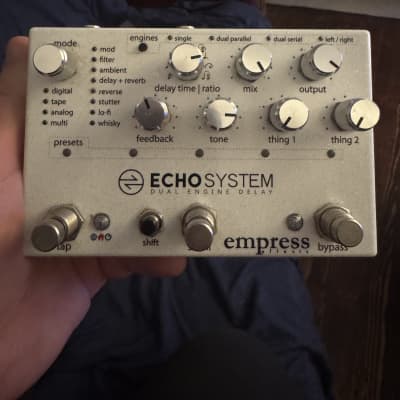

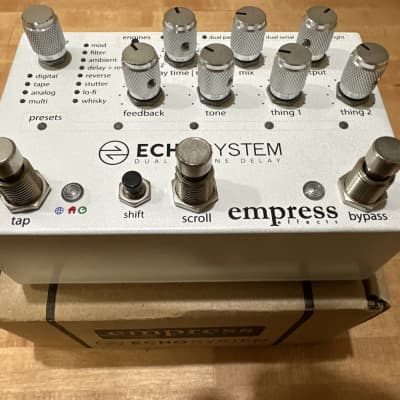

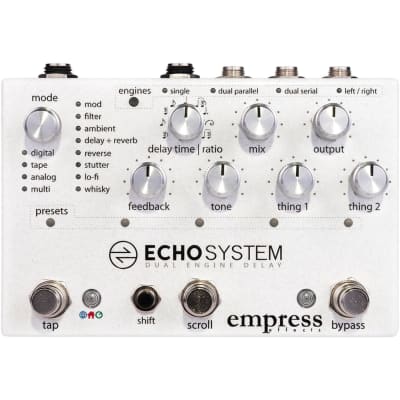

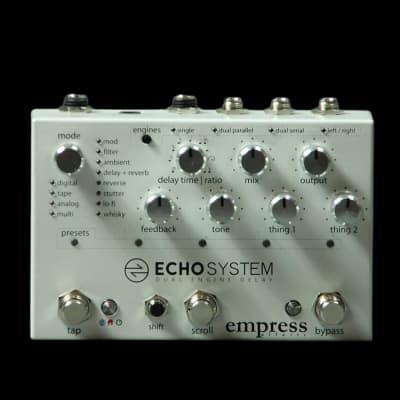

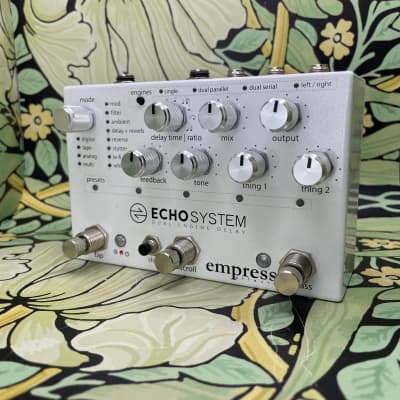

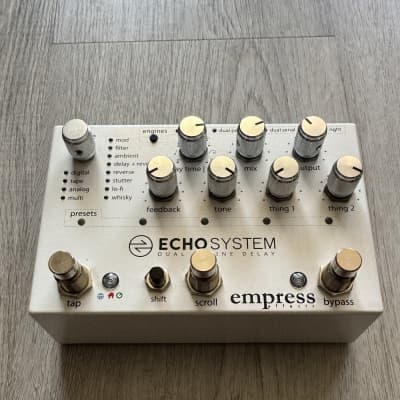

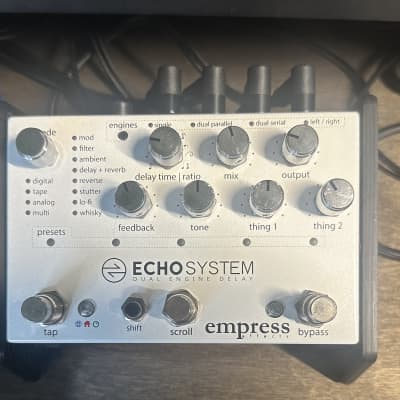

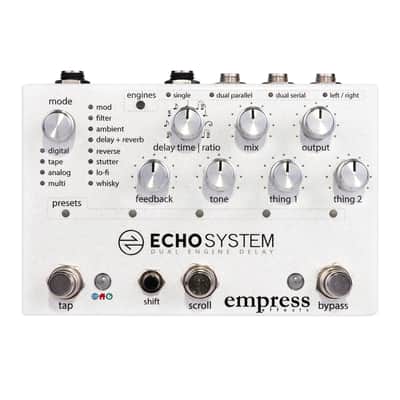

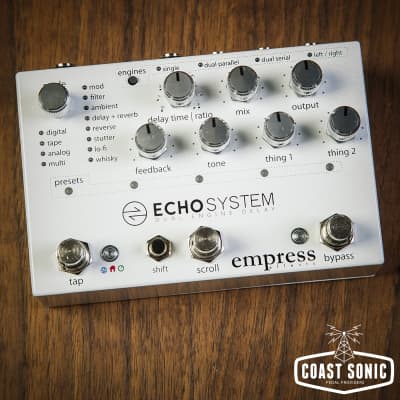

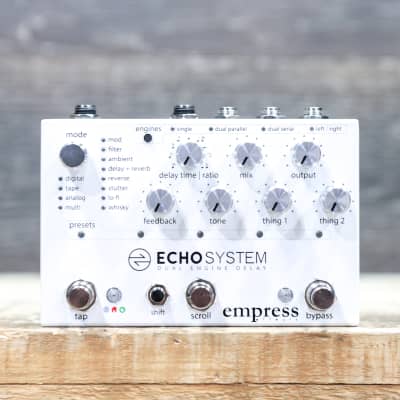

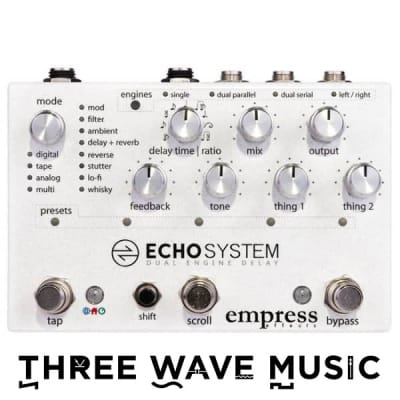

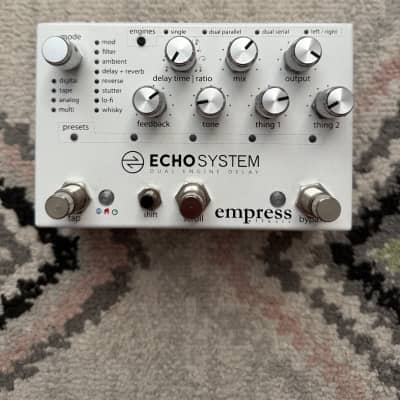

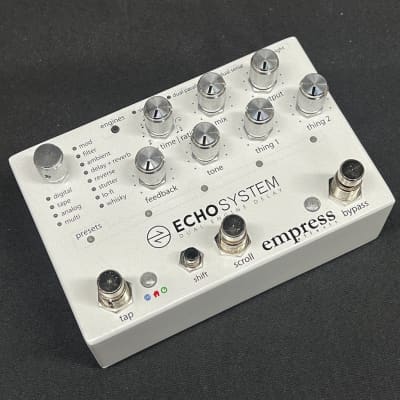

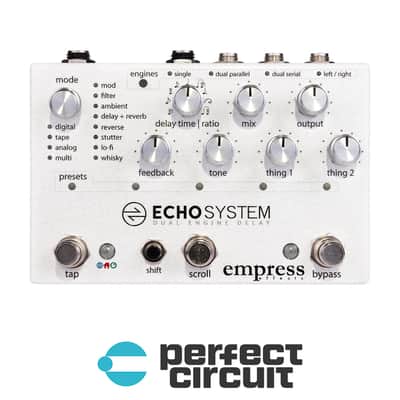

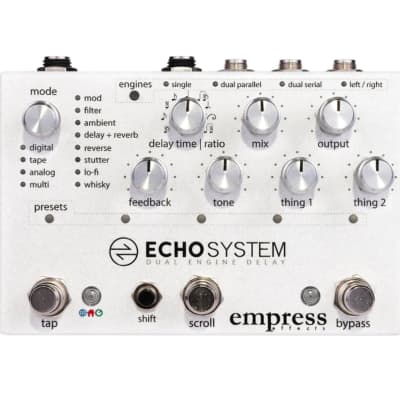

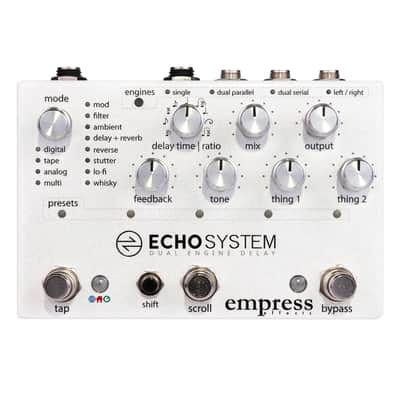

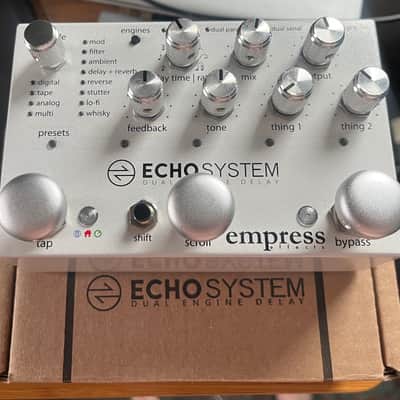

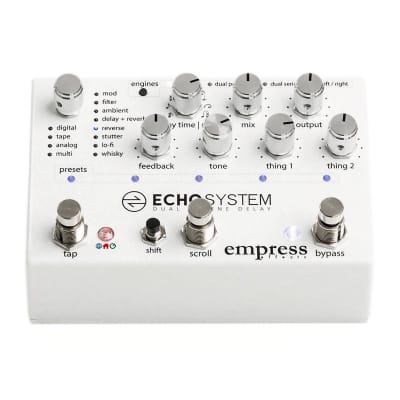

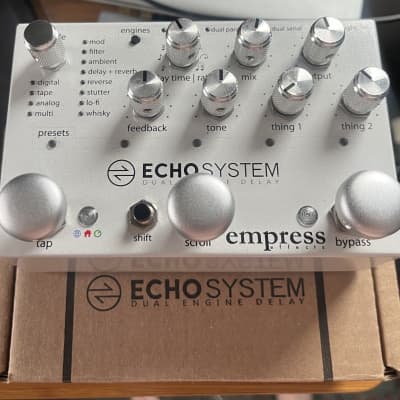

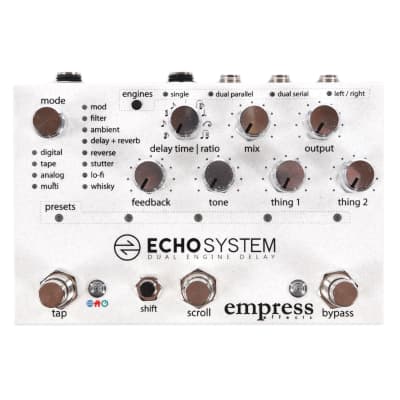

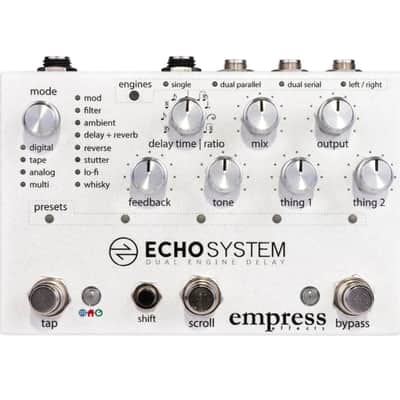

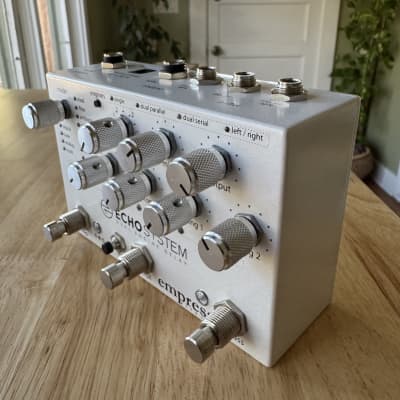

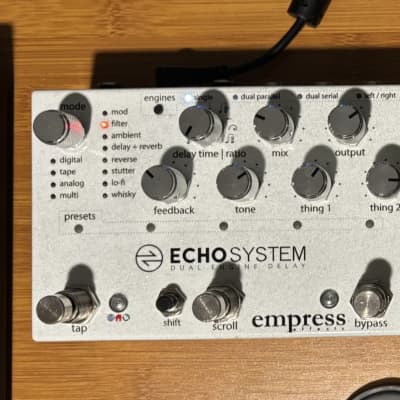

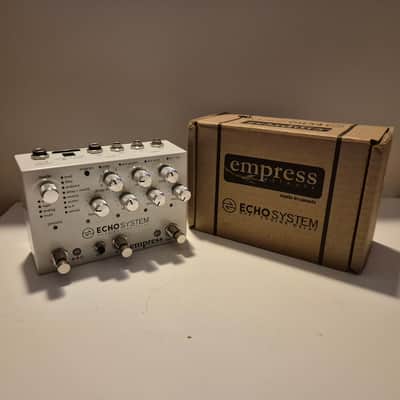

The Echosystem by Empress is a versatile delay effects pedal with a wide range of features and functionalities. Here are the technical specifications and key features:

Technical Specifications:
- Input Impedance: 1MΩ
- Output Impedance: 100Ω
- Output Impedance (transformer): 600Ω
- Frequency Response (-3dB, dry): 10Hz – 50kHz
- Frequency Response (-3dB, wet): 10Hz – 23.4kHz
- Total Harmonic Distortion (dry): 0.09%
- Total Harmonic Distortion (wet): 0.22%
- Dynamic Range (dry): 106.9 dBA
- Dynamic Range (wet): 105.5 dBA
- Input Headroom (dry): +10.0 dBu
- Input Headroom (wet, no pad): +0.5 dBu
- Input Headroom (wet, 6dB pad): +5.7 dBu
- Input Headroom (wet, 12dB pad): +10.8 dBu
- Output Headroom: +16.2dBu
- Power Input Connector: 2.1mm Barrel Connector
- Power Input Voltage: 9V
- Required Current: 300mA
- Height (enclosure only): 1.75”
- Height (including controls): 2.25”
- Length: 5.7”
- Width: 3.75”
- Weight: 1.5lbs

Key Features:
1. 42+ studio quality algorithms, including digital, tape, analog delays, multi-tap, ambient, reverse, reverb, and more.
2. Dual Engine functionality allows any 2 delays to be used together, routed in parallel, series, or left/right configurations.
3. Up to 35 presets can be saved, accessible via three stomp switches in either bank style or scrolling style preset modes.
4. True Bypass and Buffered Bypass options available.
5. Cabinet Simulator with 3 variations for recording, practicing, or gigs without an amp.
6. Output Transformer for hum-free operation in stereo with two amps.
7. High-Quality Audio with 48kHz sampling, 24-bit conversion, and 32-bit internal processing.
8. Analog Dry Path for maintaining an untouched dry signal, blended with the wet signal using VCA.
9. Unsurpassed Connectivity with the Universal Control Port for expression pedal, external tap switch, control voltage, external audio input, and MIDI.
10. Advanced Configuration Menu for configuring true or buffered bypass, presets, MIDI, control port, input signal pad, output transformer, and more.

These specifications and features make the Echosystem a powerful and versatile delay effects pedal suitable for a wide range of musical applications.
