H9 Core

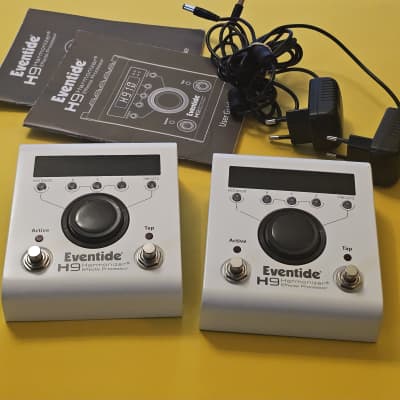

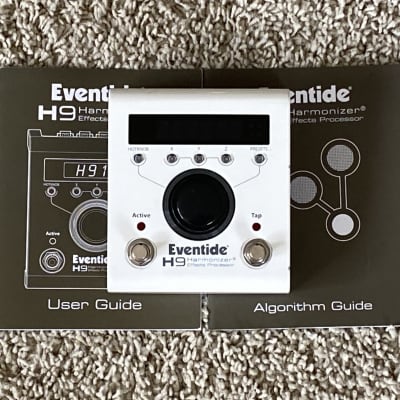

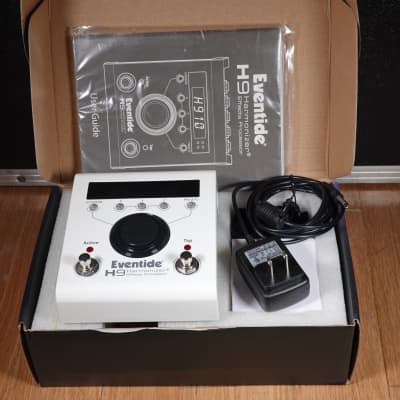

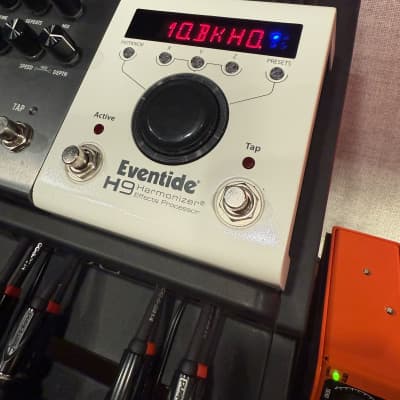

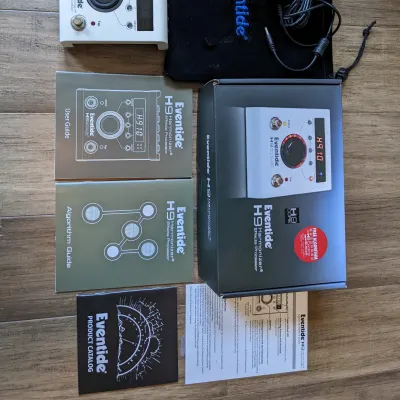

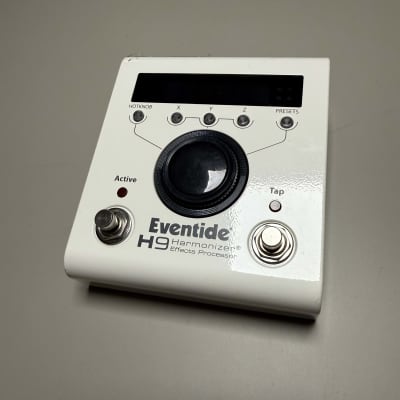

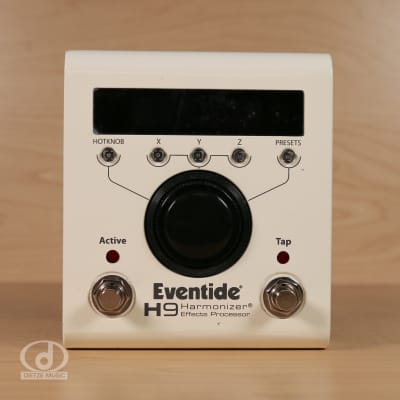

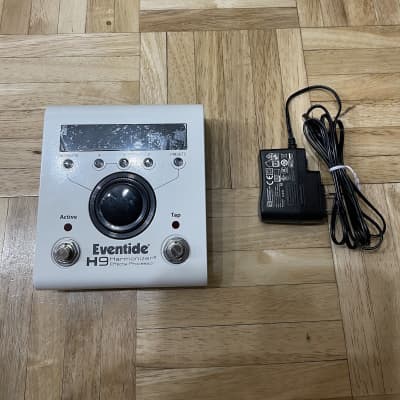

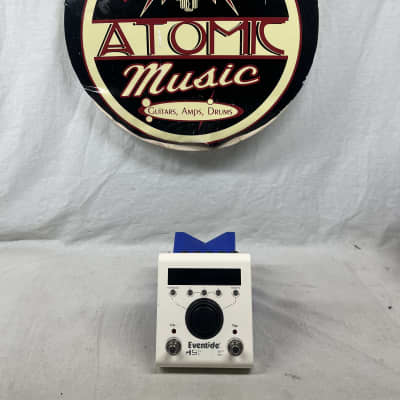

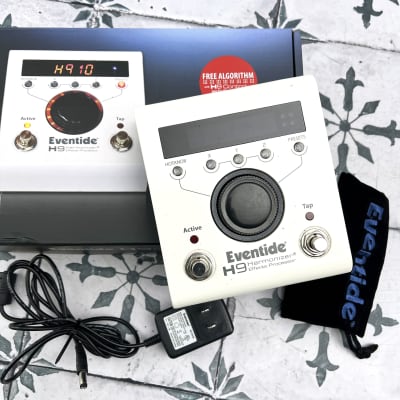

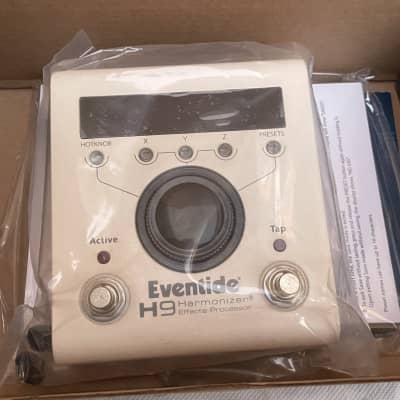

The Eventide H9 Core is a multi-effect guitar pedal that can house effect algorithms from Eventide's ModFactor, PitchFactor, TimeFactor, and Space stompboxes. It also stores its own exclusive algorithms. The pedal features a single-knob interface for editing every effect parameter, preset, and system setting. Additionally, it can be controlled via Bluetooth with an iPod, iPhone, iPad, or computer equipped with the free H9 Control app.

Specifications:

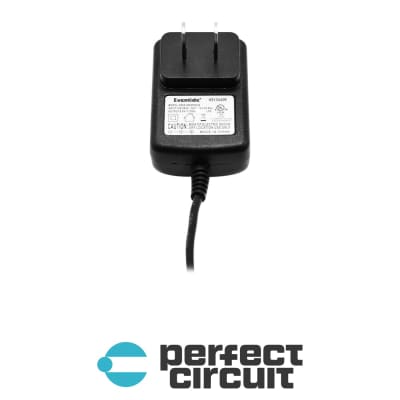

- Connections: 2 x 1/4" TS (6.35 mm) inputs, 2 x 1/4" TS (6.35 mm) outputs, 1 x 1/4" (6.35 mm) expression pedal input, 1 x DIN 5-pin MIDI input, 1 x DIN 5-pin MIDI output, 1 x USB 2.0 mini-B port, 1 x 9 VDC power jack (500 mA, center-pin positive)

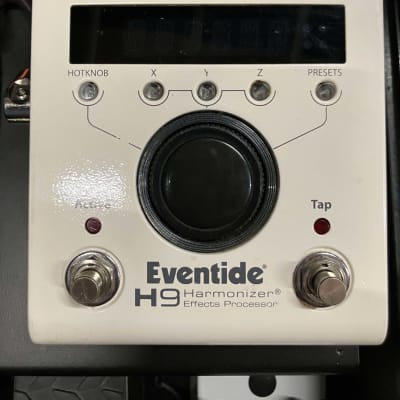

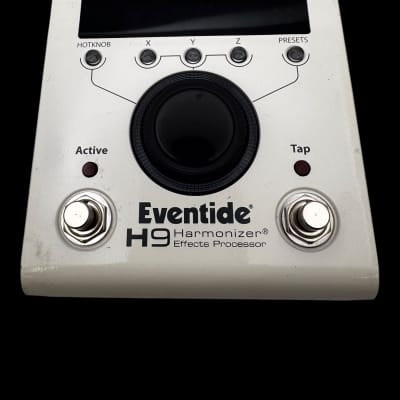

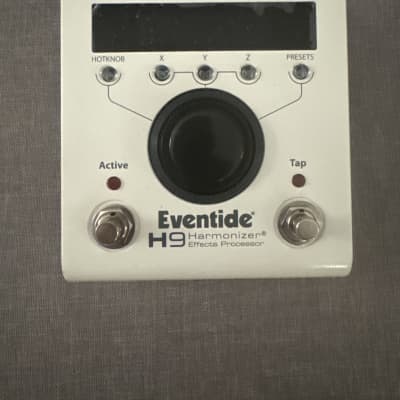

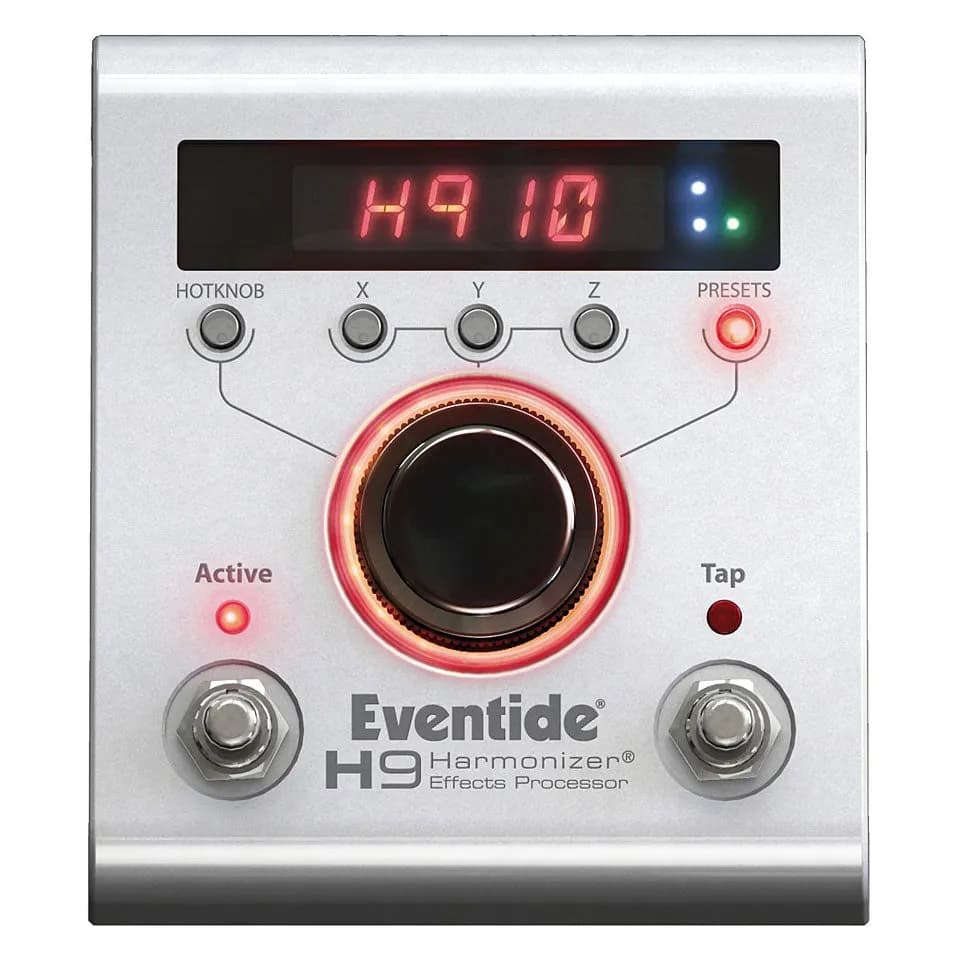

- Controls: 1 x Active switch, 1 x Tap Tempo switch, 1 x Master Control knob, 1 x Hotknob button, 1 x X button, 1 x Y button, 1 x Z button, 1 x Presets button
- Effects & Controls: PitchFactor: H910/H949, one additional algorithm of your choice
- Impedance: Input - 600 KOhms (mono or stereo), Output - 470 Ohms, Recommended Load - 10 kOhms or greater
- Package Weight: 2.5 lb
- Box Dimensions: 10.7 x 7.2 x 3.1"

The H9 Core offers studio-quality sound, stereo I/O, and full MIDI compatibility. It comes preloaded with 25 presets and more presets are available via the H9 Control app.
