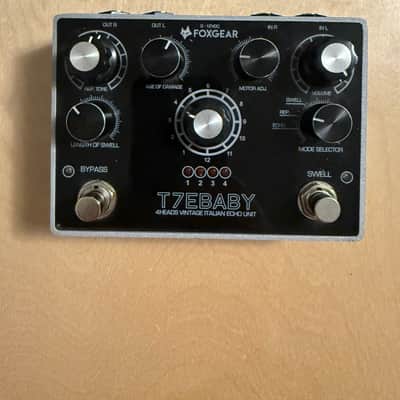

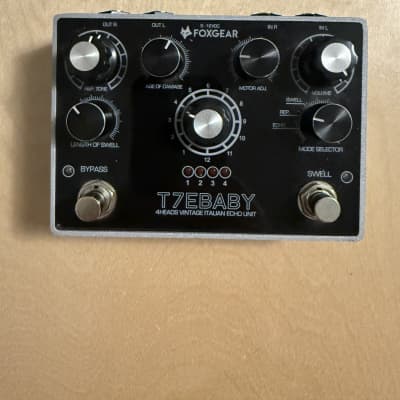

T7E Baby

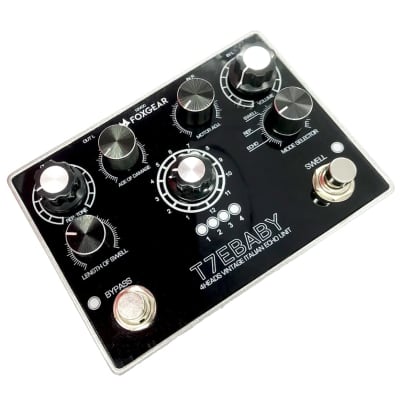

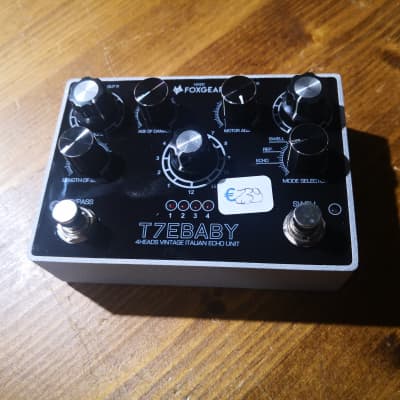

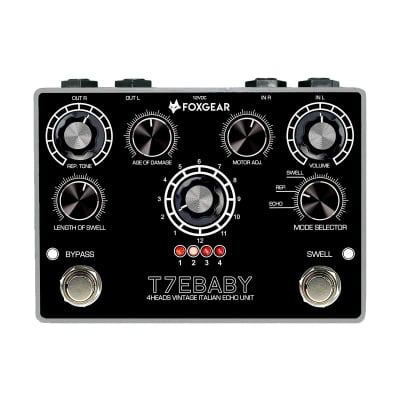

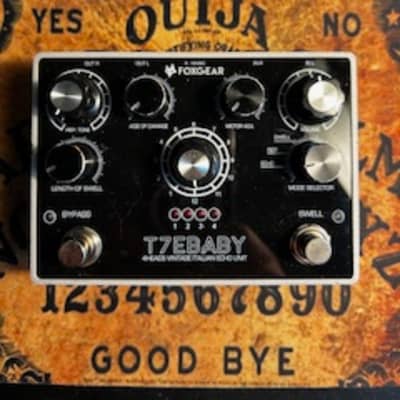

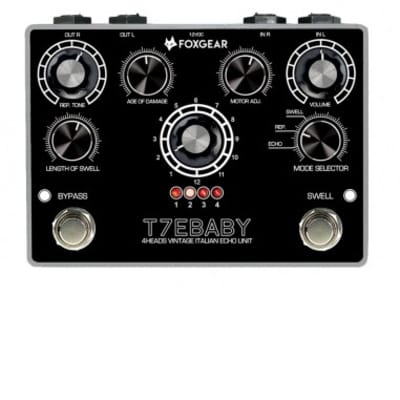

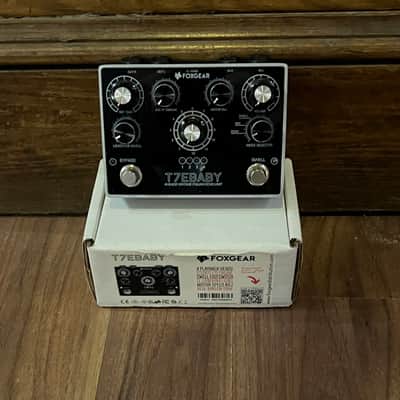

The T7E Baby by Foxgear is a stereo vintage echo pedal that expands the features of the "Binson-inspired" circuit, offering a complete palette of options similar to the old Binson Echorec T7E. Its technical specifications and features include:

- Size: The enclosure is compact, measuring only 3.5” x 5” (9 x 13cm), making it pedalboard-friendly.
- Connections: Equipped with full stereo input and output, the T7E Baby features an internal stereo engine that produces an outstanding and lush ambient tone with a 3D effect.
- Switching: It has two footswitches for true bypass assisted by relay and to immediately recall the swell mode (reverb) for different presets for ambient/echo tone.
- Motor Speed Adjust: Allows for an increase in the overall delay time, providing over 880ms of long, lush delay while keeping the 4 heads in sync.
- Working Mode Selector: Offers three operating modes - Echo, Rep, and Swell

• allowing for different delay and feedback settings.
  - Heads Combinations: The main selector allows users to choose the head/combination of heads, with 4 red LEDs indicating the head/combination in use.
  - Stereo Engine: Provides a beautiful 3D effect when engaged, creating a stereo signal with remarkable spatial depth.

Technical Specifications:
- Power In: 12VDC (negative TIP)
- Consumption at 9V: 140mA
- Delay Time: H1: 86ms, H2: 172ms, H3: 258ms, H4: 344ms
- Input Impedance: ≤1M Ohm
- Output Impedance: ≤10K Ohm
- Dimensions: 90mm x 127mm x 30mm
- Weight: 0.5Kg (1.1lbs)

The T7E Baby is designed in Italy and handmade in the manufacturer's factory in PRC. It comes with a 5-year product warranty and offers a range of unique features that cater to musicians seeking vintage echo tones.
