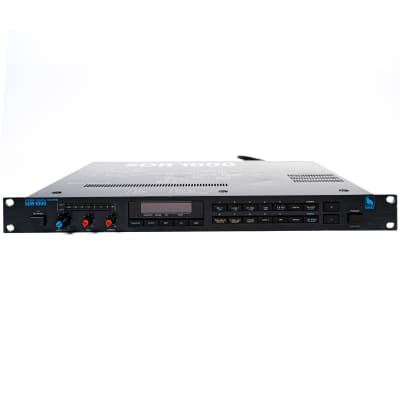

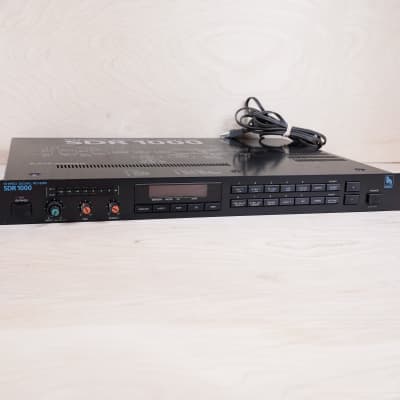

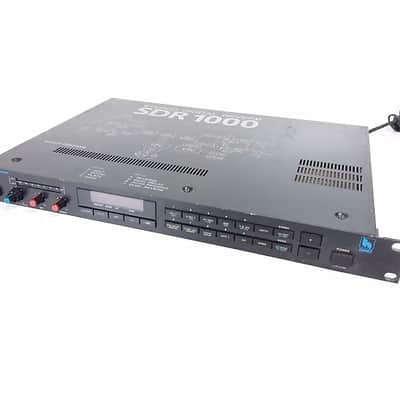

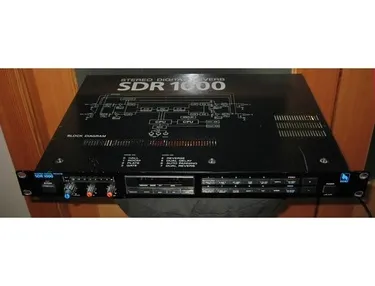

SDR-1000 Stereo Digital Reverb

The Ibanez SDR-1000 Stereo Digital Reverb is a professional-grade unit that redefines digitally-simulated reverberation with true stereo operation and 16-bit digital processing. Here are the technical specifications and features:

- The SDR-1000 is a stereo in/stereo out unit based around a custom-designed DSP (Digital Signal Processor) chip.
- It uses 16-bit linear PCM encoding for the reverb signal, with a 26kHz sampling rate.
- The frequency response is 20Hz-10kHz for reverb and 20Hz-20kHz for dry signal, with a dynamic range in excess of 90dB and total harmonic distortion of less than 0.03%.
- It offers ten reverb modes, including hall, room, plate, gate/gate, reverse/reverse, tap delay/tap delay, panning delay, reverb/reverb, reverb/gate, and reverb/tap delay.
- The unit provides two independently programmable channels, allowing for different parameter values for the same effect or different effects altogether.
- It features 100 preset and 100 user-programmable memories, offering a wide variety of effects suitable for different applications.
- The SDR-1000 incorporates a powerful, user-oriented programming capability, with 12 reverb parameters and programmable four-band EQ for each effect channel and memory.
- The unit offers extensive MIDI flexibility, allowing for MIDI reception, patch mapping, and dynamic MIDI control of reverb.

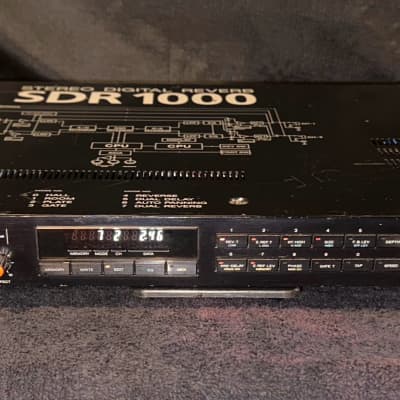

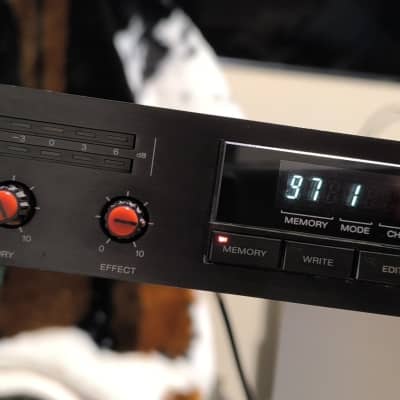

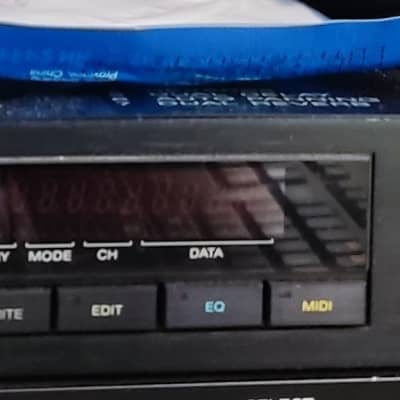

- It includes an eight-digit fluorescent display and LED-keys for easy preset programming and recall.
- The rear panel is equipped with jack and phono inputs and outputs, input/output level switch, footswitch jack inputs, and MIDI connections.

The Ibanez SDR-1000 Stereo Digital Reverb is a versatile and professional- quality unit suitable for a wide range of applications, from home studios to top professional studios.
