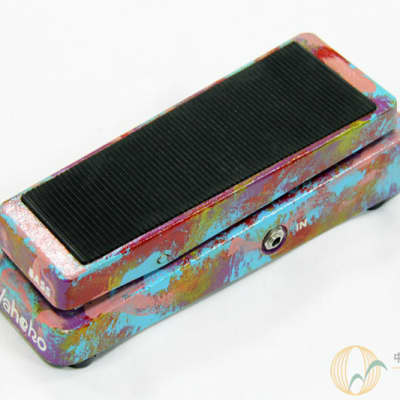

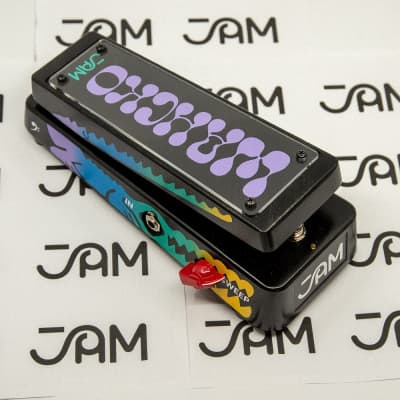

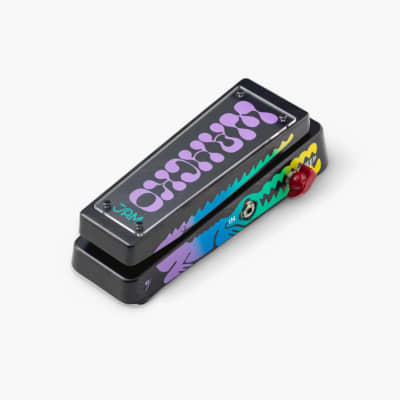

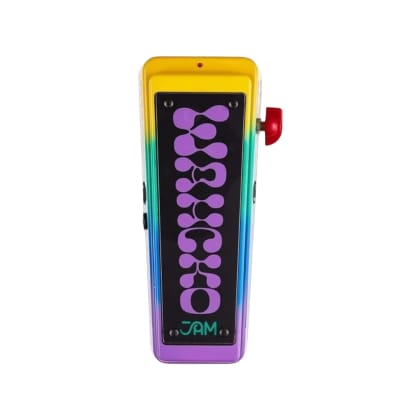

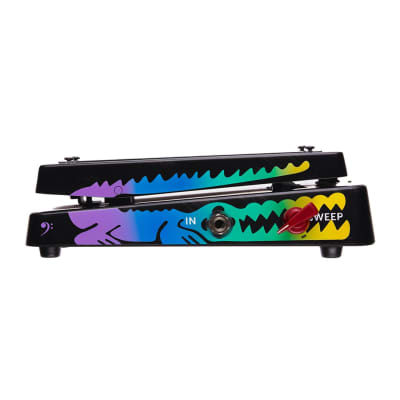

Wahcko

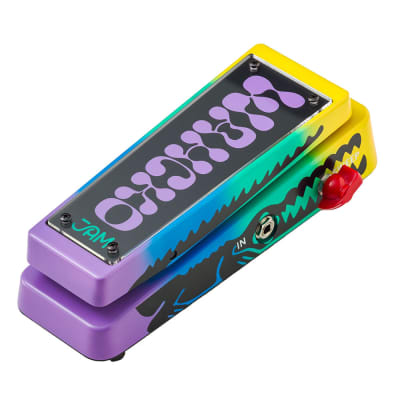

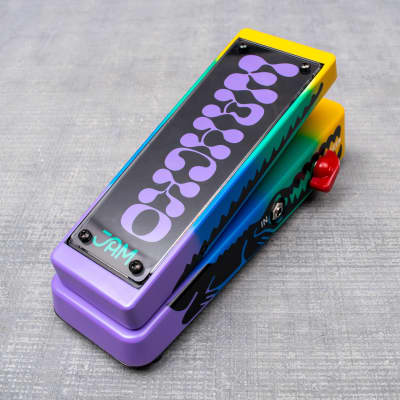

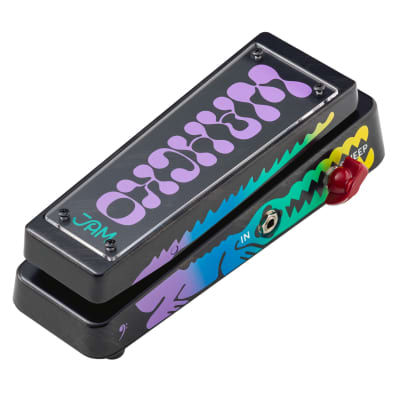

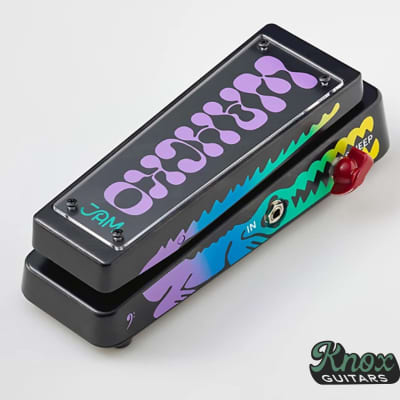

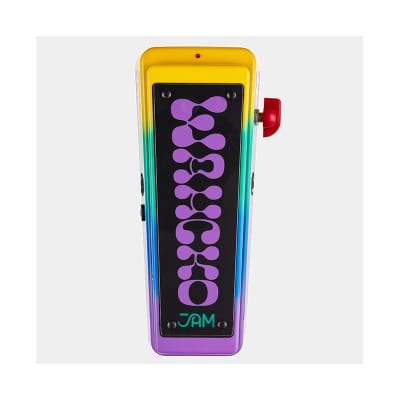

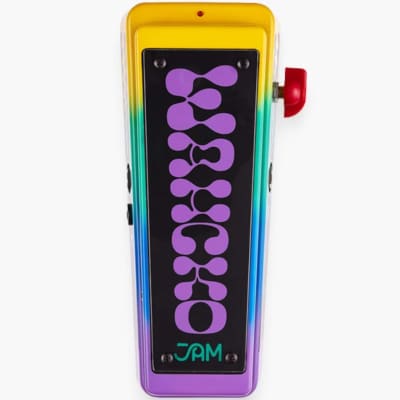

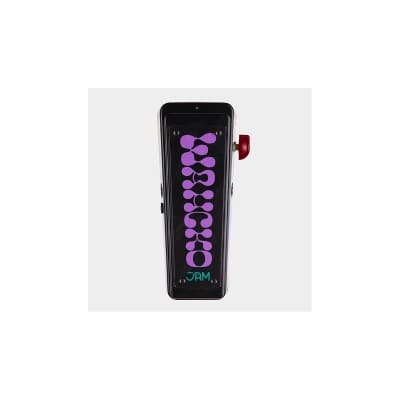

The Wahcko by JAM Pedals is a versatile wah pedal designed to offer a range of features and functionalities for guitarists. Here are the technical specifications and details:

Features:
1. RED Fasel inductor
2. Carbon-Comp resistors
3. 6-position rotary switch for different frequency sweep range
4. Internal trimmer for adjusting the input gain
5. Mini LED indicator for pedal engagement
6. True Bypass

Functionality:
The Wahcko features a bufferless proprietary circuit design that allows for impedance-sensitive pedals, such as germanium fuzz boxes, to be placed after the Wahcko with no issues. It can also be used as a tone-shaping tool, offering six different settings on the rotary switch for experimenting with various tones for lead or rhythm overdriven parts.

Design:

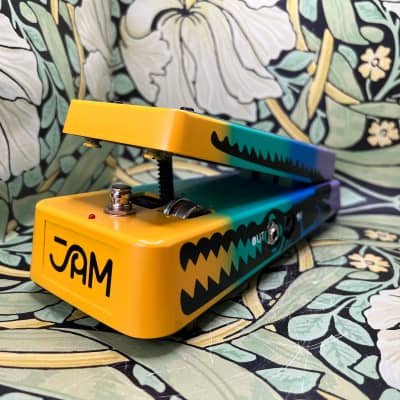

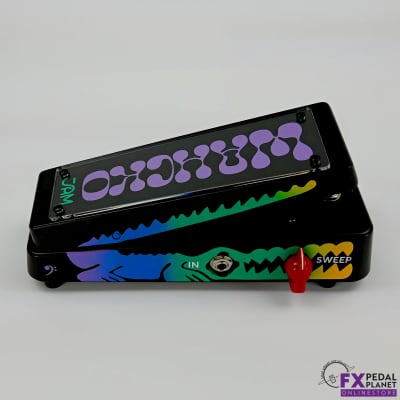

The pedal is designed with a rugged, vintage-inspired aesthetic and is built to provide a vocal, expressive, and versatile wah effect. It is equipped with top-quality electronics and finished with colorful artwork.

Specifications:
- Power: Works with 9V battery or 9V DC adaptor (tip-negative)
- Power consumption: 5 mA
- Dimensions: 25.7 x 12.5 x 7cm / 10 x 4.9 x 2.7 inches
- Weight: 1.7 kg / 3.7 lb

Use Cases:
The Wahcko is suitable for guitarists looking for a high-quality wah pedal with extensive tonal control and the ability to interact well with other pedals. It is also ideal for those seeking a vintage-inspired wah effect with modern functionality.
