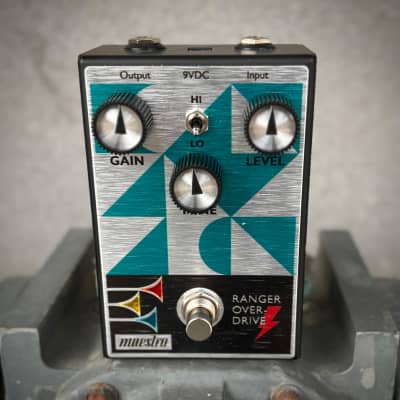

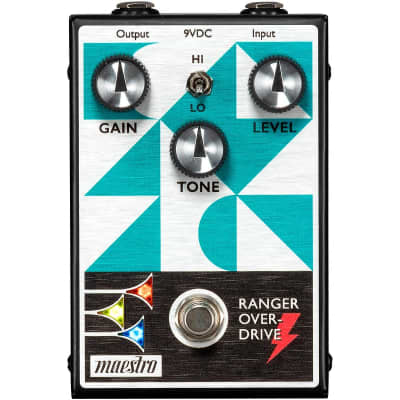

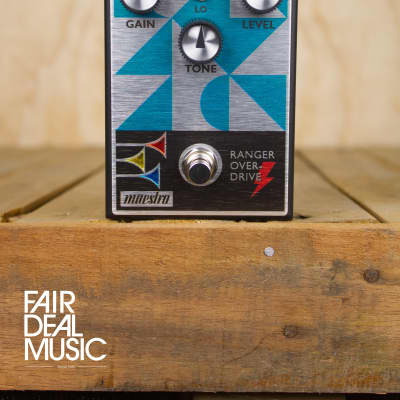

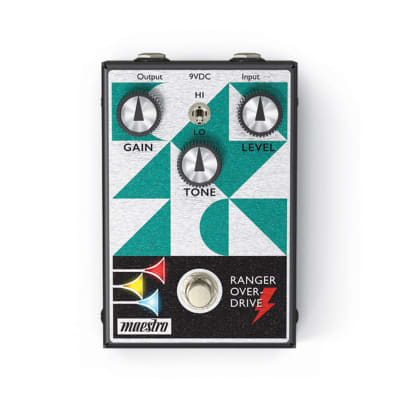

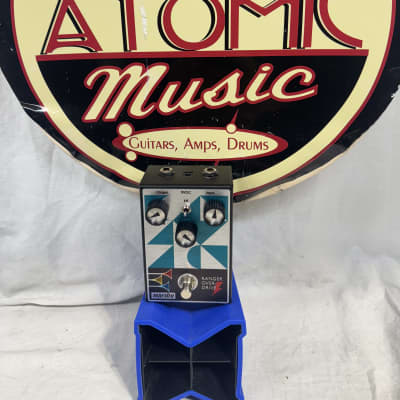

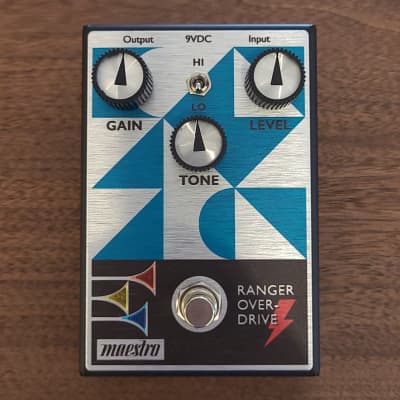

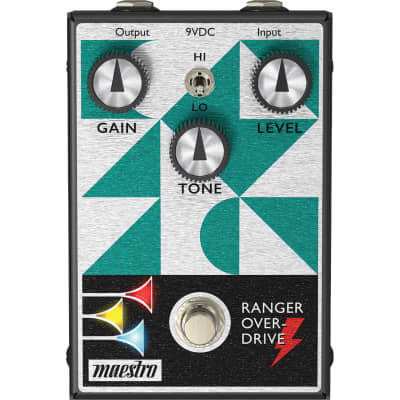

Ranger Overdrive Pedal

The Maestro Ranger Overdrive pedal is a modern, all-analog overdrive pedal inspired by the overdriven tones of vintage tube amps. It features a Mode toggle switch that provides two different tonalities: a warm, expressive, amp- like overdrive and a second tonality that's slightly cleaner and touch- sensitive. The pedal's classic 3-knob layout allows for intuitive adjustment of Gain (amount of overdrive), Tone, and output Level, with plenty of volume on tap to go well beyond unity gain.

The pedal can be used as a boost to hit the input of a tube amp harder for more grit and dirt. It also features a true bypass footswitch that triggers LED lights in the bugles of the Maestro logo when the effect is active.

Technical Specifications:
- Controls: Gain, Tone, Level
- Switches: True Bypass footswitch, Hi/Lo Mode toggle switch

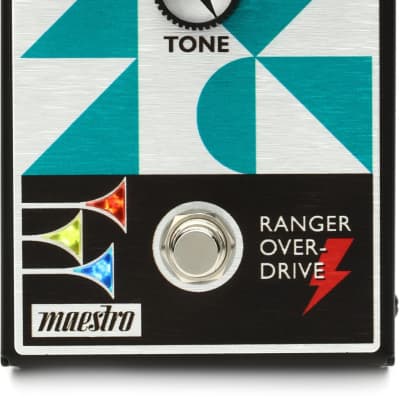

- LED Indicators: Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
- Signal Processing: All-Analog
- Power Requirements: 9V battery or regulated 9-12*VDC power supply (5.5 x 2.1 mm plug, wired center-negative) *Running the pedal at 12V provides increased headroom
- Current Draw: 30.4 mA
- Power On Switch: Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
- Input Impedance: 1 Megohm
- Output Impedance: 1 kOhms
- Switching Type: True Bypass
- Dimensions: 5.04" x 3.45" x 2.50" (128.0 mm x 87.6 mm x 63.5 mm)
- Weight: Net: 1.23 lb. (557.9 gm.) Gross: 1.61 lb. (730.3 gm.)

The Maestro Ranger Overdrive pedal offers musicians a versatile and expressive overdrive effect with precise control over its tonal characteristics and output level.
