LVX

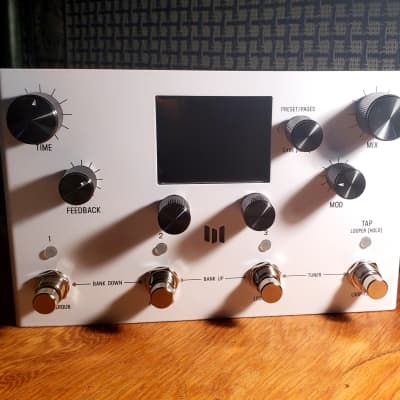

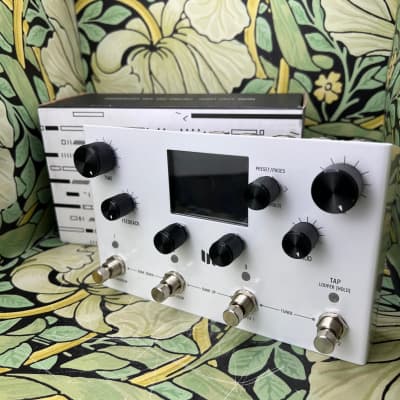

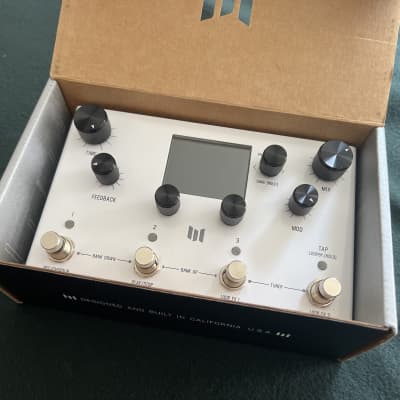

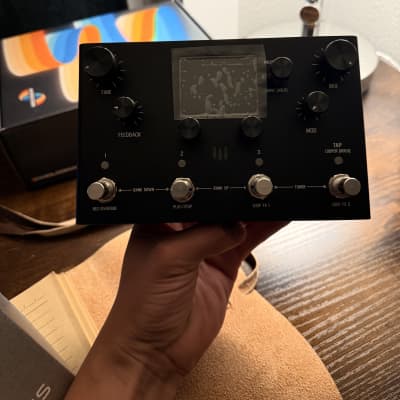

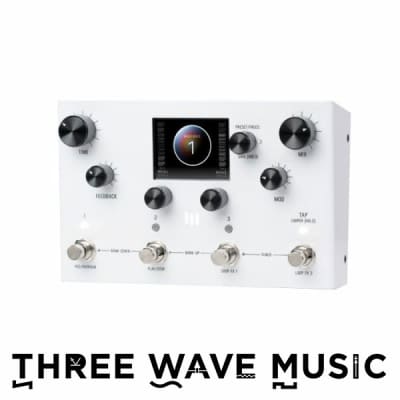

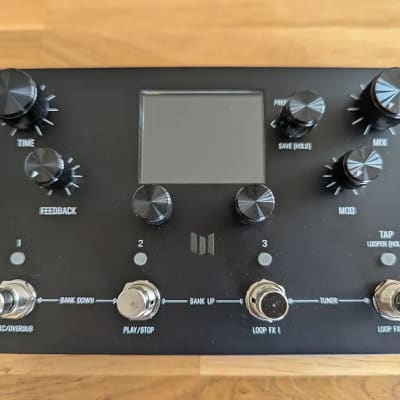

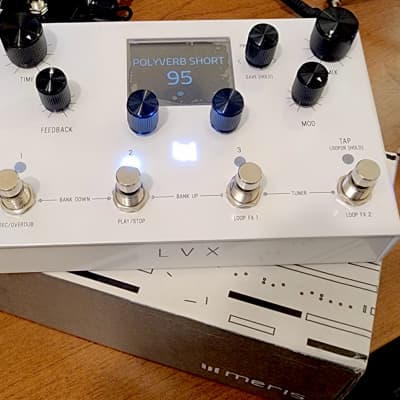

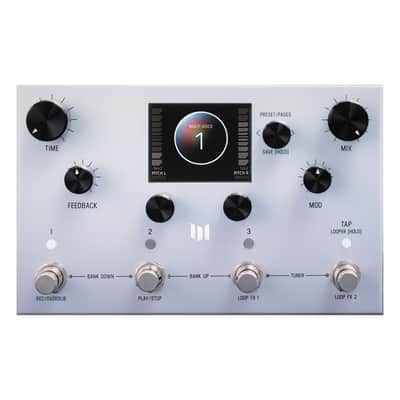

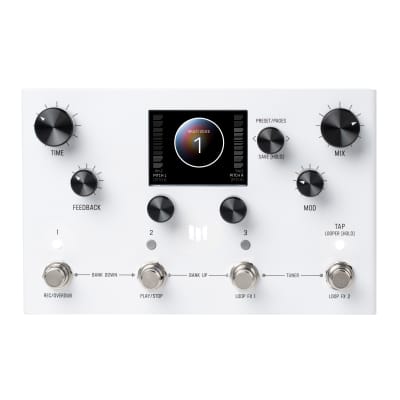

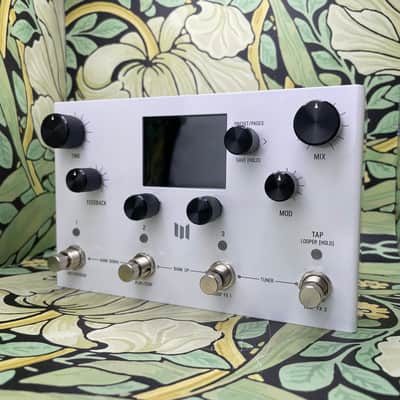

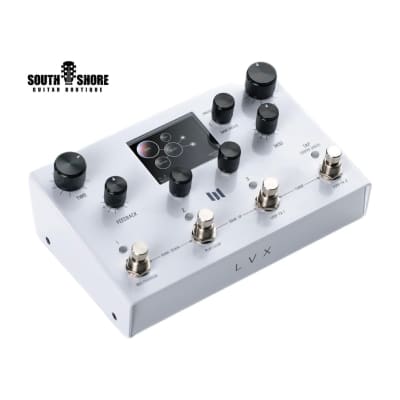

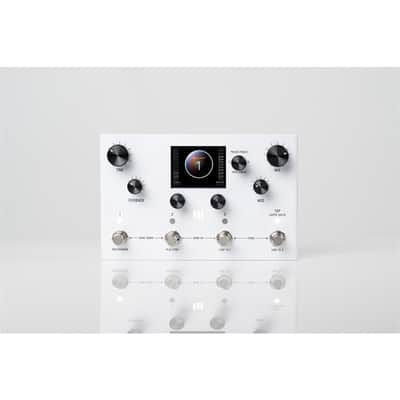

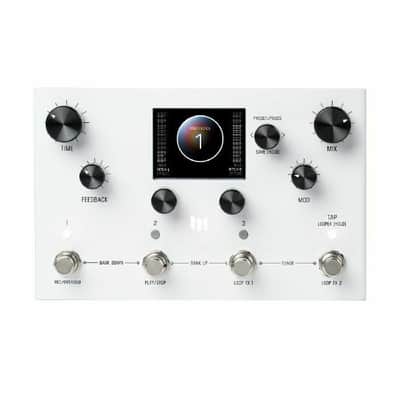

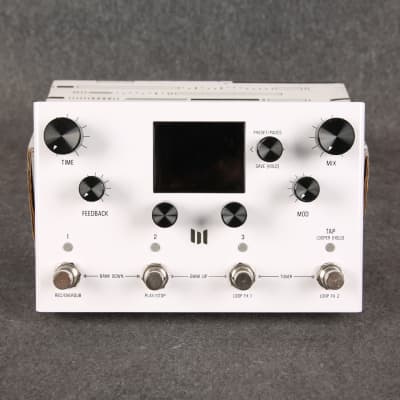

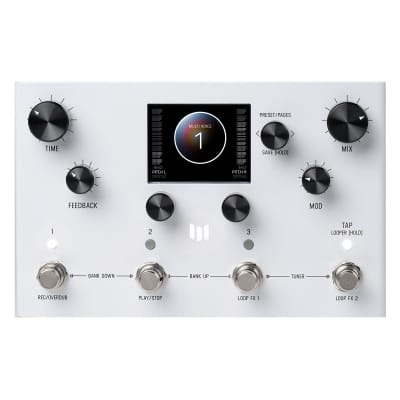

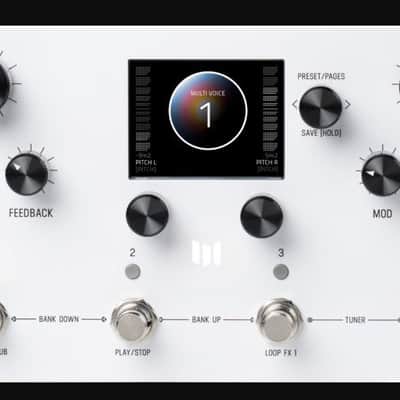

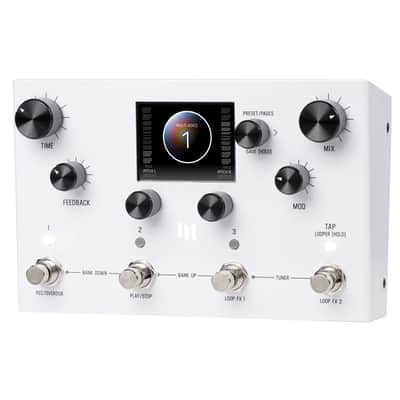

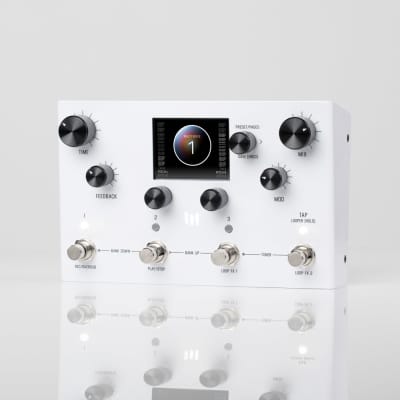

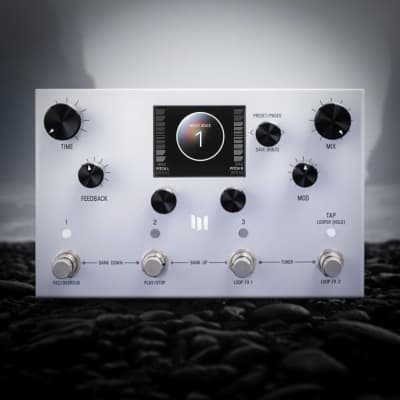

The Meris LVX is a modular delay system pedal designed to offer freedom and flexibility in crafting custom delay sounds. Here are the technical specifications and features:

- Modular Delay System architecture
- 2540 mS of Highly Configurable Dual Delay
- Advanced ARM Processor
- Configurable Delay Structures, Types, and Processing Elements for ultimate customization in delay processing

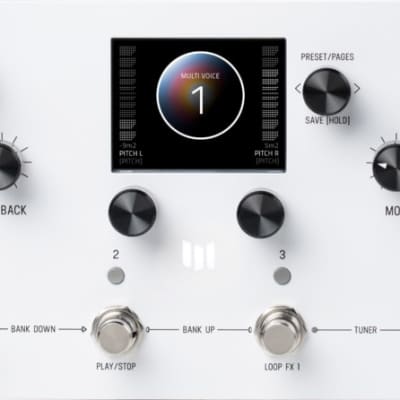

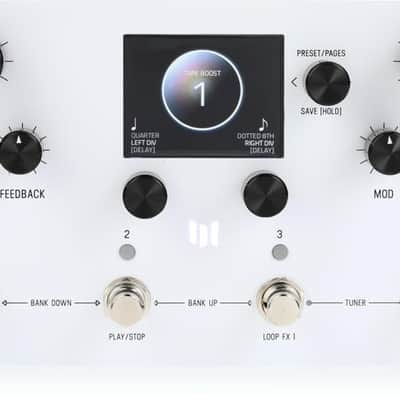

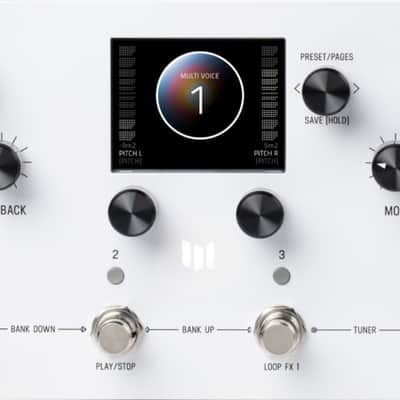

- Intuitive Color Screen based User Interface
- True Stereo 60 Second Looper
- 99 Preset Locations in 33 Banks
- Favourite Preset Bank for instant access to 3 favorite presets
- Instant Access Tuner with configurable Reference and Output mode
- Deep Modifier Section for routing control signals to processing parameters
- True Stereo Processing Elements (Poly Pitch Shifter operates in mono)
- New Processing Elements including Preamps, Granulize, Cassette, Poly Pitch, and more
- Selectable Note Divisions for each side of the stereo Dual Delay
- Digitally controlled Analog mix bus
- Stereo input and output with separate jacks for each
- Switchable input/output headroom level for Instrument or Synthesizer / Line levels
- MIDI In and Out over standard MIDI Din Jacks
- Assignable Expression Pedal control for multiple parameters simultaneously
- Dedicated Expression Pedal Jack
- MIDI implementation for CC Parameters, Preset Send and Receive, beat clock sync
- Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Dimmable screen and logo light
- Designed and built in California, U.S.A.
- Powered by standard 9V power (9V DC, center -, 2.1mm, ~280 mA current draw)

The Meris LVX offers a comprehensive set of features and technical specifications for creating and customizing delay effects, making it a versatile tool for musicians and sound engineers.
