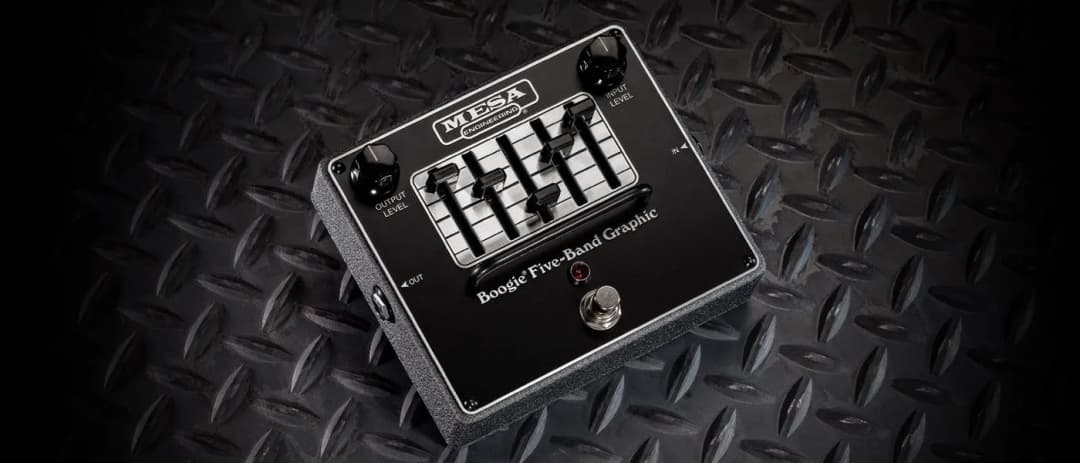

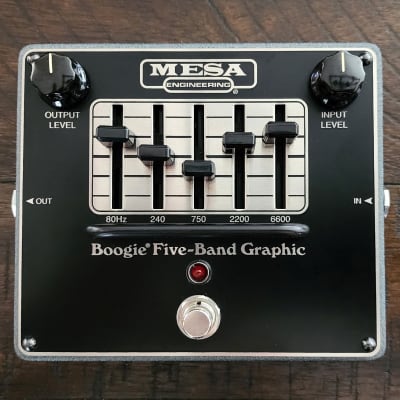

The Mesa Boogie Five-Band Graphic EQ pedal is a versatile tool designed to provide precise control over the guitar's tone. Here are the technical specifications and features:
- Dimensions: 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)
- Weight: 1.6 lbs (725.7g) with battery, 1.5 lbs (680.4g) without battery
- Power: Runs on one 9 Volt battery (18mA draw) or can be powered by a
standard DC Wall Transformer
- True Bypass Switching
- Input Impedance: 1M Ohm (500k Ohm minimum)
- Output Impedance: 10k Ohm
- External Power: DC IN Jack accepts a standard 9-Volt DC "wall-wart" power
supply with a negative center plug polarity and a jack size of 2.1mm x 5.5mm
- Features a footswitchable tone option with hard bypass feature
- Provides +/- 12dB of boost or cut in each band of the five slider pots
- Offers the classic "V-Curve" tone setting popular in rock and metal genres
- Equipped with output and input level controls for optimum signal matching
- The curved bar below the sliders protects them from accidental bumping
- Battery Type: 9VDC (one)
- Power Consumption (Current Draw): 9VDC/18mA
The pedal is hand-built in the USA using high-quality materials and is suitable for various musical needs and amplifier brands. It can be used in the front end or in an effects loop to create a unique signature tone. The pedal's long-throw 32mm sliders ensure maximum resolution and finite adjustment, allowing for precise tonal shaping.
Additionally, it is recommended to use a buffer or line driver for longer cable lengths to maintain tonal integrity.
