Graphic G

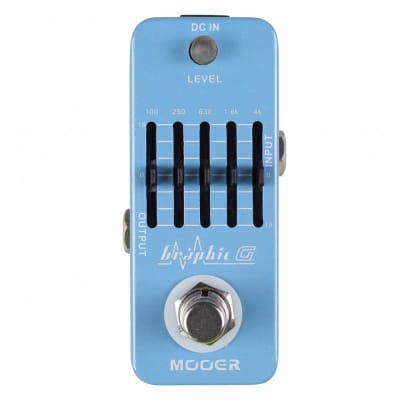

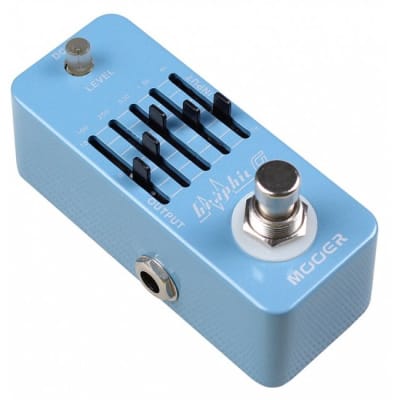

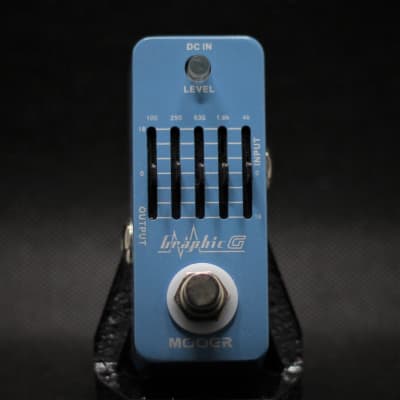

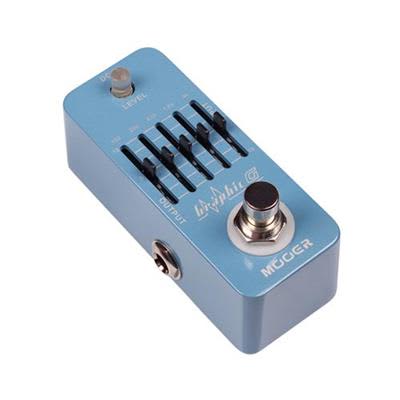

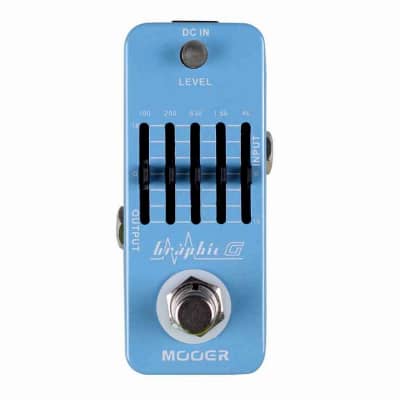

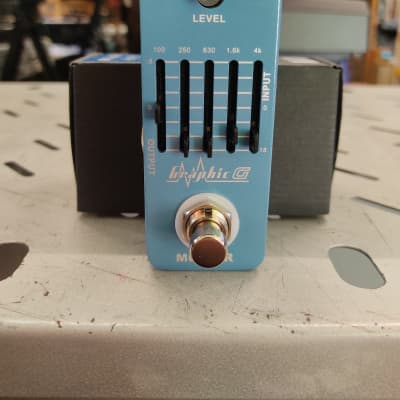

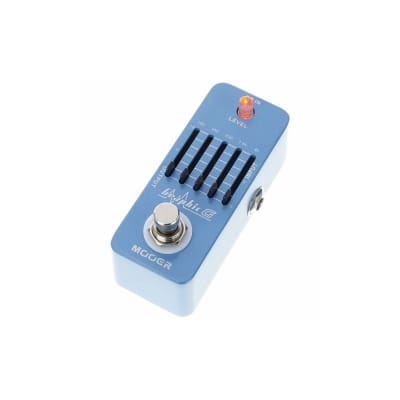

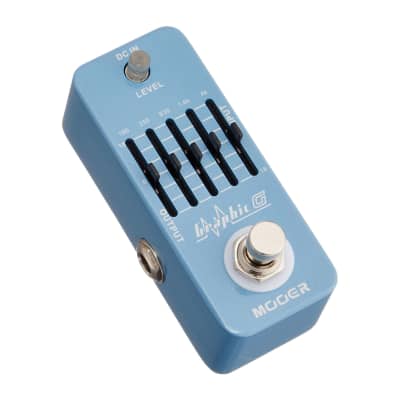

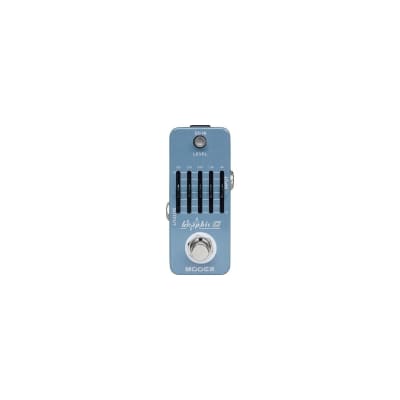

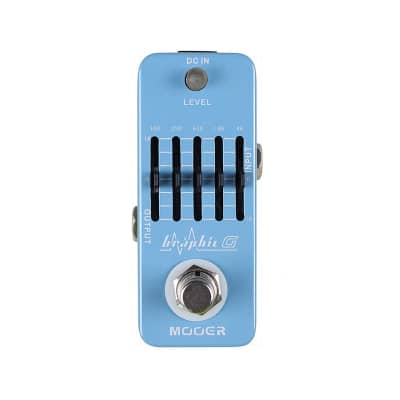

The MOOER Graphic G is the smallest guitar graphic equalizer pedal in the world, featuring a 5-band graphic EQ with master level control. It offers a ±18dB adjustable gain range per band, with frequency centers at 100Hz, 250Hz, 630Hz, 1.6kHz, and 4kHz. The pedal is housed in a full metal shell, providing durability and a compact form factor. Additionally, it features true bypass functionality.

Technical specifications include an input of 1/4” monaural jack with an impedance of 470k Ohms, and an output of 1/4” monaural jack with an impedance of 1k Ohms. The power requirements are an AC adapter of 9V DC with a center minus plug. The dimensions of the pedal are 93.5mm (D) × 42mm (W) × 52mm (H), and it weighs 160g.

The MOOER Graphic G is optimized for guitar use and provides precise control over the instrument's sound through its graphic equalization capabilities.
