MF Ring

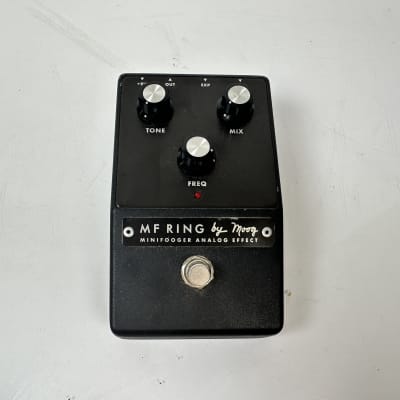

The Moog Minifooger MF Ring is a 100% analog ring modulator pedal designed for guitar and bass. Its unique tone voicing circuit allows for a wide range of modulated behaviors, from octaves and choral dissonance to harmonic undertones and synthesized lead lines. The pedal features a frequency control with an oscillator range of 90Hz to 1.5KHz nominal, extendable up to 12KHz with expression control. The signal path is entirely analog, and it utilizes true bypass for clean signal when disengaged.

Technical Specifications:
- Signal Path: 100% Analog
- Bypass Type: True Bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast aluminum
- Dimensions: D=5.75” (14.4 cm) W=3.25” (8.3 cm) H=2.25” (5.8 cm)
- Frequency Control: Oscillator range is 90Hz - 1.5KHz nominal; Max with expression 12KHz

The MF Ring also features an expression pedal input for hands-free control of the frequency, enabling sound sweeps, pitch shifting effects, and playing between two scales on the fly. Additionally, it can be powered by a battery, offering portability and flexibility in usage.
