Bitmap 2

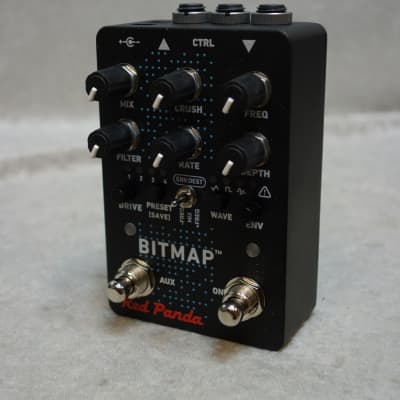

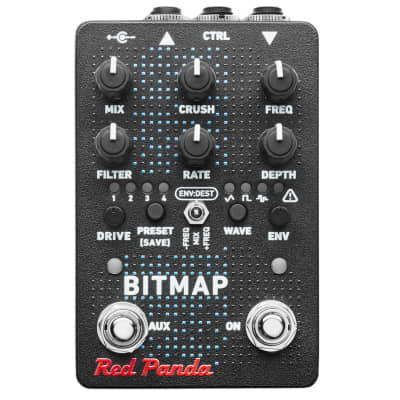

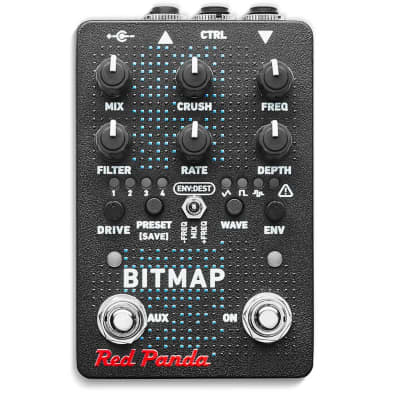

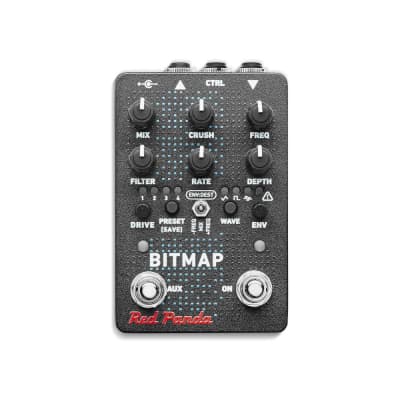

The Red Panda Bitmap 2 is a versatile bitcrusher pedal designed for guitar, bass, synthesizers, drum machines, and other instruments or line-level sources. Here are the technical specifications and features:

Technical Specifications:
- Size: 3.05" x 4.75" x 2.5"
- Input Impedance: 1 MΩ
- Output Impedance: < 1 kΩ
- Bypass: Analog buffered
- Power: 9 VDC, center negative
- Current: 250 mA

Features:
- Fractional bit reduction from 24-bits down to 1-bit
- Sampling rate reduction from 48 kHz down to 110 Hz
- Sample-rate modulation with triangle, square, and random waveforms
- Adjustable wavefolding and waveshaping functions
- Mix control to maintain bass or add subtle crushing
- Envelope control over sampling rate or mix
- Drive control to accommodate single or dual coil pickups and line-level signals
- 4-pole lowpass filter
- Stereo input/output (TRS)
- Soft touch bypass (momentary or latching), user replaceable
- Aux. footswitch assignable to tap tempo or preset selection
- Assignable expression pedal, remote switch, remote tap, or MIDI port
- Additional parameters via MIDI (USB or TRS)
- MIDI clock synchronization
- Presets (4 on front, 127 via MIDI)
- Web-based editor for editing presets and accessing hidden parameters

The Bitmap 2 is designed and assembled in the USA and requires a 9V 250 mA center negative power supply (not included).
