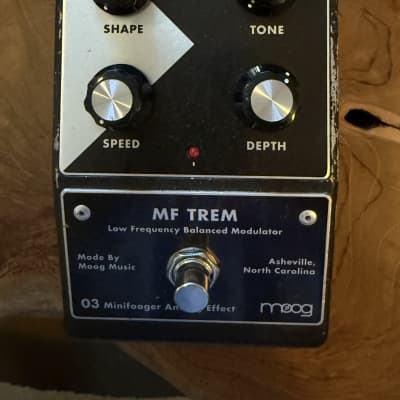

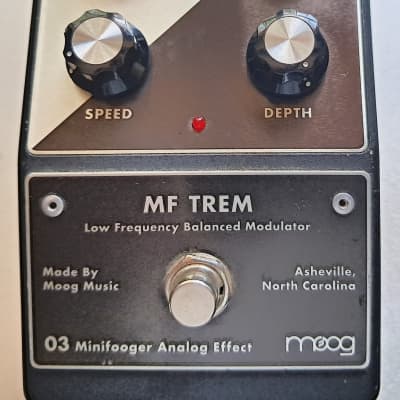

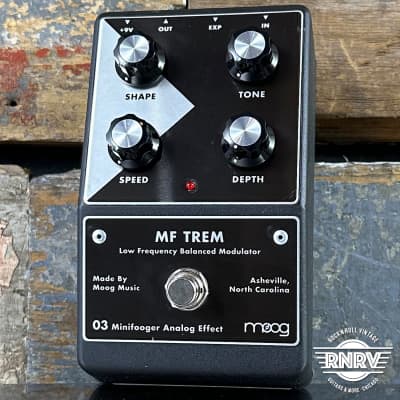

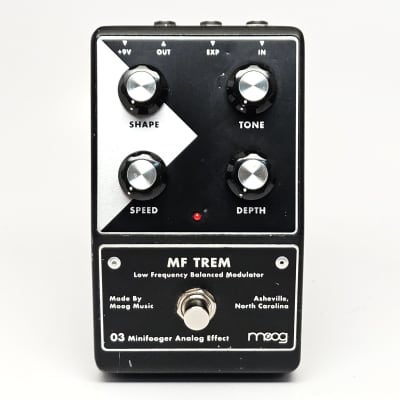

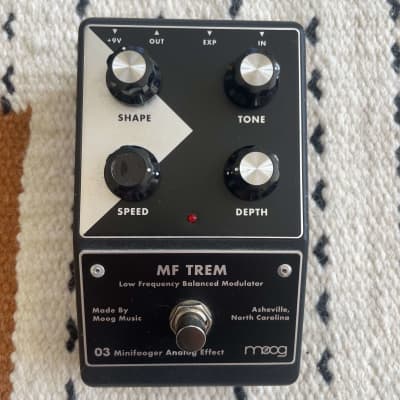

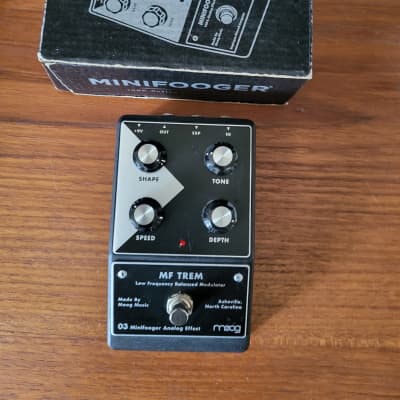

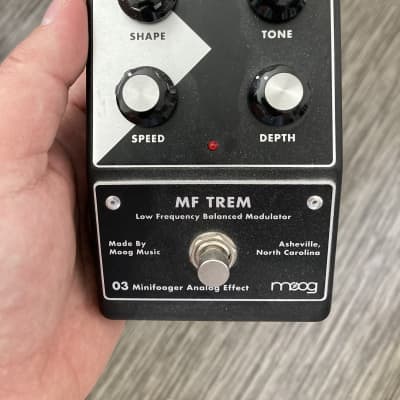

Minifooger MF Trem v2 by Moog

The Minifooger MF Trem v2 by Moog is an analog tremolo pedal designed around a balanced modulator and Sub Audio VCO, offering a wide range of tremolo effects based on phase cancellation and addition. The pedal's unique design allows for the creation of classic optical and hard tremolo effects that are reactive to harmonic content. Additionally, it can produce lush phasing and chorus effects when the depth control is increased.

Key Features:
- Shape Control: Sweeps between modulation waveshapes, allowing for the creation of optical tremolo sounds, abrupt and percussive behavior, and reverse effects.
- Speed Control: Sets the overall tremolo rate, with slower settings producing swirling, lush effects and higher settings resembling a rotary speaker.
- Depth Control: Adjusts the subtlety of the tremolo effect, with increased depth causing phase cancellation and addition effects.
- Tone Control: Affects the tremolo signal, leaving the dry signal untouched, and can be used to dial in sounds that impact only low frequencies or shape classic rotary swirl and phase-like sounds.
- Expression Pedal Input: Assigned to control tremolo speed for swells and transitions between high and low settings.

Technical Specifications:
- Signal Path: 100% Analog
- Bypass Type: True bypass
- Power: +9VDC
- Weight: 18oz (0.5kg)
- Enclosure: Cast aluminum
- Dimensions: D=5.75” (14.4 cm) W=3.25” (8.3 cm) H=2.25” (5.8 cm)
- LFO Speed: 0.6Hz to 12Hz, with Shape in Mid-position
- Tone Control: 165 Hz - 20KHz Lowpass Filter 6dB/Octave (wet signal only)
- Expression: Controls Speed (Max Input level +5VDC)
- Input Impedance: 1 MegaOhm
- Output Impedance: 200 Ohm Max
- Current: 11mA

The Minifooger MF Trem v2 is designed to perform with any guitar, amp, or bass guitar configuration, and it reacts musically to playing dynamics, chord positioning, and harmonic content. Additionally, it features true bypass and is suitable for a wide range of musical applications.
