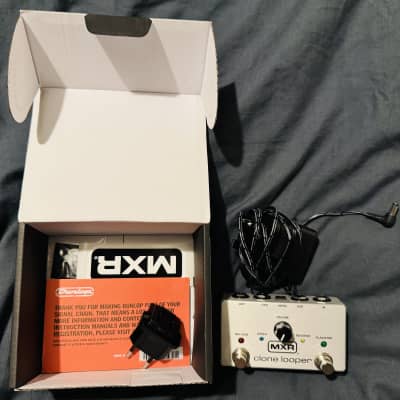

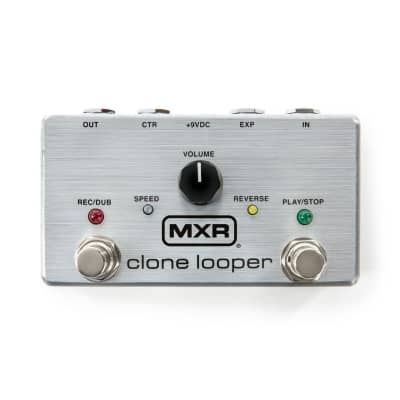

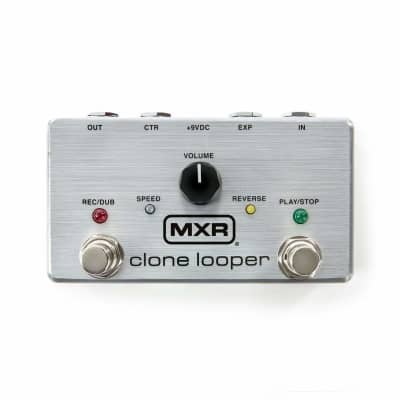

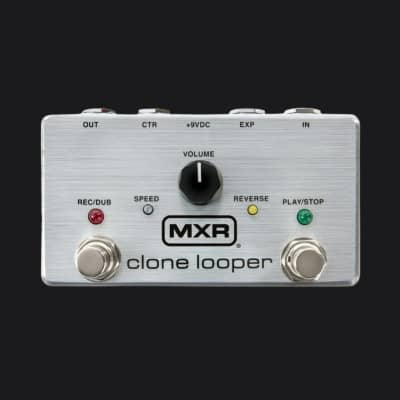

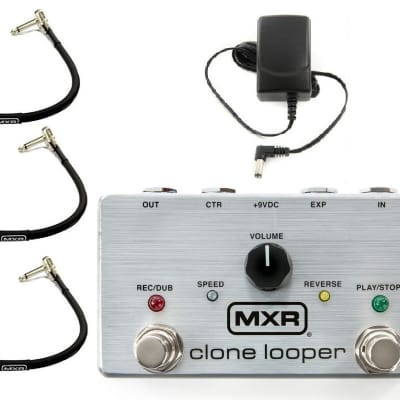

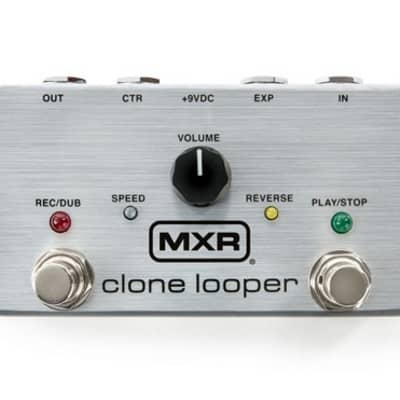

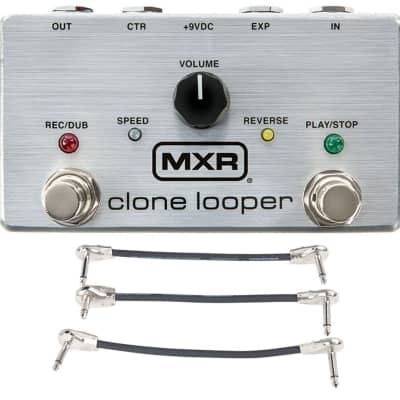

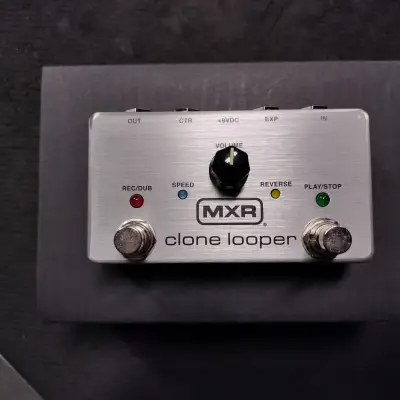

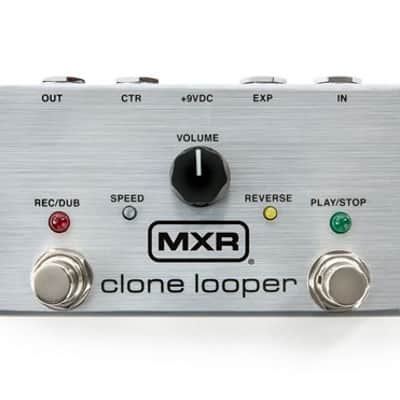

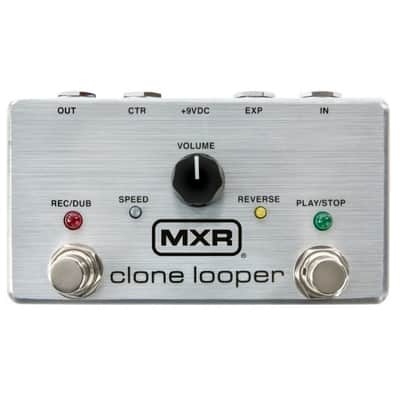

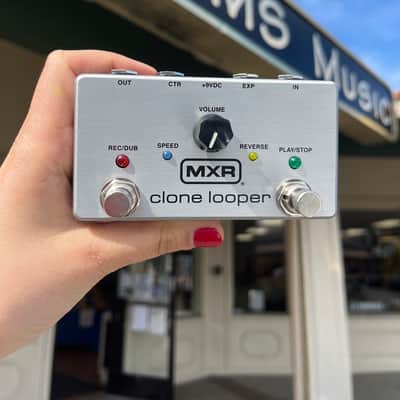

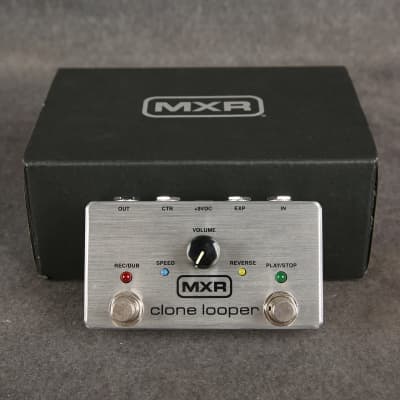

M303 Clone Looper

The MXR M303 Clone Looper pedal is designed for musicians seeking a versatile and high-fidelity looper pedal. It offers the following technical specifications and features:

- Dimensions: 1.96" x 4.37" x 2.5"
- Power Supply: 9V DC (PSU not included)
- Input Impedance: 1MΩ
- Output Impedance: 100 Ω
- Maximum Input Level: +5dBV
- Maximum Output Level: +5dBV
- Frequency Response: 20 Hz to 20 kHz
- Noise Floor: -97 dBV
- Sampling Rate: 44.1 kHz
- Current Draw: 225 mA

Key Features and Functionality:
- The pedal allows for up to 6 minutes of recording time per layer, with no limit on the number of layers that can be recorded.
- It features selectable true or buffered bypass modes to accommodate different signal and tone needs.
- The pedal offers the ability to change the speed of recorded loops to double-speed (3 minutes of recording time) or half-speed (12 minutes) and the option to reverse the loop entirely.
- External control options are available through the CTR jack for tap switch control of loop speed, loop direction, and clear loop functions, as well as the EXP jack for connecting an expression pedal to set output level or engage Play Loop Once mode.

Use Cases:
- The MXR M303 Clone Looper pedal is suitable for guitarists, bassists, and other musicians looking to create layered compositions, practice at home, or perform live with the ability to create and manipulate loops in real-time.

The pedal's robust construction and high-fidelity signal reproduction make it a valuable addition to any musician's setup, offering a wide range of creative possibilities for live performance and studio recording.
