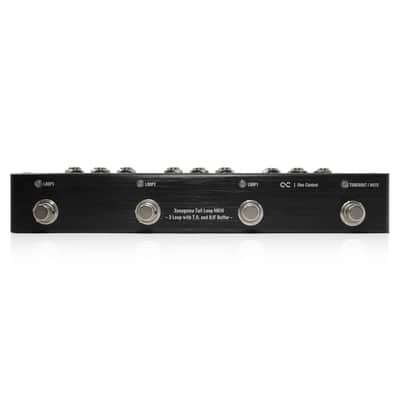

Xenagama Tail Loop MKII

The Xenagama Tail Loop MKII by One Control is a three-channel loop switcher designed for smaller pedal boards. It is equipped with four DC outputs, making it suitable for powering multiple pedals. The pedal features three footswitchable effects loops, each with true bypass to preserve the sound quality. Additionally, it has a separate tuner output, providing flexibility for tuning setups.

The Xenagama Tail Loop MKII allows for easy and effective control of up to three independent effects loops, making it suitable for various use-cases where precise control over pedal effects is required. The compact design, with a depth of only 41mm, ensures that it can fit onto almost any pedalboard setup.

The technical specifications of the Xenagama Tail Loop MKII are as follows:
- Three effect loops
- Four DC outputs (branch from the power terminal)
- Input impedance: 500kΩ (Buffer ON)
- Output impedance: 60Ω (Buffer ON)
- Size: 244Wx37Dx32H mm (excluding protrusions), 244Wx41Dx46H mm (including protrusions)
- Weight: Approximately 310g

The pedal also features a switchable BJF Buffer on the input section, providing precise unity gain setting and ultra-low noise output. The BJF Buffer is designed to maintain the tone's pristine quality in various signal chains, from stage performances to studio recordings.

Overall, the Xenagama Tail Loop MKII offers a compact and versatile solution for managing pedal effects on smaller pedal boards, with a focus on preserving sound quality and providing flexibility in pedal setups.
