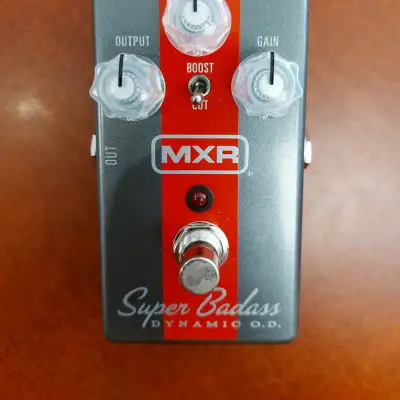

Super Badass Dynamic O.D.

The Super Badass Dynamic O.D. by MXR is a versatile overdrive pedal designed to provide a wide range of overdrive intensities while preserving the existing tonal dynamics of the instrument. The pedal features MOSFET clipping, allowing for a smooth overdrive effect that can be adjusted from a clean boost to vintage high-gain grind.

Key Specifications:
- Input Impedance: > 450 kΩ
- Output Impedance: < 25 kΩ
- Bypass: True Hardwire
- Current Draw: 6 mA
- Power Supply: 9 volts DC

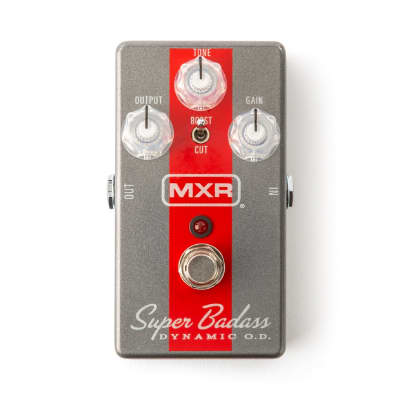

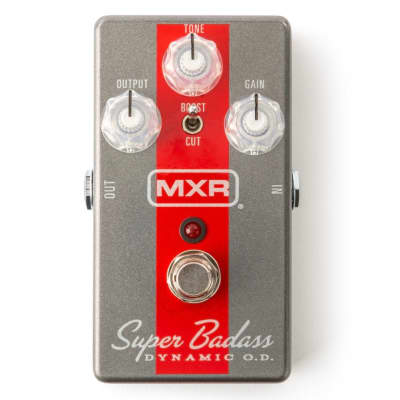

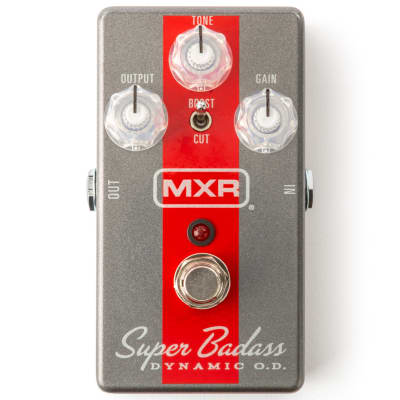

External Controls:
1. Footswitch: Toggles effect on/off (red LED indicates on)
2. BOOST/CUT switch: Sets output mode
3. OUTPUT knob: Adjusts overall output level
4. TONE knob: Adjusts overall EQ
5. GAIN knob: Adjusts overdrive intensity

Basic Operation:
1. Connect instrument cable from instrument to the pedal's INSTRUMENT jack and another cable from the pedal's AMPLIFIER jack to the amplifier's input.
2. Start with knobs set to 12 o’clock.
3. Turn the effect on by depressing the footswitch.
4. Use BOOST/CUT switch to select output mode: BOOST mode increases output level and emphasizes the midrange; CUT mode decreases output level.
5. Rotate OUTPUT knob to adjust overall volume, TONE knob for EQ, and GAIN knob for overdrive intensity.

Power Options:
The pedal can be powered by one 9-volt battery (accessible via battery door on the bottom plate), a 9-volt AC adapter such as the Dunlop ECB003/ECB003EU, or an MXR Brick™ Series power supply.

The Super Badass Dynamic O.D. is suitable for guitarists looking for a versatile overdrive pedal that offers a wide range of tonal options, from clean boost to vintage high-gain grind, while maintaining the instrument's original dynamics.
